Power Supply and Aux Power Headers

The power supply header on the system board connects to the power
supply header labelled P1.
Power Supply header
Pin Signal Name
1 +3.3 V
2 +3.3 V
3 Ground
4 +5 V
5 Ground
6 +5 V
7 Ground
8 PWRGD (Power Good)
9 +5 VSB
10 +12 V
11 +3.3 V
12 -12 V
13 Ground
14 PS-ON# (power supply remote on/off control)
15 Ground

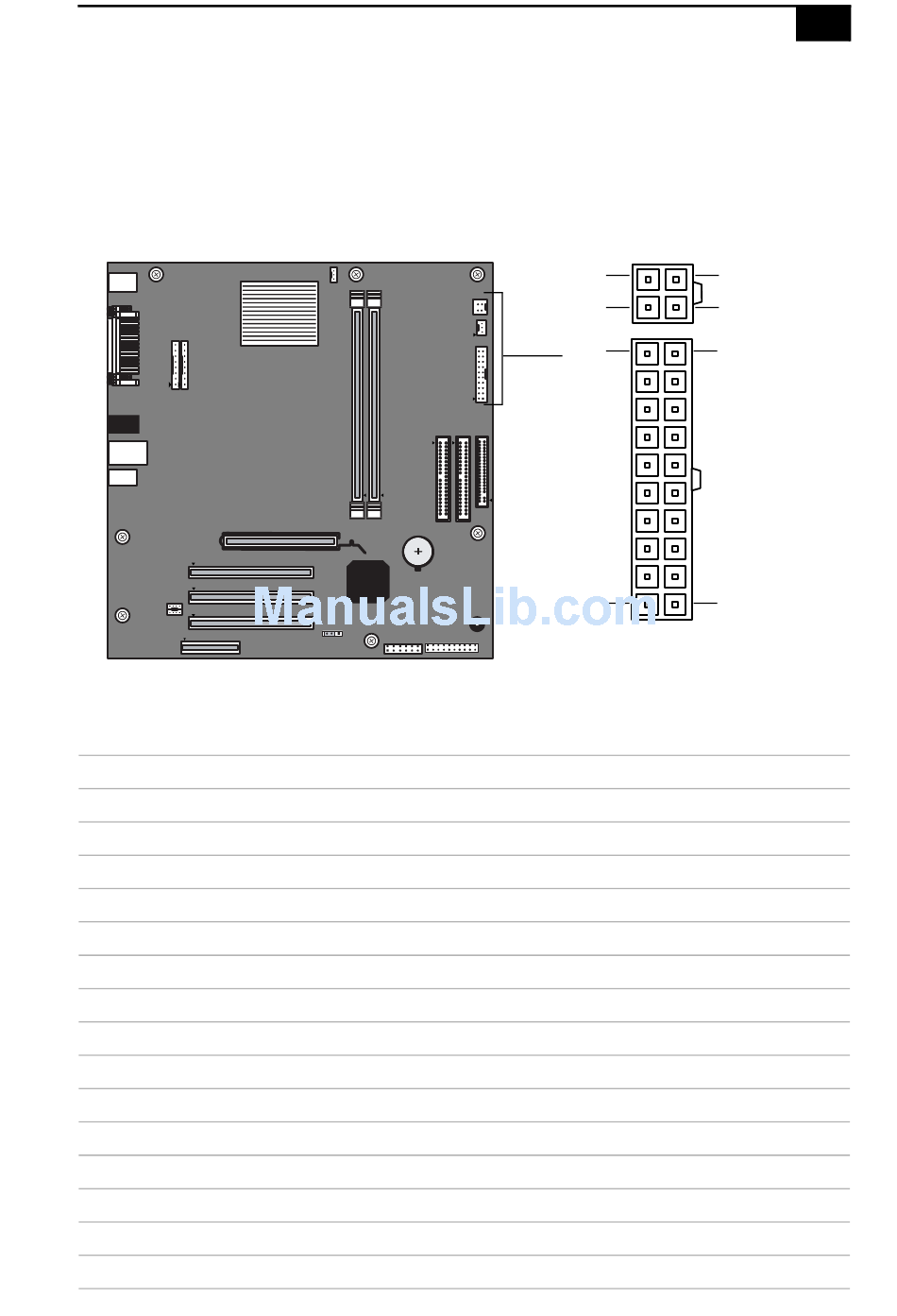

System Board
2 4
1 3
10 20
1 11
53
