Chapter 4 System Board - Sony PCV-RXP-RZP System Reference Manual

Chapter 4
System Board

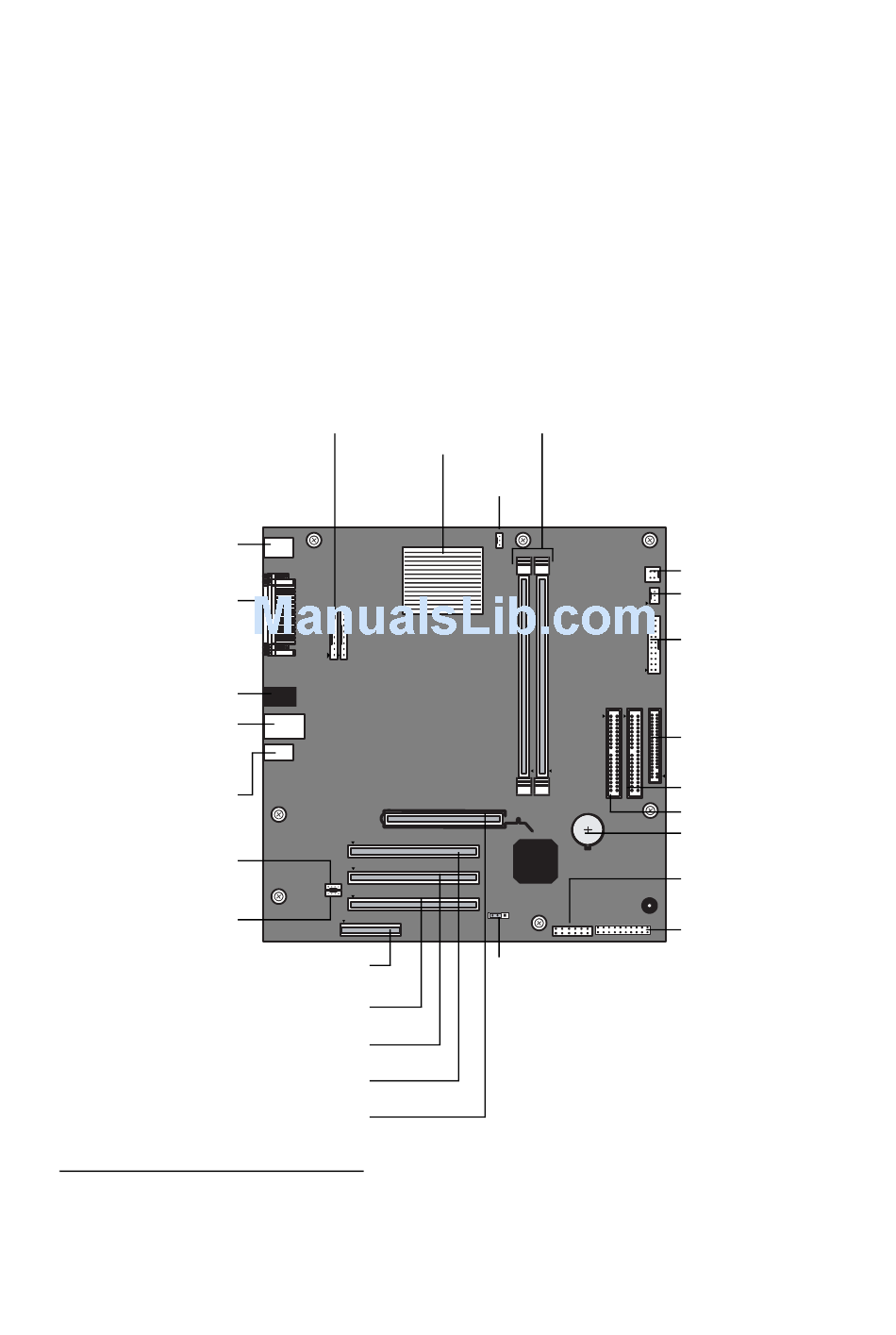

This chapter identifies and describes components on the system board.
Keyboard, Mouse
Printer, Monitor,
i.LINK
USB3, USB4,
S/P DIF Out
USB5, USB6,
Ethernet
Mic In, Line In,
Line Out
CD-In
Aux-In
Slot No. 1 (CNR)
Slot No. 2 (PCI)
Slot No. 3 (PCI)
Slot No. 4 (PCI)
Slot No. 5 (AGP)
*
The CNR slot no. 1 and PCI slot no. 2 are located under slot cover no. 1, 2.
Only one expansion slot can be used at a time.
i.LINK Header
(to front panel)
Processor
*
*
Memory
CPU Fan
CMOS Clear
CPU Power Supply
Power Supply Fan
Power Supply
Floppy Disk
Primary IDE
Secondary IDE
Battery
USB Header
(to front panel)
Front Panel
Header
