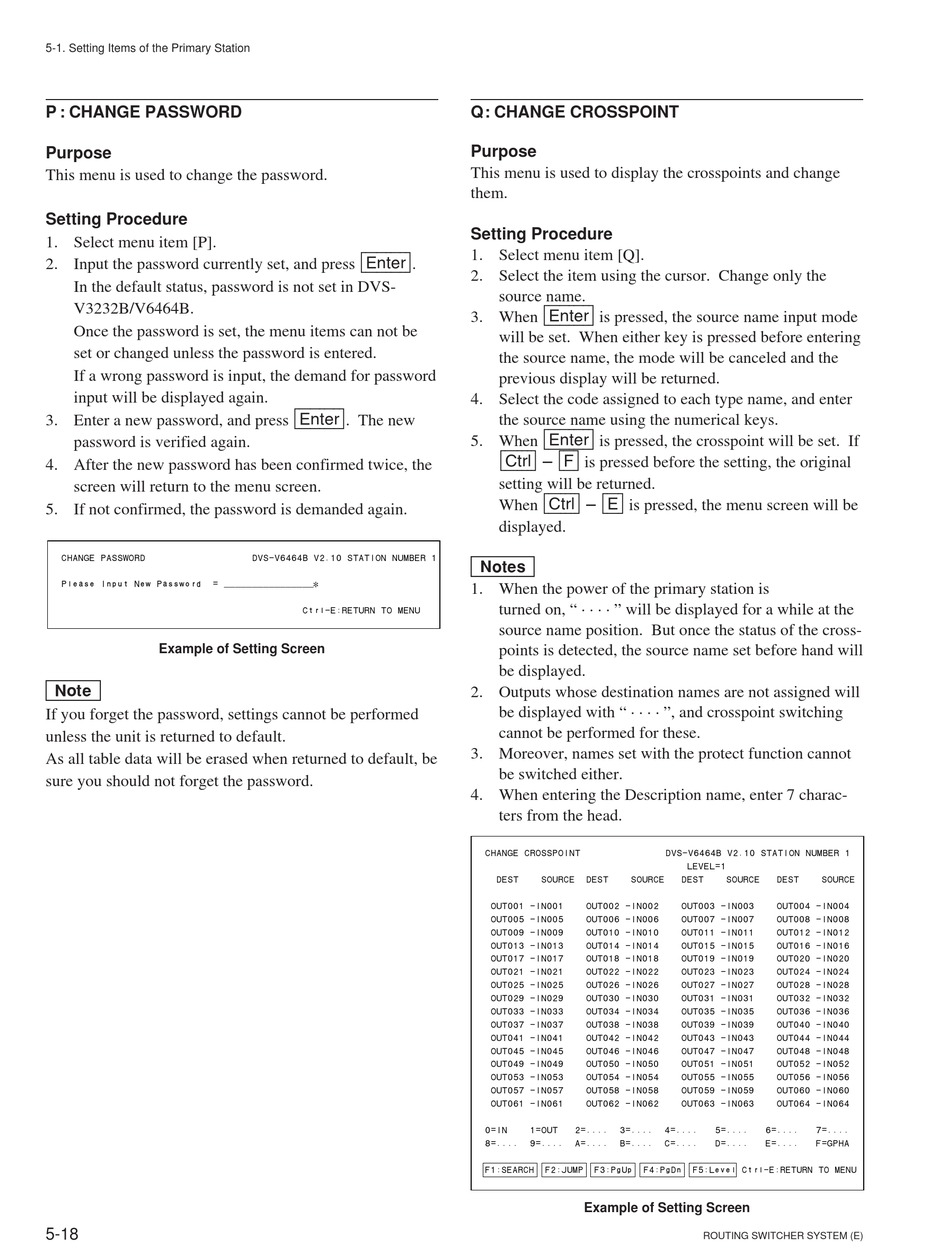

5-1. Setting Items of the Primary Station

P : CHANGE PASSWORD

Purpose
This menu is used to change the password.
Setting Procedure
1. Select menu item [P].
2. Input the password currently set, and press [Enter].
In the default status, password is not set in DVS-
V3232B/V6464B.
Once the password is set, the menu items can not be
set or changed unless the password is entered.
If a wrong password is input, the demand for password
input will be displayed again.
3. Enter a new password, and press [Enter]. The new
password is verified again.
4. After the new password has been confirmed twice, the
screen will return to the menu screen.
5. If not confirmed, the password is demanded again.
CHANGE PASSWORD
Please Input New Password = ________________*
Example of Setting Screen
n
If you forget the password, settings cannot be performed
unless the unit is returned to default.
As all table data will be erased when returned to default, be
sure you should not forget the password.
5-18
DVS-V6464B V2.10 STATION NUMBER 1
Ctrl-E:RETURN TO MENU

Q: CHANGE CROSSPOINT

Purpose
This menu is used to display the crosspoints and change
them.
Setting Procedure
1. Select menu item [Q].
2. Select the item using the cursor. Change only the
source name.
3. When [Enter] is pressed, the source name input mode
will be set. When either key is pressed before entering
the source name, the mode will be canceled and the
previous display will be returned.
4. Select the code assigned to each type name, and enter
the source name using the numerical keys.
5. When [Enter] is pressed, the crosspoint will be set. If
[Ctrl] _ [F] is pressed before the setting, the original
setting will be returned.
When [Ctrl] _ [E] is pressed, the menu screen will be
displayed.
m
1. When the power of the primary station is
turned on, " · · · · " will be displayed for a while at the
source name position. But once the status of the cross-
points is detected, the source name set before hand will
be displayed.
2. Outputs whose destination names are not assigned will
be displayed with " · · · · ", and crosspoint switching
cannot be performed for these.
3. Moreover, names set with the protect function cannot
be switched either.
4. When entering the Description name, enter 7 charac-
ters from the head.
CHANGE CROSSPOINT
DEST SOURCE DEST SOURCE
OUT001 -IN001 OUT002 -IN002
OUT005 -IN005 OUT006 -IN006
OUT009 -IN009 OUT010 -IN010
OUT013 -IN013 OUT014 -IN014
OUT017 -IN017 OUT018 -IN018
OUT021 -IN021 OUT022 -IN022
OUT025 -IN025 OUT026 -IN026
OUT029 -IN029 OUT030 -IN030
OUT033 -IN033 OUT034 -IN034
OUT037 -IN037 OUT038 -IN038
OUT041 -IN041 OUT042 -IN042
OUT045 -IN045 OUT046 -IN046
OUT049 -IN049 OUT050 -IN050
OUT053 -IN053 OUT054 -IN054
OUT057 -IN057 OUT058 -IN058
OUT061 -IN061 OUT062 -IN062
0=IN 1=OUT 2=.... 3=.... 4=....
8=.... 9=.... A=.... B=.... C=....
F1:SEARCH F2:JUMP F3:PgUp F4:PgDn F5:Level Ctrl-E:RETURN TO MENU
Example of Setting Screen
DVS-V6464B V2.10 STATION NUMBER 1
LEVEL=1
DEST SOURCE DEST SOURCE
OUT003 -IN003 OUT004 -IN004
OUT007 -IN007 OUT008 -IN008
OUT011 -IN011 OUT012 -IN012
OUT015 -IN015 OUT016 -IN016
OUT019 -IN019 OUT020 -IN020
OUT023 -IN023 OUT024 -IN024
OUT027 -IN027 OUT028 -IN028
OUT031 -IN031 OUT032 -IN032
OUT035 -IN035 OUT036 -IN036
OUT039 -IN039 OUT040 -IN040
OUT043 -IN043 OUT044 -IN044
OUT047 -IN047 OUT048 -IN048
OUT051 -IN051 OUT052 -IN052
OUT055 -IN055 OUT056 -IN056
OUT059 -IN059 OUT060 -IN060
OUT063 -IN063 OUT064 -IN064
5=.... 6=.... 7=....
D=.... E=.... F=GPHA
ROUTING SWITCHER SYSTEM (E)
