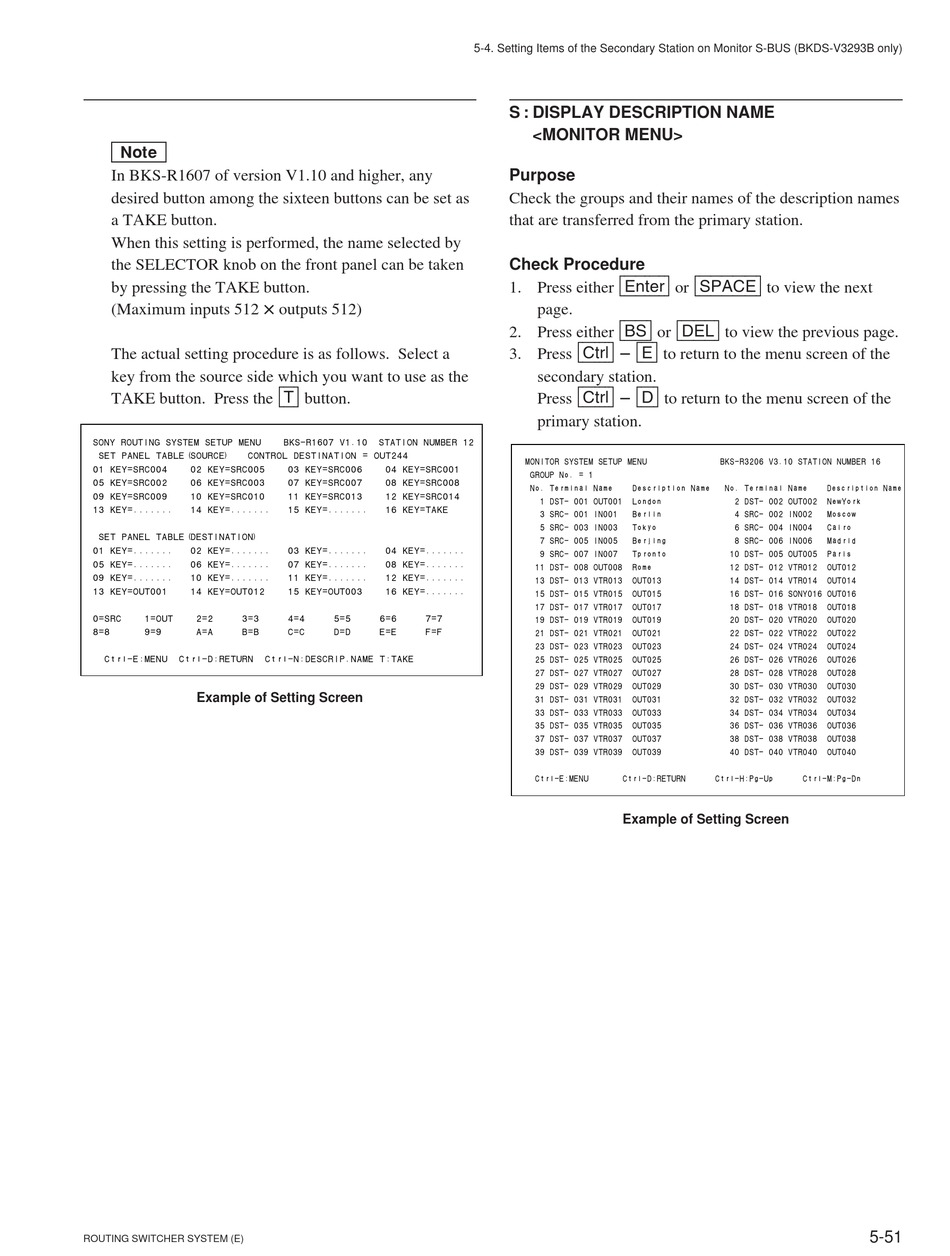

S : Display Description Name <Monitor Menu - Sony BKS-R3202/R3210/R3220 Installation Manual

n
In BKS-R1607 of version V1.10 and higher, any
desired button among the sixteen buttons can be set as
a TAKE button.
When this setting is performed, the name selected by
the SELECTOR knob on the front panel can be taken
by pressing the TAKE button.
(Maximum inputs 512 x outputs 512)
The actual setting procedure is as follows. Select a
key from the source side which you want to use as the
TAKE button. Press the [T] button.
SONY ROUTING SYSTEM SETUP MENU
SET PANEL TABLE(SOURCE) CONTROL DESTINATION = OUT244
01 KEY=SRC004 02 KEY=SRC005
05 KEY=SRC002 06 KEY=SRC003
09 KEY=SRC009 10 KEY=SRC010
13 KEY=....... 14 KEY=.......
SET PANEL TABLE(DESTINATION)
01 KEY=....... 02 KEY=.......
05 KEY=....... 06 KEY=.......
09 KEY=....... 10 KEY=.......
13 KEY=OUT001 14 KEY=OUT012
0=SRC 1=OUT 2=2 3=3
8=8 9=9 A=A B=B
Ctrl-E:MENU Ctrl-D:RETURN Ctrl-N:DESCRIP.NAME T:TAKE
Example of Setting Screen
ROUTING SWITCHER SYSTEM (E)
BKS-R1607 V1.10 STATION NUMBER 12
03 KEY=SRC006 04 KEY=SRC001
07 KEY=SRC007 08 KEY=SRC008
11 KEY=SRC013 12 KEY=SRC014
15 KEY=....... 16 KEY=TAKE
03 KEY=....... 04 KEY=.......
07 KEY=....... 08 KEY=.......
11 KEY=....... 12 KEY=.......
15 KEY=OUT003 16 KEY=.......
4=4 5=5 6=6 7=7
C=C D=D E=E F=F
5-4. Setting Items of the Secondary Station on Monitor S-BUS (BKDS-V3293B only)
S : DISPLAY DESCRIPTION NAME
<MONITOR MENU>
Purpose
Check the groups and their names of the description names
that are transferred from the primary station.
Check Procedure
1. Press either [Enter] or [SPACE] to view the next
page.
2. Press either [BS] or [DEL] to view the previous page.
3. Press [Ctrl] _ [E] to return to the menu screen of the
secondary station.
Press [Ctrl] _ [D] to return to the menu screen of the
primary station.
MONITOR SYSTEM SETUP MENU
GROUP No. = 1
No. Terminal Name Description Name
1 DST- 001 OUT001 London
3 SRC- 001 IN001 Berlin
5 SRC- 003 IN003 Tokyo
7 SRC- 005 IN005 Berjing
9 SRC- 007 IN007 Tpronto
11 DST- 008 OUT008 Rome
13 DST- 013 VTR013 OUT013
15 DST- 015 VTR015 OUT015
17 DST- 017 VTR017 OUT017
19 DST- 019 VTR019 OUT019
21 DST- 021 VTR021 OUT021
23 DST- 023 VTR023 OUT023
25 DST- 025 VTR025 OUT025
27 DST- 027 VTR027 OUT027
29 DST- 029 VTR029 OUT029
31 DST- 031 VTR031 OUT031
33 DST- 033 VTR033 OUT033
35 DST- 035 VTR035 OUT035
37 DST- 037 VTR037 OUT037
39 DST- 039 VTR039 OUT039
Ctrl-E:MENU Ctrl-D:RETURN
Example of Setting Screen
BKS-R3206 V3.10 STATION NUMBER 16
No. Terminal Name Description Name
2 DST- 002 OUT002 NewYork
4 SRC- 002 IN002 Moscow
6 SRC- 004 IN004 Cairo
8 SRC- 006 IN006 Madrid
10 DST- 005 OUT005 Paris
12 DST- 012 VTR012 OUT012
14 DST- 014 VTR014 OUT014
16 DST- 016 SONY016 OUT016
18 DST- 018 VTR018 OUT018
20 DST- 020 VTR020 OUT020
22 DST- 022 VTR022 OUT022
24 DST- 024 VTR024 OUT024
26 DST- 026 VTR026 OUT026
28 DST- 028 VTR028 OUT028
30 DST- 030 VTR030 OUT030
32 DST- 032 VTR032 OUT032
34 DST- 034 VTR034 OUT034
36 DST- 036 VTR036 OUT036
38 DST- 038 VTR038 OUT038
40 DST- 040 VTR040 OUT040
Ctrl-H:Pg-Up Ctrl-M:Pg-Dn
5-51
