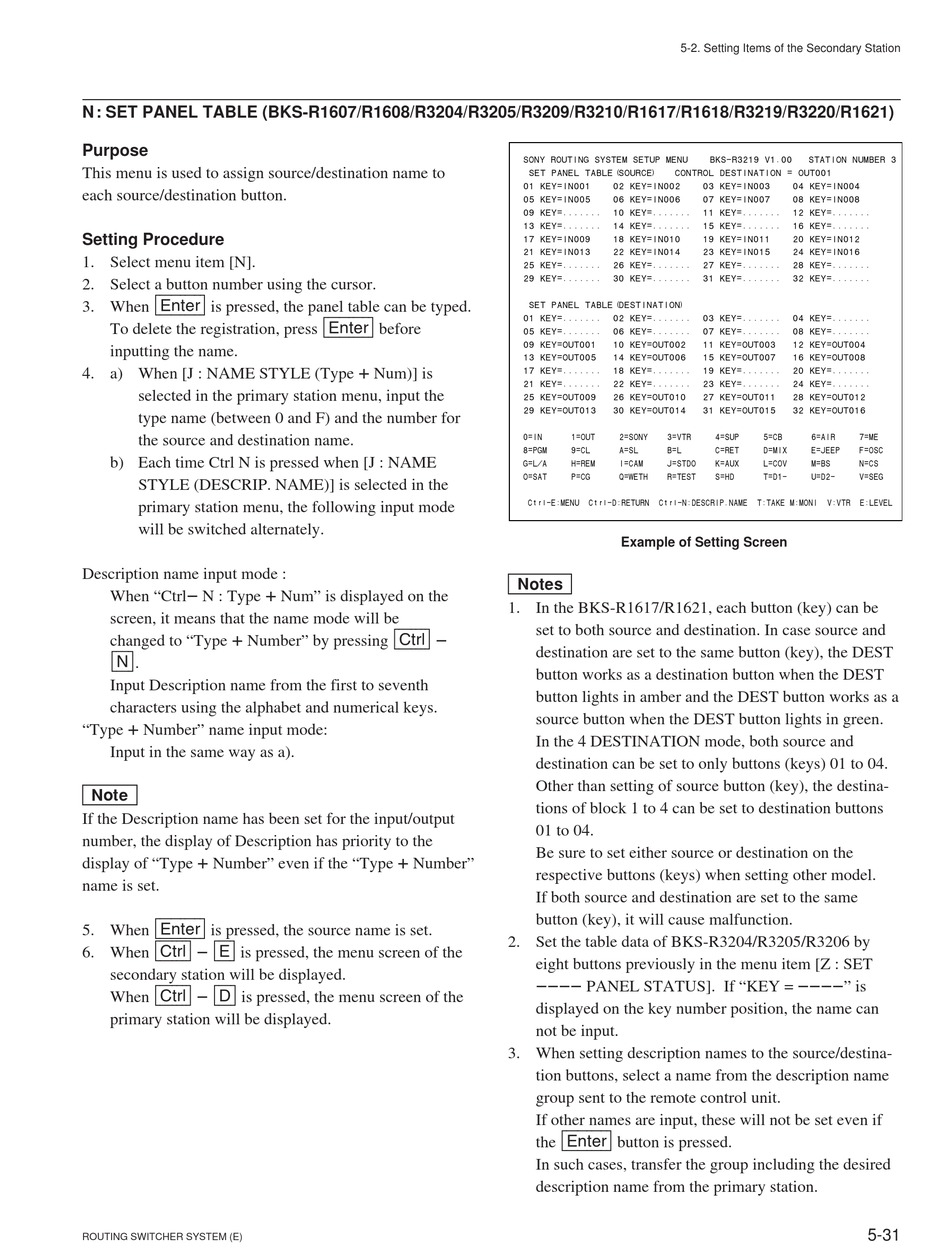

N : SET PANEL TABLE (BKS-R1607/R1608/R3204/R3205/R3209/R3210/R1617/R1618/R3219/R3220/R1621)

Purpose
This menu is used to assign source/destination name to
each source/destination button.
Setting Procedure
1. Select menu item [N].
2. Select a button number using the cursor.
3. When [Enter] is pressed, the panel table can be typed.
To delete the registration, press [Enter] before
inputting the name.
4. a) When [J : NAME STYLE (Type + Num)] is
selected in the primary station menu, input the
type name (between 0 and F) and the number for
the source and destination name.
b) Each time Ctrl N is pressed when [J : NAME
STYLE (DESCRIP. NAME)] is selected in the
primary station menu, the following input mode
will be switched alternately.
Description name input mode :
When "Ctrl_ N : Type + Num" is displayed on the
screen, it means that the name mode will be
changed to "Type + Number" by pressing [Ctrl] _
[N].
Input Description name from the first to seventh
characters using the alphabet and numerical keys.
"Type + Number" name input mode:
Input in the same way as a).
n
If the Description name has been set for the input/output
number, the display of Description has priority to the
display of "Type + Number" even if the "Type + Number"
name is set.
5. When [Enter] is pressed, the source name is set.
6. When [Ctrl] _ [E] is pressed, the menu screen of the
secondary station will be displayed.
When [Ctrl] _ [D] is pressed, the menu screen of the
primary station will be displayed.
ROUTING SWITCHER SYSTEM (E)
5-2. Setting Items of the Secondary Station
SONY ROUTING SYSTEM SETUP MENU
SET PANEL TABLE(SOURCE) CONTROL DESTINATION = OUT001
01 KEY=IN001 02 KEY=IN002
05 KEY=IN005 06 KEY=IN006
09 KEY=....... 10 KEY=....... 11 KEY=....... 12 KEY=.......
13 KEY=....... 14 KEY=....... 15 KEY=....... 16 KEY=.......
17 KEY=IN009 18 KEY=IN010
21 KEY=IN013 22 KEY=IN014
25 KEY=....... 26 KEY=....... 27 KEY=....... 28 KEY=.......
29 KEY=....... 30 KEY=....... 31 KEY=....... 32 KEY=.......
SET PANEL TABLE(DESTINATION)
01 KEY=....... 02 KEY=....... 03 KEY=....... 04 KEY=.......
05 KEY=....... 06 KEY=....... 07 KEY=....... 08 KEY=.......
09 KEY=OUT001 10 KEY=OUT002
13 KEY=OUT005 14 KEY=OUT006
17 KEY=....... 18 KEY=....... 19 KEY=....... 20 KEY=.......
21 KEY=....... 22 KEY=....... 23 KEY=....... 24 KEY=.......
25 KEY=OUT009 26 KEY=OUT010
29 KEY=OUT013 30 KEY=OUT014
0=IN 1=OUT 2=SONY 3=VTR
8=PGM 9=CL A=SL B=L
G=L/A H=REM I=CAM J=STDO
O=SAT P=CG Q=WETH R=TEST
Ctrl-E:MENU Ctrl-D:RETURN Ctrl-N:DESCRIP.NAME T:TAKE M:MONI V:VTR E:LEVEL
Example of Setting Screen
m
1. In the BKS-R1617/R1621, each button (key) can be
set to both source and destination. In case source and
destination are set to the same button (key), the DEST
button works as a destination button when the DEST
button lights in amber and the DEST button works as a
source button when the DEST button lights in green.
In the 4 DESTINATION mode, both source and
destination can be set to only buttons (keys) 01 to 04.
Other than setting of source button (key), the destina-
tions of block 1 to 4 can be set to destination buttons
01 to 04.
Be sure to set either source or destination on the
respective buttons (keys) when setting other model.
If both source and destination are set to the same
button (key), it will cause malfunction.
2. Set the table data of BKS-R3204/R3205/R3206 by
eight buttons previously in the menu item [Z : SET
____ PANEL STATUS]. If "KEY = ____" is
displayed on the key number position, the name can
not be input.
3. When setting description names to the source/destina-
tion buttons, select a name from the description name
group sent to the remote control unit.
If other names are input, these will not be set even if
the [Enter] button is pressed.
In such cases, transfer the group including the desired
description name from the primary station.
BKS-R3219 V1.00 STATION NUMBER 3
03 KEY=IN003 04 KEY=IN004
07 KEY=IN007 08 KEY=IN008
19 KEY=IN011 20 KEY=IN012
23 KEY=IN015 24 KEY=IN016
11 KEY=OUT003 12 KEY=OUT004
15 KEY=OUT007 16 KEY=OUT008
27 KEY=OUT011 28 KEY=OUT012
31 KEY=OUT015 32 KEY=OUT016
4=SUP 5=CB 6=AIR 7=ME
C=RET D=MIX E=JEEP F=OSC
K=AUX L=COV M=BS N=CS
S=HD T=D1- U=D2- V=SEG
5-31
