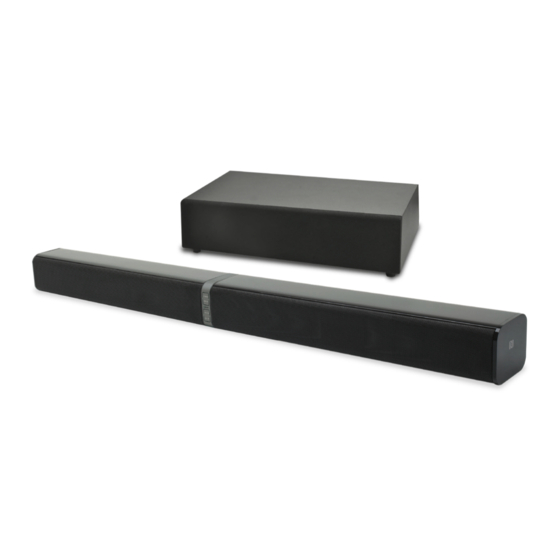

- Page 1 2.1 Channel Soundbar with Wireless Subwoofer Model Number: ASBWS-0719 U S E R M A N U A L www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019...
-
Page 2: Welcome
Welcome Congratulations on choosing to buy a BAUHN product. ® All products brought to you by BAUHN are manufactured to the highest standards ® of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty. We hope you will enjoy using your purchase for many years to come. -
Page 3: Table Of Contents
Contents Welcome General Safety Instructions Warranty Details Remote Control Parts List Product Overview Controls and Connections Installation Instructions Troubleshooting Other Useful Information Repair and Refurbished Goods or Parts Notice www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019... -
Page 4: General Safety Instructions
Grasp the plug, not the cord, when disconnecting. • Disconnect device: This unit must be unplugged for complete disconnection from the mains power supply. Ensure the mains plug remains readily accessible for disconnection. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019... - Page 5 • Liability: We accept no liability for any damage caused by non-compliance with these instructions or mishandling of the equipment. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019...
-
Page 6: Warranty Details
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019... -
Page 7: Remote Control
PAIR: In Bluetooth mode, press and hold to activate the pairing function and disconnect the existing paired Bluetooth device. MUTE: Mute or resume the sound. Select a preset sound effect. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019... - Page 8 Keep batteries out of reach of children. Swallowing may lead to serious injury or death in as little as 2 hours due to internal burns. If swallowed, go straight to a hospital emergency room. Dispose of used batteries immediately. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019...
- Page 9 If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019...
-
Page 10: Parts List
Parts List Soundbar Wireless Subwoofer Remote Control Wall Bracket (2) Stands (2) RCA to 3.5mm AUX Cable 3.5mm to 3.5mm AUX Cable AC Power Adaptor Rubber Feet (3) www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019... -
Page 11: Product Overview
11 AUX In socket 10 PAIR button: Press to pair the 12 OPTICAL S/PDIF socket 13 HDMI (ARC) socket soundbar to the subwoofer (when 14 AC power socket manual pairing is necessary). www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019... -
Page 12: Controls And Connections
Make sure the HDMI cable you use can support the ARC function. • HDMI-CEC will be called different names by different manufacturers. Please refer to your TV's instruction manual for details on setting up HDMI-CEC and ARC. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019... - Page 13 AUX socket on the unit Use the supplied RCA to 3.5mm audio cable to connect the TV’s audio output sockets to the AUX socket on the unit. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019...
- Page 14 Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the AC adapter. • Connect the adapter to the main unit and a mains socket. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019...
- Page 15 If the main unit is not connected with the subwoofer and it is in On mode, the POWER Indicator will flash. Follow steps 1- 4 above to pair the subwoofer to the main unit. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019...
-
Page 16: Installation
Stand mounting (if using option A) Attach a stand to each of the two separate pieces and twist to secure, as illustrated below. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019... - Page 17 • Ensure the surface of the soundbar is clean prior to attaching the rubber feet. • Turn the unit upside down. • Remove the backing paper from the rubber feet. • Stick the rubber feet to the bottom of the unit, as illustrated below. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019...
- Page 18 • Do not overtighten screws. • Use an electronic stud finder to check the wall type before drilling and mounting. Recommendation * * Only install this soundbar on a strong, structurally sound wall. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019...
-
Page 19: Instructions
Preset Sound Effect Selection • Press the EQ button on the remote control to select between preset equalisers: Standard, Movie (recommended for viewing movies), Music (recommended for listening to music). www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019... - Page 20 Activate your Bluetooth enabled device and select the search mode. “ASBWS-0719” will appear on your Bluetooth device list. Select “ASBWS-0719” from the pairing list. The blue indicator will light up solidly if pairing succeeds.
- Page 21 A2DP (Advanced Audio Distribution Profile). , VOL +/–, • To use the playback buttons ( ) on the remote control, the playback device must support AVRCP (Audio Video Remote Control Profile). www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019...
- Page 22 Please download the App “Tap-and- Pair” from Google Play Store (https://play. Google. com) and install. • Pair with the unit manually first, then touch again on the NFC sensing area. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019...
-
Page 23: Troubleshooting
If the Soundbar is not working properly, you can reset the unit to its original factory status. To do this, press and hold the volume + and volume - buttons at the same time for 3 seconds. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019... -
Page 24: Other Useful Information
Dimensions (W x H x D) – Soundbar speakers are joined together) Dimensions (W x H x D) – Subwoofer 47cm x 14.1cm x 26cm Weight – Soundbar 1.5kg Weight - Subwoofer www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019... - Page 25 Allow sufficient time for the apparatus to acclimatise to the new location before switching on. In tropical climates keep the air surrounding the unit sufficiently dry to avoid condensation forming. Version number 07/2019 Date www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019...
-
Page 26: Repair And Refurbished Goods Or Parts Notice
Tempo (Aust) Pty Ltd ABN 70 106 100 252 PO Box 6056 Frenchs Forest, NSW 2086, Australia Tempo Help Desk: 1300 886 649 (Aust) (Operating Hours: Monday-Friday 8:30am-6pm; Saturday 9am-6pm AEST) Email: info@tempo.org www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019... - Page 27 This page has been left blank intentionally. www.tempo.org 1300 886 649 Model: ASBWS-0719 Product Code: 10177 07/2019...
- Page 28 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on 1300 886 649 before returning it to the store for a refund.
