Summary of Contents for TP-Link TL-MR6400

  • Page 2: Table Of Contents

    Report No.: BL-SZ1770154-601 Revision History Version Issue Date Revisions Content Rev. 01 Nov. 08, 2017 Initial Issue Rev. 02 Dec. 06, 201 Revise the blocking signal on the page 23 and add the test data of adaptivity. TABLE OF CONTENTS 1 ADMINISTRATIVE DATA (GENERAL INFORMATION)..................4 1.1 Identification of the Testing Laboratory......................4 1.2 Identification of the Responsible Testing Location...................4...
  • Page 3 Report No.: BL-SZ1770154-601 ANNEX A TEST RESULT............................16 A.1 Adaptivity (adaptive equipment using modulations other than FHSS )............16 A.2 Receiver Blocking............................... 23 ANNEX B TEST SETUP PHOTOS..........................25 ANNEX C EUT EXTERNAL PHOTOS........................25 ANNEX D EUT INTERNAL PHOTOS........................25 ANNEX E INFORMATIVE............................25 3 / 25...

  • Page 4: Administrative Data (General Information)

    Report No.: BL-SZ1770154-601 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) 1.1 Identification of the Testing Laboratory Company Name Shenzhen BALUN Technology Co., Ltd. Block B, 1st FL, Baisha Science and Technology Park, Shahe Xi Road, Address Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Identification of the Responsible Testing Location...

  • Page 5: Product Information

    Report No.: BL-SZ1770154-601 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant TP-Link Technologies Co., Ltd. Building 24 (floors 1,3,4,5) and 28 (floors1-4) Central Science and Address Technology Park, Shennan Rd, Nanshan, Shenzhen, China 2.2 Manufacturer Information Manufacturer TP-Link Technologies Co., Ltd.

  • Page 6: Technical Information

    Report No.: BL-SZ1770154-601 Rated Input 100-240 V , 0.3 A, 50/60 Hz Rated Output 12 V Adapter 3 Brand Name tp-link Model No. T120100-2E1(AU Plug) Note Ancillary Equipment 3 Serial No. Rated Input 100-240 V , 0.3 A, 50/60 Hz...
  • Page 7 Report No.: BL-SZ1770154-601 Transfer Rate (Mbps)(Single RF Modulation technology Modulation Type path) DBPSK DSSS (802.11b) DQPSK 5.5/ 11 BPSK 6 / 9 QPSK 12 / 18 OFDM (802.11g) 16QAM 24 / 36 64QAM 48 / 54 BPSK QPSK 13/19.5 OFDM (802.11n-20 MHz) 16QAM 26/39...

  • Page 8: Summary Of Test Results

    Report No.: BL-SZ1770154-601 3 SUMMARY OF TEST RESULTS The EUT has been tested according to ETSI EN 300 328 V2.1.1 (2016-11). Identity Document Title Wideband transmission systems; Data transmission equipment operating in ETSI EN 300 328 the 2,4 GHz ISM band and using wide band modulation techniques; V2.1.1 (2016-11) Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU...

  • Page 9: General Test Configurations

    Report No.: BL-SZ1770154-601 4 GENERAL TEST CONFIGURATIONS 4.1 Test Environments During the measurement, the normal environmental conditions were within the listed ranges: Relative Humidity 45% - 55% Atmospheric Pressure 100 kPa - 102 kPa Temperature NT (Normal Temperature) +22℃ to +25℃ Working Voltage of the EUT NV (Normal Voltage) 230 V...

  • Page 10: Test Software List

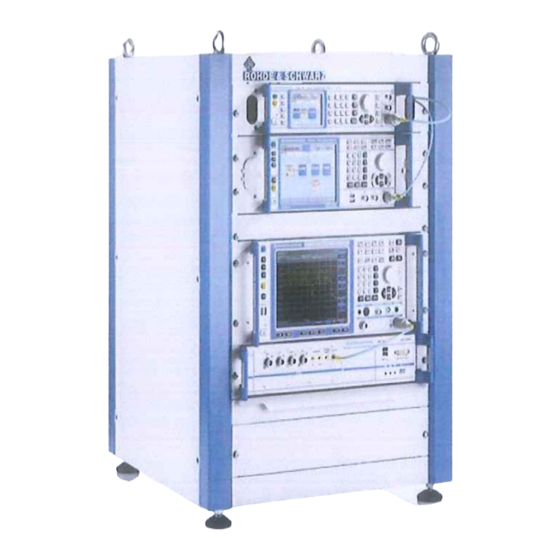

    Report No.: BL-SZ1770154-601 4.3 Test Software List Description Manufacturer Software Version Serial No. TS8997 EMC32 ROHDE&SCHWARZ V10.00.00 4.4 Measurement Uncertainty The following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2.

  • Page 11: Description Of Test Setup

    Report No.: BL-SZ1770154-601 4.5 Description of Test Setup 4.5.1 For Conducted Test (Diagram 1) 4.5.2 For Receiver Blocking Test (Diagram 2) 11 / 25...

  • Page 12: Test Type And Test Results

    Report No.: BL-SZ1770154-601 5 Test Type and Test Results 5.1 Transmitter Parameters 5.1.1 Adaptivity (adptive equipment using modulations other than FHSS) 5.1.1.1 Limit Operational Mode LBT based Detect and Avoid Non-LBT Load Based Load Based Requirement based Equipment Frame Based Equipment Detect and (CCA not using any...
  • Page 13 Report No.: BL-SZ1770154-601 within the range 2 442 MHz to 2 483.5 MHz. See clause 5.4.6.1. Note : A typical value which can be used in most cases is -50 dBm/MHz. Note : The level specified is the level in front of the UUT antenna. In case of conducted measurements, this level has to be corrected by the actual antenna assembly gain.

  • Page 14: Receiver Parameters

    Report No.: BL-SZ1770154-601 5.2 Receiver Parameters 5.2.1 Receiver Blocking Limit While maintaining the minimum performance criteria as defined in clause 4.3.1.12.3, the blocking levels at specified frequency offsets shall be equal to or greater than the limits defined for the applicable receiver category provided in table 6, table 7 or table 8.
  • Page 15 Report No.: BL-SZ1770154-601 Receiver Category 3 equipment Blocking signal Wanted signal mean power from Blocking signal Type of blocking power (dBm) companion device (dBm) frequency(MHz) signal (see Note 2 380 Pmin + 12 dB 2 503.5 2 300 Pmin + 12 dB 2 583.5 Note : Pmin is the minimum level of the wanted signal (in dBm) required to meet the minimum...

  • Page 16: Annex A Test Result

    Report No.: BL-SZ1770154-601 ANNEX A TEST RESULT A.1 Adaptivity (adaptive equipment using modulations other than FHSS ) Test Method&Interference threshold level Test Method Interference threshold level The maximum EIRP power is 17.1 dBm and antenna gain is 2.7 dBi. Radiated Threshold level= -70 dBm/MHz +10 ×...
  • Page 17 Report No.: BL-SZ1770154-601 Test Data Test step 1 Test Result Test Conditions Test Number of Max Burst Limit Temperature Voltage Test Mode Limit(μs) Channel Bursts Power(dBm) (ms) (ms) Tim(μs) 2412 18.0 2.452 45.000 802.11b 2472 16.4 1.314 44.000 2412 16.3 0.283 51.000 802.11g...
  • Page 18 Report No.: BL-SZ1770154-601 Test Plots Note: Test Step 1 (blue line) means Interferer off / Blocker off. Test Step 2 (green line) means Interferer on / Blocker off. Test Step 2_2nd (green line) means Interferer on / Blocker off. Test Step 3 (red line) means Interferer on / Blocker on. 802.11b: Low Channel Test Step 1 802.11b: Low Channel Test Step 2 Time in ms...
  • Page 19 Report No.: BL-SZ1770154-601 802.11b: High Channel Test Step 1 802.11b: High Channel Test Step 2 Time in ms Time in s Test Step 1 Test Step 2 Limit for Evaluation 802.11b: High Channel Test Step 2_2nd 802.11b: High Channel Test Step 3 Time in s Test Step 3 Limit for Evaluation...
  • Page 20 Report No.: BL-SZ1770154-601 802.11g: High Channel Test Step 1 802.11g: High Channel Test Step 2 Time in ms Time in s Test Step 1 Test Step 2 Limit for Evaluation 802.11g: High Channel Test Step 2_2nd 802.11g: High Channel Test Step 3 Time in s Test Step 3 Limit for Evaluation...
  • Page 21 Report No.: BL-SZ1770154-601 802.11n-20MHz: High Channel Test Step 1 802.11n-20 MHz: High Channel Test Step 2 Time in ms Time in s Test Step 1 Test Step 2 Limit for Evaluation 802.11n-20MHz: High Cannel Test Step 2_2nd 802.11n-20 MHz: High Channel Test Step 3 Time in s Test Step 3 Limit for Evaluation...
  • Page 22 Report No.: BL-SZ1770154-601 802.11n-40MHz: High Channel Test Step 1 802.11n-40MHz: High Channel Test Step 2 Time in ms Time in s Test Step 1 Test Step 2 Limit for Evaluation 802.11n-40MHz: High Channel Test Step 2_2nd 802.11n-40MHz: High Channel Test Step 3 Time in s Test Step 3 Limit for Evaluation...

  • Page 23: Receiver Blocking

    Report No.: BL-SZ1770154-601 A.2 Receiver Blocking Test Data Note 1: Pmin = TX Level – cable loss (7 dBm) Note 2: The levels of blocking signal level was corrected by the actual antenna assembly gain,the gain is 2.7dBi 802.11b Operational channel Limit (MHz) 2412...
  • Page 24 Report No.: BL-SZ1770154-601 Test Plot (P 802.11b: Low Channel 802.11b: High Channel Test Plot (PER) Note : All the configuration were tested, but only the worst PER Plot were reported in this report. 802.11b: Low Channel 802.11b: High Channel 24 / 25...

  • Page 25: Annex B Test Setup Photos

    Report No.: BL-SZ1770154-601 ANNEX B TEST SETUP PHOTOS Please refer the document “BL-SZ1770154-AR.PDF”. ANNEX C EUT EXTERNAL PHOTOS Please refer the document “BL- SZ1770154-AW.PDF”. ANNEX D EUT INTERNAL PHOTOS Please refer the document “BL- SZ1770154-AI.PDF”. ANNEX E INFORMATIVE Application form for testing Please refer the document “BL- SZ1770154-AM.pdf”.
