Endress+Hauser iTEMP TMT85 Operating Instructions Manual

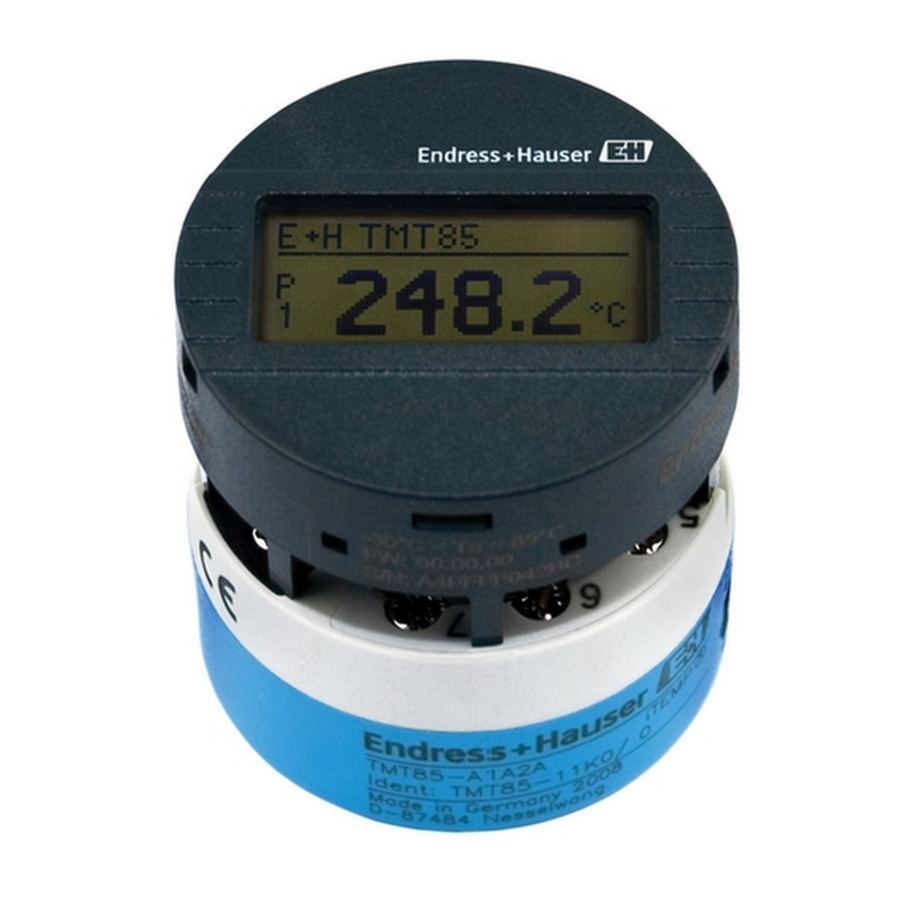

Temperature head transmitter with foundation fieldbus - protocol
Hide thumbs Also See for iTEMP TMT85:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
BA00251R/09/EN/14.13
71209223
Device software
02.00
9
Products

Operating instructions

®
iTEMP
TMT85
Temperature head transmitter
with FOUNDATION Fieldbus
Solutions
™
- protocol
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser iTEMP TMT85

Summary of Contents for Endress+Hauser iTEMP TMT85

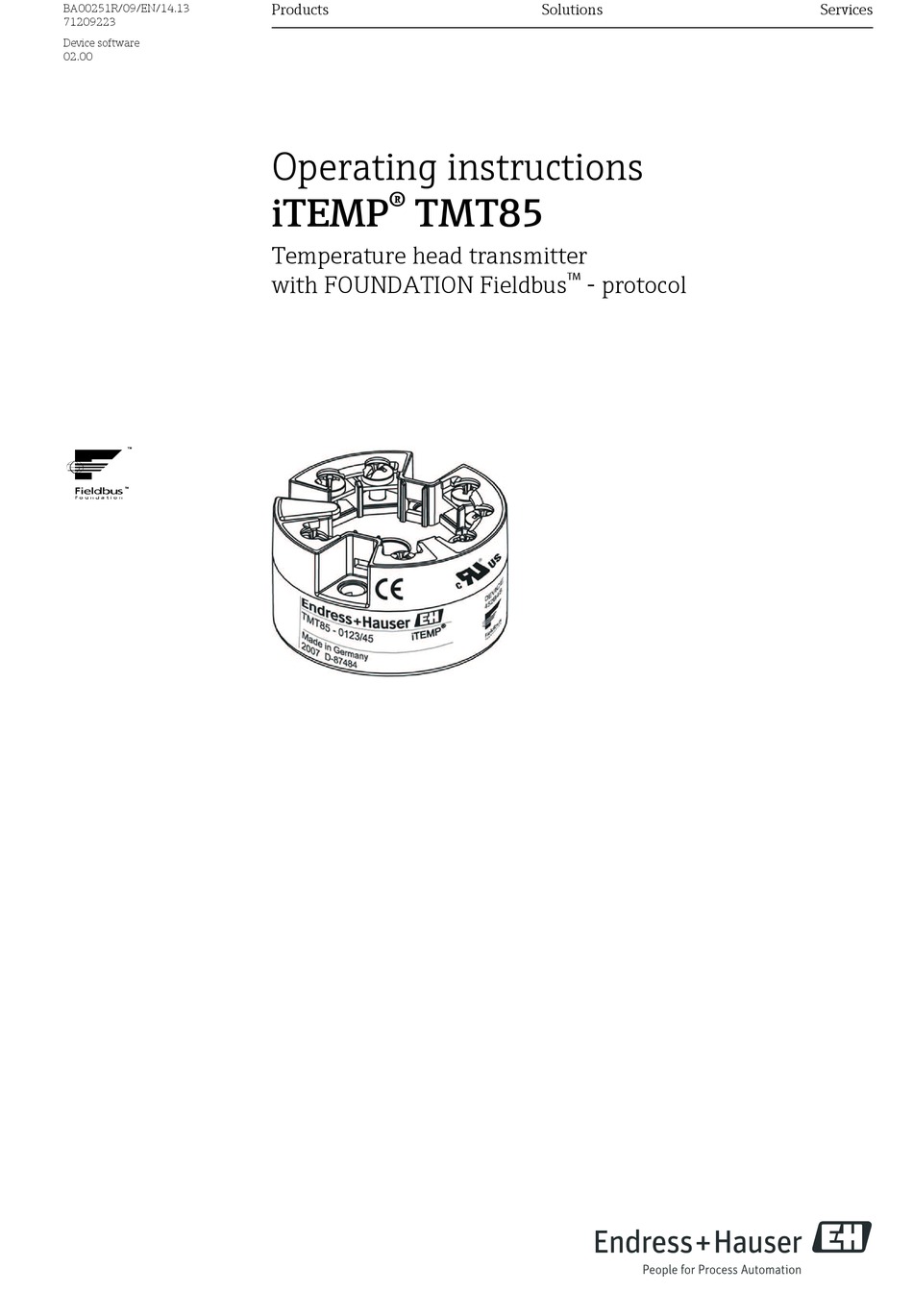

  • Page 1: Operating Instructions

    Products Solutions Services BA00251R/09/EN/14.13 71209223 Device software 02.00 Operating instructions ® iTEMP TMT85 Temperature head transmitter ™ with FOUNDATION Fieldbus - protocol...
  • Page 2 Customer-specific configuration Complex measurement tasks require additional functions to be configured that the user can individually select, set and adapt to his process conditions by setting the appropriate parameters. A detailed description of all the functions and device parameters. Endress+Hauser...

  • Page 3: Table Of Contents

    Disposal ....... . . 41 Software history and overview of compatibility 42 Endress+Hauser...

  • Page 4: Safety Instructions

    IEC/EN 61326 as well as NAMUR recommendations NE 21 and NE 89. NOTICE Power supply ‣ Power must be fed to the device from an 9 to 32 VDC power supply in accordance with NEC Class 02 (low voltage/current) with short-circuit power limit to 8 A/150 VA. Endress+Hauser...

  • Page 5: Notes On Safety Conventions And Icons

    This symbol contains information on procedures and other facts which do not A0011192-EN result in personal injury. ESD - Electrostatic discharge Protect the terminals against electrostatic discharge. Failure to comply with this instruction can result in the destruction of parts or malffunction of the electronics. Indicates additional information, Tip A0011193 Endress+Hauser...

  • Page 6: Identification

    CE mark, declaration of conformity The device described in these Operating Instructions is therefore in conformity with the statutory requirements of the EU Directives. The manufacturer confirms a positive completion of all tests by fitting the unit with a CE mark. Endress+Hauser...

  • Page 7: Registered Trademarks

    • Physical Layer Conformance Test of the Fieldbus FOUNDATION™ An overview of additional approvals and certifications can be found on → ä 50. Registered trademarks FOUNDATION Fieldbus Registered trademark of the Fieldbus Foundation Austin, Texas, USA Endress+Hauser...

  • Page 8: Installation Instructions

    (see Safety Instructions XA or CD). Installation instructions A screwdriver is needed to mount the head transmitter. NOTICE Damage of the head transmitter ‣ Do not overtighten the mounting screws as this could damage the head transmitter. Maximum torque = 1 Nm (¾ pound-feet). Endress+Hauser...
  • Page 9 (2). 5. Then screw down the head transmitter (5) to the insert (3) in the terminal head. 6. After wiring (see section 4), close the terminal head cover (8) back on tight. Endress+Hauser...
  • Page 10 (2). Then fix both mounting screws in position with the circlips (3). 3. Screw the head transmitter (2) to the DIN rail clip (4). 3.3.2 Mounting typical of North America A0008520 Fig. 3: Head transmitter mounting Thermowell Insert Adapter, threaded joint Terminal head Head transmitter Mounting screws Endress+Hauser...
  • Page 11 After mounting the display, close the terminal head cap and refit the screw. A0009852 Fig. 4: Mounting the display The display can only used with the suitable Endress+Hauser terminal heads TA30 and caps with display window. Endress+Hauser...

  • Page 12: Post-Installation Check

    After installing the device, always run the following final checks: Device condition and specifications Notes Is the device visibly damaged (visual check)? Does the device comply to the measurement point specifications, such as See chapter 10 "Technical data" ambient temperature, measurement range etc.? Endress+Hauser...

  • Page 13: Wiring

    (yellow) Display connection/ service interface A0007285-EN Fig. 5: Wiring the head transmitter ESD - electrostatic discharge Protect the terminals from electrostatic discharge. Failure to observe this may result in destruction or malfunction of parts of the electronics. Endress+Hauser...

  • Page 14: Connecting The Sensor Cables

    Spring terminal connection Insert wire end (solid wire or wire with ferrule) Insert wire end (fine-strand wire without ferrule) Release wire end with tool Remove wire end When connecting flexible cables and spring terminals, it is not recommended to use ferrules. Endress+Hauser...

  • Page 15: Foundation Fieldbus™ Cable Specification

    0.32 mm (AWG 22) 44 Ω/km 112 Ω/km Loop-resistance (direct current) 100 Ω ± 20% 100 Ω ± 30% Characteristic impedance at 31.25 kHz Attenuation constant at 39 kHz 3 dB/km 5 dB/km Capacitive asymmetry 2 nF/km 2 nF/km Endress+Hauser...
  • Page 16 A shield coverage of 90% is ideal. • To ensure an EMC protective effect, connect the shield as often as possible to the reference ground. • For reasons of explosion protection, you should refrain from grounding however. Endress+Hauser...
  • Page 17 • In the case of a branched bus segment, the device furthest from the segment coupler represents the end of the bus. • If the fieldbus is extended with a repeater, then the extension must also be terminated at both ends. Endress+Hauser...

  • Page 18: Connecting The Measuring Unit

    • The terminals for the fieldbus connection (1+ and 2-) are not polarity sensitive. • Conductor cross-section: max. 2.5 mm for screw terminals max. 1.5 mm for spring terminals • A shielded cable must be used for the connection. Endress+Hauser...
  • Page 19 Fieldbus connector Optionally, a fieldbus connector can be screwed into the terminal head or field housing instead of a cable gland. Fieldbus connectors can be ordered from Endress+Hauser as an accessory (see Section 8 ' A ccessories' ) . The connection technology of FOUNDATION Fieldbus™ allows measuring devices to be connected to the fieldbus via uniform mechanical connections such as T-boxes, junction boxes, etc.

  • Page 20: Post-Connection Check

    Has the max. length of the fieldbus cable been observed in accordance with the FOUNDATION Fieldbus™ specifications? → ä 15 Has the max. length of the spurs been observed in accordance with the FOUNDATION Fieldbus™ specifications? Is the fieldbus cable fully shielded (90%) and correctly grounded? Endress+Hauser...

  • Page 21: Operation

    • Switching (turning) the display 180 ° A0008323 Fig. 10: Head transmitter operating options Configuration/operating programs for operation via FOUNDATION Fieldbus™ (Foundation Fieldbus functions, device parameter) DIP switch for hardware settings is on the rear of the optional display (write protection, simulation mode) Endress+Hauser...

  • Page 22: Display And Operating Elements

    As a local communications network (LAN) for field devices the FF was primarily designed for the requirements of process technology. The FF thus forms the basic network throughout the hierarchy of a communication system. Please refer to Operating Instructions BA 013S/04/en “FOUNDATION Fieldbus Overview: Installation and Commissioning Guidelines” for configuration information. Endress+Hauser...

  • Page 23: System Architecture

    The superior bus system is realized via the High Speed Ethernet (HSE) with a transmission rate of max. 100 MBit/s. This serves as the ' b ackbone' (basic network) between various local sub-networks and/or where there is a large number of network users. Endress+Hauser...
  • Page 24 • Reserve devices: 232 to 247 • Offline/substitute devices: 248 to 251 The field device tag name (PD_TAG) is given to the device in question during commissioning (see → ä 29). It remains stored in the device even during a supply voltage failure. Endress+Hauser...

  • Page 25: Function Blocks

    On the other hand, a CFF file (CFF = Common File Format) is required for the network configuration in the OFF-line mode. These files can be acquired as follows: – Free of charge via the Internet: www.endress.com – Via the Fieldbus Foundation Organization: www.fieldbus.org Endress+Hauser...

  • Page 26: Configuration Of The Transmitter And Ff Functions

    Hardware settings via DIP switches Connection to head transmitter DIP switch (1 - 7, SW/HW and ADDR ACTIVE), no function DIP switch (SIM = simulation mode; WRITE LOCK = write protection; DISPL. 180° = switch (turn) the display 180°) Endress+Hauser...

  • Page 27: Commissioning

    ID, device type and device serial number. It is unique and can never be assigned twice. The DEVICE_ID of the device is composed as follows: DEVICE_ID = 452B4810CE-XXXXXXXXXXX 452B48 = Endress+Hauser 10CE = TMT85 XXXXXXXXXXX = device serial number (11-digit) •...
  • Page 28 Reset scaling to the "Factory Standard Trim" (see section 11). RTD-Platin configuration Sensor Transducer Entry of Callendar-Van-Dusen coefficients. Call.-Van Dusen RTD-Copper Sensor Transducer Entry of coefficients for polynom copper. configuration RTD-Nickel configuration Sensor Transducer Entry of coefficients for polynom nickel. Endress+Hauser...
  • Page 29 232 and 247 reserved for readdressing field devices. A lower bus address should be assigned to the device for commissioning. Using the DEVICE_ID noted, identify the field device and assign the desired tag name (PD_TAG) to the fieldbus device in question. Factory setting: EH_TMT85_xxxxxxxxxxx (xxx... = serial number). Endress+Hauser...
  • Page 30 Onsite display functions → Transducer Block “TB_DISP_xxxxxxxxxxx” (base index: 700) → Transducer Block “TB_ADVDIAG_xxxxxxxxxx” Advanced diagnostics (base index: 800) Enter the desired name for the block (optional). For factory settings, see the table above. Set the operating mode in the MODE_BLK parameter group (TARGET parameter) to AUTO. Endress+Hauser...
  • Page 31 ALM_OUT_D_MODE parameter. The behavior of the output in the event of an error must be configured using the Fail Safe Type parameter (FSAFE_TYPE) and, depending on the option selected (FSAFE_TYPE = "Fail Safe Value"), the value to be output must be specified in the Fail Safe Value parameter (FSAFE_VALUE). Endress+Hauser...
  • Page 32 20. Set the operating mode in the MODE_BLK parameter group (TARGET parameter) to AUTO. This is only possible, however, under two conditions: – The function blocks are correctly connected to one another. – The Resource Block is in the AUTO operating mode. Endress+Hauser...

  • Page 33: Maintenance

    When ordering accessories, please specify the serial number of the device! Type Order number ® Display TID10 for Endress+Hauser head transmitters iTEMP TMT8x; TID10-xx pluggable TID10 service cable for remote operation of the display for service work; 71086650...

  • Page 34: Troubleshooting

    The current consumption of the bus segment in question (= total of basic currents of all bus users) must not exceed the max. permissible feed current of the bus power supply unit. Error messages in the FF configuration system → Chap. 9.2 Æ Problems when configuring function blocks Endress+Hauser...
  • Page 35 Simulation is active → Deactivate simulation by means of the SIMULATE Analog Input function block: The output value OUT is not parameter group. updated despite a valid “GOOD” status. Æ Other errors (application errors without messages) Endress+Hauser...

  • Page 36: Status Messages

    Abbreviations of the output variables: • SV1 = Sensor value 1 • SV2 = Sensor value 2 • PV1 = Primary value 1 • PV2 = Primary value 2 • DT = Device temperature Endress+Hauser...
  • Page 37 Device status message (FF): BLOCK_ERR = QUALITY = BAD Cause of error: SV1, SV2, Reference measurement Other Internal reference junction defective. PV1, PV2, DT F-221 Transducer_Error = General SUBSTATUS = Remedy: error Device failure Local display: Device defective, replace F-221 Endress+Hauser...
  • Page 38 Cause of error: SV1, SV2, Other ⏐ Block Configuration Special Linearization Error in linearization. PV1, PV2, DT S-502 Error Remedy: Transducer_Error = SUBSTATUS = Local display: Select valid type of linearization (sensor Configuration error Configuration S-502 ↔ Measured value type). error Endress+Hauser...
  • Page 39 ALARM (F-042) (F-/C-/S-/M-042) The sensor resistance can affect the resistance data in the table. If all the sensor connection cable resistances are increased at the same time, the values given in the table are halved. Endress+Hauser...

  • Page 40: Application Errors Without Messages

    Sensor, sensing head defective Check sensor, sensing head RTD connection incorrect Connect the connecting cables correctly (→ ä 14) Programming Incorrect sensor type set in the SENSOR_TYPE device function; change to the correct sensor type Device defective Replace device Endress+Hauser...

  • Page 41: Spare Parts

    When sending the unit in to be checked, please enclose a note with a description of the error and the application. Disposal The device contains electronic components and must, therefore, be disposed of as electronic waste in the event of disposal. Please pay particular attention to the local regulations governing waste disposal in your country. Endress+Hauser...

  • Page 42: Software History And Overview Of Compatibility

    No longer compatible. The device and Operating Instructions change. Change to functions and operation. Compatible. Operating Instructions change. Fixes and internal changes. Operating Instructions do not change. Date Firmware version Software modifications Documentation 10/2007 1.00.00 Original software BA251R/09/en/10.07 10/2007 1.00.00 BA00251R/09/en/13.12 03/2013 2.00.00 Device Revision 2 BA00251R/09/en/14.13 Endress+Hauser...

  • Page 43: Technical Data

    • For 2-wire circuit, compensation for wire resistance possible (0 to 30 Ω) • For 3-wire and 4-wire connection, sensor wire resistance up to max. 50 Ω per wire Resistance Ω 10 to 400 Ω 10 Ω Resistance transmitter 10 to 2000 Ω 100 Ω Endress+Hauser...
  • Page 44 • In accordance with IEC 60079-27, FISCO/FNICO Signal on alarm Status message in accordance with FOUNDATION Fieldbus™ specification. Linearization/transmission behavior Temperature linear, resistance linear, voltage linear Mains voltage filter 50/60 Hz Galvanic isolation U = 2 kV AC (sensor input to the output) Endress+Hauser...

  • Page 45: Power Supply

    Sensor transmitter matching RTD sensors are one of the most linear temperature measuring elements. Nevertheless, the output must be linearized. To improve temperature measurement accuracy significantly, the device enables the use of two methods: • Callendar-Van Dusen coefficients (Pt100 resistance thermometer) Endress+Hauser...
  • Page 46 Input 10 to 2000 Ω 0.001% of the measured value, min. 10 mΩ 0.001% of the measured value, min. 0.2 μV Input -20 to 100 mV 0.001% of the measured value, min. 0.2 μV Input -5 to 30 mV Endress+Hauser...
  • Page 47 • Measured error of the sensor: 0.15 K (0.27 °F)+ 0.002 * 100 °C (212 °F) = 0.35 K (0.63 °F) Influence of reference point (cold junction) Pt100 DIN EN 60751 Cl. B, internal reference point for thermocouples TC Endress+Hauser...
  • Page 48 1 kV asym. Conducted RF IEC 61000-4-6 0.01 to 80 MHz 10 V Measuring category Measuring category II as per IEC 61010-1. The measuring category is provided for measuring on power circuits that are directly connected electrically with the low-voltage network. Endress+Hauser...
  • Page 49 Spring terminals: Tin-plated brass, contact spring V2A • Potting: PU, complies with UL94 V0 WEVO PU 403 FP / FL (fire prevention characteristics) Terminals Choice of screw or spring terminals (see "Design, dimensions" diagram) for sensor and fieldbus wires: Endress+Hauser...
  • Page 50 10.0.7 Certificates and approvals CE-Mark The device meets the legal requirements of the EC directives. Endress+Hauser confirms that the device has been successfully tested by applying the CE mark. Hazardous area approvals For further details on the available Ex versions (ATEX, CSA, FM, etc.), please contact your nearest Endress+Hauser sales organisation.
  • Page 51 ATEX II 1G Ex ia IIC: XA069R/09/a3 ATEX II 3G Ex nA II: XA073R/09/a3 ATEX II 3D Ex tD A22: XA074R/09/a3 ATEX II 2(1)G Ex ia IIC: XA01012T/09/a3 ATEX II 2G Ex d IIC and ATEX II 2D Ex tb IIIC: XA01007T/09/a3 Endress+Hauser...
  • Page 52 Diagnostic 1 x Display 3 x Analog Input Function Blocks FOUNDATION Resource Fieldbus 1 x Sensor 1 Block 1 x Input Selector 1 x Sensor 2 Function Block 1 x PID Function Block A0008244 Fig. 18: Block model TMT85 Endress+Hauser...
  • Page 53 – ONLINE The configured connections between the function blocks have LINKING not yet been established. – ONLINE Normal operating status, the Resource Block is in the AUTO operating mode. The configured connections between the function blocks have been established. Endress+Hauser...
  • Page 54 The alarm priority specifies the behavior in the event of an active write protection alarm WRITE_ALM. If the option of a process alarm was not activated in the ACK_OPTION parameter, this process alarm must only be acknowledged in the BLOCK_ALM parameter. Endress+Hauser...
  • Page 55 Confirm Time AUTO - OOS Specifies the confirmation time for the event report. If the device does not receive (CONFIRM_TIME) confirmation within this time then the event report is sent to the fieldbus host system again. Factory default: 640000 Endress+Hauser...
  • Page 56 Are used primarily to broadcast a change in the associated active conditions (FD_FAIL_ALM) Fail Map (FD_FAIL_MAP) AUTO - OOS Enable or disable conditions to be detected as active for this alarm category Fail Mask AUTO - OOS Allow to suppress any single or multiple conditions (FD_FAIL_MASK) Endress+Hauser...
  • Page 57 Displays the version of the device software. (FIRMWARE_ VERSION) Free Time Read only Displays the free system time (in percent) available for execution of further func- (FREE_TIME) tion blocks. Since the function blocks of the device are preconfigured, this parameter always displays the value 0. Endress+Hauser...
  • Page 58 Manufacturer ID Read only Displays the manufacturer' s ID number. (MANUFAC_ID) Display: 0x452B48 (hex) = Endress+Hauser Max Notify Read only Displays the maximum number of event reports supported by the device that can (MAX_NOTIFY) exist unconfirmed at the same time.
  • Page 59 Cascade host system and a function block in the RCAS operating mode. (SHED_RCAS) When the monitoring time elapses, the function block changes from the RCAS operating mode to the operating mode selected in the SHED_OPT parameter. Factory default: 640000 Endress+Hauser...
  • Page 60 7 = high priority) to the fieldbus host system as a user notice. 8-15 = The write protection alarm is output with the appropriate priority (8 = low priority, 15 = high priority) to the fieldbus host system as a critical alarm. Factory default: Endress+Hauser...
  • Page 61 The operating mode is set by means of the MODE_BLK parameter group (page 63). The Transducer Block supports the following operating modes: • AUTO (automatic mode) • OOS (out of service) • MAN (manual mode) The OOS block status is also displayed by means of the BLOCK_ERR parameter (page 63). Endress+Hauser...
  • Page 62 Parameter for grouping and thus faster evaluation of blocks. Group- Strategy ing is carried out by entering the same numerical value in the (STRATEGY) STRATEGY parameter of each individual block. Factory setting: These data are neither checked nor processed by the Transducer Blocks. Endress+Hauser...
  • Page 63 Error at one or both sensor inputs An exact error description as well as information on rectifying faults can be found in section 9.2. AUTO - OOS Indicates whether static block data have been altered, including date Update Event and time. (UPDATE_EVT) Endress+Hauser...
  • Page 64 This can be read via the Transducer Block “Advanced Diagnostic” in the “ACTUAL_STATUS_CATEGORY” and "ACTUAL_STATUS_NUMBER" parameters. • An exact error description as well as information on rectifying faults can be found in Section 9.2. Endress+Hauser...
  • Page 65 Resulting measured error = 7.12 Ω / 0.385 Ω/K = 18.5 K The Transducer Blocks for sensor 1 and 2 have a Wizard (configuration assistant) for calcu- lating the resistance of sensor cables with different material properties, cross-sections and lengths. Endress+Hauser...
  • Page 66 The SENSOR_CAL_LOC, SENSOR_CAL_DATE and SENSOR_CAL_WHO parameters are available to track sensor calibration. The place, date and time of calibration can be entered here as well as the name of the person responsible for the calibration. Endress+Hauser...
  • Page 67 • Block configuration error: Due to an incorrect setting the device might display the event "437-configuration". This means that the current transmitter configuration is not valid. The parameter BLOCK_ERR_DESC1 in the transducer blocks shows the cause of this configuration error. Endress+Hauser...
  • Page 68 Analog Input function block using the XD_SCALE parameter group. A detailed description of the Analog Input (AI) function block can be found in the FOUNDATION Fieldbus™ Function Blocks manual on the supplied CD-ROM (BA00062S/04). Endress+Hauser...
  • Page 69 Sensor Transducer 2: Settings for sensor input 2 Please observe the wiring diagram in Section 4.1 when connecting the individual sensors. In the case of 2-channel operation, the possible connection options in Section 4.2 also have to be observed. Endress+Hauser...
  • Page 70 (CAL_POINT_LO) To write to this parameter, SENSOR_CAL_METHOD must be set to "User Trim Standard Calibration". Span of the measuring range, depending on the sensor type Calibration minimum span set. (CAL_MIN_SPAN) Read only Unit for sensor calibration. Calibration unit (CAL_UNIT) Endress+Hauser...
  • Page 71 "RTD Polynom Nickel or RTD Polynom Cop- Polynom Coeff. C per" is set in the SENSOR_TYPE parameter. (POLY_COEFF_C) Both Transducer Blocks make a wizard (sensor polynom) available for configuring the parameters based on the "Poly- Polynom Coeff. R0 nom method". (POLY_COEFF_R0) Endress+Hauser...
  • Page 72 Sensor connection cable corrosion can lead to false measured value readings. Therefore the unit offers the possibility to recognize any corrosion before a measured value is affected. Corrosion monitoring is only possible for RTDs with a 4-wire connection and thermocouples (see also Section 9.2.1). Endress+Hauser...
  • Page 73 SENSOR_DRIFT_LIMIT parameter is undershot (Undershooting) or (SENSOR_DRIFT_ overshot (Overshooting). MODE) If "Overshooting" is selected, the corresponding diagnostic event is generated if the limit value is overshot (SENSOR_DRIFT_LIMIT). In the case of "Undershooting", the diagnostic event is output if the limit value is undershot. Endress+Hauser...
  • Page 74 Read only / ACTUAL_STATUS_CHANNEL displays the channel that currently Actual Status AUTO - OOS has the error with the highest value. Channel/ PREVIOUS_STATUS_CHANNEL indicates the channel where an Previous Status error last occurred. Channel (PREVIOUS/ ACTUAL_ STATUS_ CHANNEL) Endress+Hauser...
  • Page 75 Indicator SV2_MIN_ INDICATOR AUTO - OOS Maximum indicator for the maximum value to occur at the internal Device reference temperature measuring point, can be reset by writing an Temperature arbitrary value in this parameter Max. Indicator DEVTEMP_MAX_ INDICATOR Endress+Hauser...
  • Page 76 The "Display" Transducer Block can show up to 3 values alternately on the display. The system automatically switches between the values after a configurable time interval (between 6 and 60 seconds) which can be set in the ALTERNATING_TIME parameter. Endress+Hauser...
  • Page 77 The following measured values should be shown on the display: • Value 1: Measured value to be displayed: Primary Value of Sensor Transducer 1 (PV1) Measured value unit: ° C Decimal places: • Value 2: Measured value to be displayed: DEVTEMP_VALUE Measured value unit: ° C Decimal places: Endress+Hauser...
  • Page 78 The signal selector block (Input Selector block = ISEL) provides selection of up to four inputs and generates an output based on the configured action. A detailed description of the Input Selector function block can be found in the FOUNDATION Fieldbus™ Function Blocks manual on the supplied CD-ROM (BA00062S/04). Endress+Hauser...
  • Page 79 Events of this group Sensor not used with this device Electronics not used with this device • C402: Device initialization High weighting Function check (C) Configuration • C482: Simulation active • C501: Device reset Process not used with this device Endress+Hauser...
  • Page 80 1 this event group is assigned to the respective event category. The following table indicates the default setting of the assignment parameters. The default setting has a clear assigment between the event weighting and the event category (i.e. the assignment parameter). Endress+Hauser...
  • Page 81 Failure (F). Search for the group "Highest Configuration" in the Resource Block in the parameter FD_FAIL_MAP and deactivate the corresponding check box. Then search for the group "Highest Configuration" in the parameter FD_CHECK_MAP and activate the corresponding check box. Endress+Hauser...
  • Page 82 The diagnostic event 103 "Drift" shall no longer be categorized as Mainenance required (M) but as Out of specification (S). Furthermore the status of the measurement value shall display BAD. Navigate to the Advanced Diagnostic Transducer Block and the parameter CONFIGURABLE_AREA. Endress+Hauser...
  • Page 83 41:Sensor break ch01:Check electrical connection - Replace sensor - Check configuration of the connection type The value transmitted via the bus has the following setup: XXYYY XX = channel number YYY = diagnostic number The value for the above mentioned expample sensor break is 01041 Endress+Hauser...
  • Page 84 This mask can be find in the MASK parameters (F, C, S, M). The mask serves as a negative mask, that means: if a field is marked the related events are not transmitted to the bus. Endress+Hauser...

  • Page 85: Index

    H1 bus system ....... 23 High Speed Ethernet (HSE) ....23 System configuration / connecting function blocks . . . 32 Endress+Hauser...
