Endress+Hauser iTEMP TMT85 Manual

TI00134R/09/EN
71209219
Application
• Temperature transmitter with 2 universal input channels and
FOUNDATION Fieldbus™ protocol for the conversion of
different input signals into digital output signals
®
• The iTEMP TMT85 stands out due to signal reliability, long-
term stability, high precision and advanced diagnostics
(important in critical processes)
• For the highest level of safety, availability and risk reduction
• Universal input usable for resistance thermometer (RTD),
thermocouple (TC), resistance transmitter (Ω), voltage
transmitter (mV)
• DIN B style transmitter to fit in the smallest terminal heads or
in remote housings in accordance with DIN EN 50446
• Optional installation in field housings even for use in
Ex d areas
• Mounting bracket pipe or wall for the field housing
Products
Technical Information
®

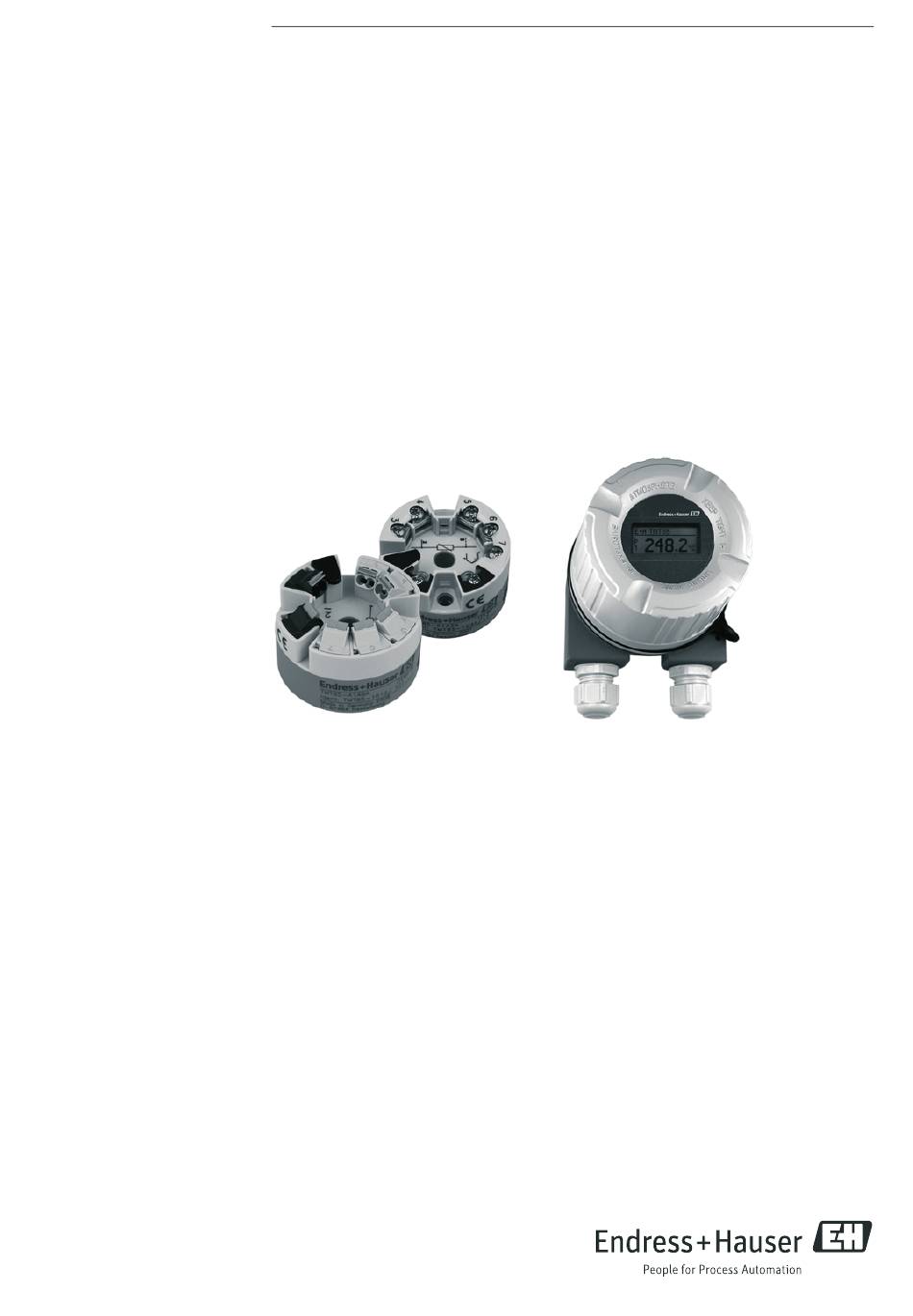

iTEMP TMT85
Dual Input Temperature Transmitter
with FOUNDATION Fieldbus™ communication
Solutions
Your benefits
• Easy and standardized communication via FOUNDATION
Fieldbus™ H1
• Straightforward design of measuring points in Ex-areas
through FISCO/FNICO conformity in accordance with
IEC 600079-27
• Safe operation in hazardous areas thanks to international
approvals such as FM IS, NI; CSA IS, NI; ATEX Ex ia, Ex nA
for intrinsically safe installation in zone 1 and zone 2
• High accuracy through sensor-transmitter matching
• Reliable operation with sensor monitoring and device
hardware fault recognition
• Several mounting versions and sensor connection
combinations
• Rapid no-tools wiring due to optional spring terminal
technology
