RC 4/36-DAB
English
Printed: 20.07.2018 | Doc-Nr: PUB / 5336114 / 000 / 03

Advertisement

Table of Contents
loading

Related Manuals for Hilti RC 4/36-DAB

Summary of Contents for Hilti RC 4/36-DAB

  • Page 1 RC 4/36-DAB English Printed: 20.07.2018 | Doc-Nr: PUB / 5336114 / 000 / 03...
  • Page 2 Printed: 20.07.2018 | Doc-Nr: PUB / 5336114 / 000 / 03...

  • Page 3: Information About The Documentation

    Information about the documentation Explanation of symbols used 1.1.1 Warnings Warnings alert persons to hazards that occur when handling or using the product. The following signal words are used: DANGER DANGER ! ▶ Draws attention to imminent danger that will lead to serious personal injury or fatality. WARNING WARNING ! ▶...
  • Page 4 Switch Bluetooth on at your external device and wait for it to find the Hilti Radio Charger. Select the Hilti Radio Charger at your external device and pair the two de- vices. Product information products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products.
  • Page 5 ▶ Do not attempt to charge or continue to use damaged batteries (e.g. batteries with cracks, broken parts, bent or pushed-in and/or pulled-out contacts). Service ▶ Have the appliance serviced by a qualified specialist using only genuine Hilti spare parts. The safety of the appliance can thus be maintained. English...
  • Page 6 English Printed: 20.07.2018 | Doc-Nr: PUB / 5336114 / 000 / 03...
  • Page 7 English Printed: 20.07.2018 | Doc-Nr: PUB / 5336114 / 000 / 03...

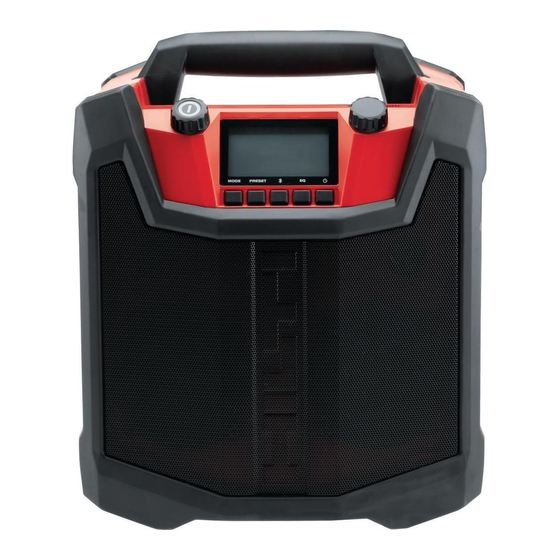

  • Page 8 Description Overview English Printed: 20.07.2018 | Doc-Nr: PUB / 5336114 / 000 / 03...
  • Page 9 If the battery symbol does not appear in the display either the battery is not correctly inserted or the battery or the appliance is defective. Stop using the appliance and the battery and have them checked by Hilti Service. Information shown in the display Information shown in the display →...

  • Page 10: Technical Data

    AUX has been selected as the audio source. Indicates the battery state of charge. A bar stands for 25 %. Indicates that the device is connected to the AC supply. Bluetooth has been selected as the audio source. If the pairing symbol flashes, the device is searching for a player to which it can connect.

  • Page 11: Operation

    FM frequency range 87.5 MHz …108 MHz DAB / DAB+ 174 MHz …240 MHz Charge voltage 7.2 V …36 V Output power, charger 90 W USB output voltage 5.0 V / 2.1 A Ambient temperature −17 ℃ …40 ℃ Bluetooth radiant power 7.30 dBm Bluetooth frequency 2,402 MHz …2,480 MHz...
  • Page 12 2. To pair the appliance manually for the first time, press and hold down the Bluetooth button (for about 2 seconds) until the Bluetooth symbol starts to flash. ◁ Select the Hilti Radio Charger on the external device while the Bluetooth symbol on the display is flashing.
  • Page 13 Making an NFC connection 1. Activate the NFC function on your mobile device (if it supports NFC). 2. Hold you mobile device close to the NFC interface of the appliance. This is on the right-hand side and is indicated by the NFC symbol. You must accept the NFC connection at your mobile device when the connection is established for the first time.
  • Page 14 1. Use the knob to select a frequency. 2. Press the preset button. 3. Press the knob to save this frequency. Positioning the antenna ▶ Swivel the antenna to the position at which reception is clearest. Adjusting the volume 1. Turn the power button clockwise to increase the volume. 2.
  • Page 15 5.10 Equalizer settings This allows you to make adjustments to the bass and treble settings. 1. Press the equalizer button. It is marked “EQ”. 2. Use the knob to select either bass or treble for adjustment. 3. Use the knob to change your settings. 5.11 Audio playback from an external device via Bluetooth 1.
  • Page 16 5.13 Setting the clock Automatic synchronization of clock time with radio time can be switched on or off. 1. Press the clock button. 2. Use the knob to set the time. 3. Save the time by pressing the knob briefly. 4.

  • Page 17: Troubleshooting

    If the LEDs light up the Radio Charger might be defective. If the LEDs do not light up the battery is defective. ▶ Contact Hilti Service. Appliance in battery-powered operation Malfunction Possible cause Action to be taken The appliance does not start.

  • Page 18: Rohs (Restriction Of Hazardous Substances)

    Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
  • Page 19 Printed: 20.07.2018 | Doc-Nr: PUB / 5336114 / 000 / 03...
  • Page 20 Printed: 20.07.2018 | Doc-Nr: PUB / 5336114 / 000 / 03...
  • Page 21 Printed: 20.07.2018 | Doc-Nr: PUB / 5336114 / 000 / 03...
  • Page 22 Hilti = registered trademark of Hilti Corp., Schaan 20180703 Printed: 20.07.2018 | Doc-Nr: PUB / 5336114 / 000 / 03...
