New Features and Additional Programming Changes
The LYNXR-I Series Security System includes several new features that must be programmed in accordance
with this supplement. These features and programming steps are not included in the Installation and Setup
Guide or the Programming Guide that are provided with this control.
Please follow the new and revised diagrams and procedures contained in this supplement when installing
and programming the new features.
The new LYNXR-I Series features include:
Compatibility with the AlarmNet GSML/GSMVL Communications Devices
New 24-hour Carbon Monoxide Monitor Zone Type 14 and compatibility with the 5800CO Carbon
Monoxide Sensor.
Remote Services (requires compatible AlarmNet Communications device)
Wiring Overview
The following diagram provides an overview of the LYNXR-I Series control's wiring connections. A summary
of connections diagram is also provided.
TERMINAL
STRIP
TELEPHONE
CONNECTIONS
LRR/IP
COMMUNICATIONS
PORT
GSML/GSMVL
COMMUNICATIONS
PORT
STANDARD
HIGH-CAPACITY
BATTERY CONNECTOR

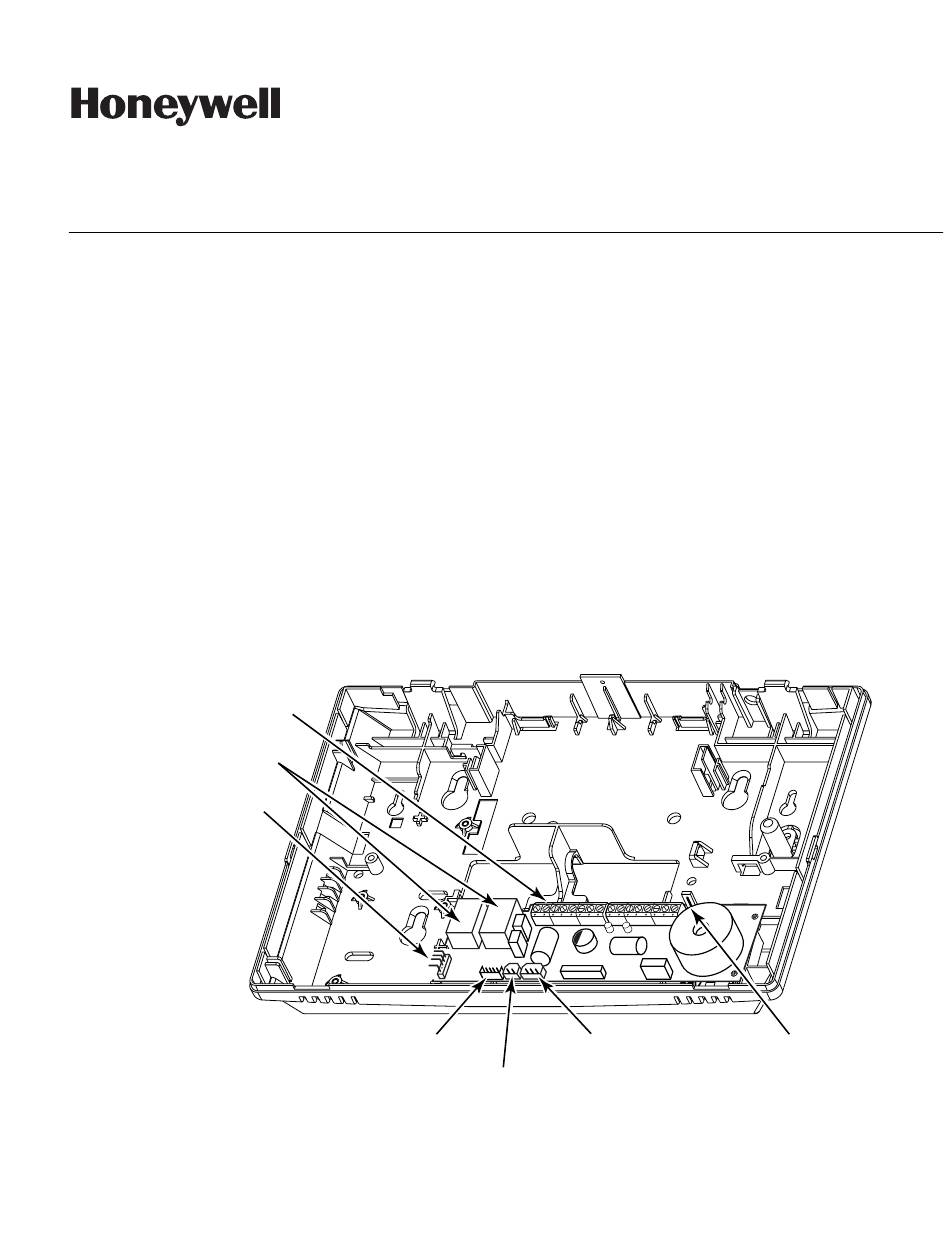

LYNXR-I Series Wiring Connections
LYNXR- - - - I Series
LYNXR
LYNXR
LYNXR
Security Systems
Security Systems
Security Systems
Security Systems
SUPER HIGH-CAPACITY
BATTERY CONNECTOR
K14945 1/08 Rev. A
I Series
I Series
I Series
LOCAL
SOUNDER
DISABLE
09012-009-V0

Advertisement

loading

Summary of Contents for Honeywell LYNXR-I Series

  • Page 1 Security Systems New Features and Additional Programming Changes The LYNXR-I Series Security System includes several new features that must be programmed in accordance with this supplement. These features and programming steps are not included in the Installation and Setup Guide or the Programming Guide that are provided with this control.
  • Page 2 Installing the AlarmNet GSML/GSMVL Communications Device 1. Install the module into the control back plate and secure it with the three provided screws. 2. Insert the antenna into the retaining slots in the control back plate. 3. Use double-stick tape to secure antenna to the control back plate. 4.
  • Page 3 Field ✻ 55 The allowable combinations of communication reporting channels and reporting options are shown in the table below. The available options, which depend upon whether AAV is enabled in field *91, are programmed in field *55. Program the preferred reporting channel in field *77. If the GSM/IP (Digital Communication with AAV) feature is used (options 5 and 7 in *55), there may be restrictions when dialing the numbers entered in *41, *42 and *46 (i.e.;...
  • Page 4 ✻ Dynamic Signaling Delay/Dynamic Intended for use with LRR/IP communication device reporting. This field’s 1st Entry allows you select the time- Signaling Priority out period the panel will wait for acknowledgment from 1st Entry (delay before switching Central Station the first reporting destination (preferred channel) before it reporting path) attempts to send a message to the second destination.
  • Page 5: Remote Services

    Remote Services Honeywell now offers a new series of web based services that provides consumers with the ability to communicate with their security system remotely via three new features. In order to use these services, a compatible AlarmNet Communications device must be installed.
  • Page 6: Programming Default Tables

    ✻ Multi-mode (E-mail notification) Enable if using AlarmNet Remote Services e-mail notification (multi-mode) feature. The address(es) used Address(es) must also be enabled in the AlarmNet communication 0 = Disable multi-mode devices 1 = Enable multi-mode device address #6 only device. For more information refer to the instructions 2 = Enable multi-mode device address #7 only provided with the Communications Device being installed.
  • Page 7 - 7 -...
  • Page 8 2 Corporate Center Drive, Suite 100 P.O. Box 9040, Melville, NY 11747 Copyright © 2008 Honeywell International Inc. www.honeywell.com/security ÊK14945TŠ K14945 1/08 Rev. A...
