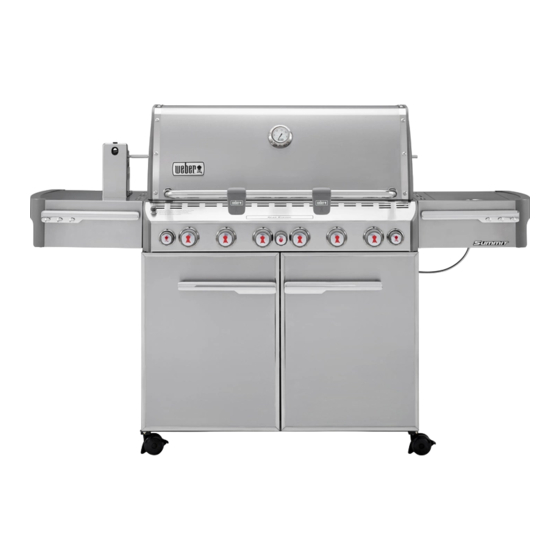

Weber Summit E-670 Owner's Manual
Lpg
Hide thumbs
Also See for Summit E-670:
- Owner's manual (112 pages) ,
- Handbook (24 pages) ,
- Assembly instructions (4 pages)
Table of Contents
Advertisement
Quick Links
Thank you for
purchasing a
WEBER grill.
Take a few minutes
and protect it by
registering your
product online at
www.weber.com.
845BR-0035
0845
GRILL OWNER'S GUIDE
E-670 · S-670
YOU MUST READ THIS OWNER'S GUIDE BEFORE
OPERATING YOUR GAS GRILL.
m DANGER
If you smell gas:
1) Shut off gas to the
appliance.
2) Extinguish any open
flames.
3) Open lid.
4) If odour continues, keep
away from the appliance
and immediately call your
gas supplier or your fire
service.
Leaking gas may cause a fire
or explosion which can cause
serious bodily injury, death, or
damage to property.
m WARNING
1) Do not store or use petrol
or other flammable liquids
or vapours in the vicinity of
this or any other appliance.
2) A gas supply cylinder not
connected for use shall not
be stored in the vicinity of
this or any other appliance.
m WARNING: Carefully follow all
leak-check procedures in this
Owner's Guide prior to grill
operation. Do this even if the
grill was dealer-assembled.
m WARNING: Do not ignite
this appliance without first
reading the BURNER IGNITION
sections of this Owner's
Guide.
OUTDOOR USE ONLY.
NOTICE TO INSTALLER: These
instructions must be left with the
owner, who should keep them for
future use.
EN_ASIA - INTERNATIONAL ENGLISH
LPG
59859
04/01/18
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Weber Summit E-670
Summary of Contents for Weber Summit E-670
- Page 1 GRILL OWNER’S GUIDE E-670 · S-670 Thank you for YOU MUST READ THIS OWNER’S GUIDE BEFORE purchasing a OPERATING YOUR GAS GRILL. WEBER grill. Take a few minutes m WARNING: Carefully follow all m DANGER leak-check procedures in this and protect it by If you smell gas: Owner’s Guide prior to grill...
-
Page 2: Warnings
WARNINGS m DANGER Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property. m WARNINGS flames until flaring subsides. m Should a grease fire occur, turn off all burners and leave lid m Follow regulator connection instructions for your type of gas closed until fire is out. -
Page 3: Table Of Contents
WEBER SPIDER/INSECT SCREENS ........ -
Page 4: Exploded View
EXPLODED VIEW SUMMIT E-670/S-670_ASIA_LPG_110117... -
Page 5: Warranty
WARRANTY The WEBER Promise (10 year EMEA voluntary warranty) At WEBER, we pride ourselves on two things: making barbecues that last and providing a lifetime of excellent customer service. Owner’s Responsibilities Under this Disclaimers Thank you for purchasing a WEBER product. -
Page 6: General Instructions
GENERAL INSTRUCTIONS Your gas grill is a portable outdoor cooking appliance. With the gas grill you can grill, • We recommend that you replace the gas hose on your gas grill every 5 years. Some barbecue, roast and bake with results that are difficult to duplicate with indoor kitchen countries may have requirements that the gas hose be replaced within less than 5 appliances. -
Page 7: Operating
WARNING: Do not move the appliance while it is alight. m WARNING: Your WEBER gas grill is not intended to be installed in m WARNING: Wear protective gloves when using this appliance. ◆... -
Page 8: Installing The Cylinder
GAS INSTRUCTIONS INSTALLING THE CYLINDER Purchase a Full Cylinder of Gas From your Gas Dealer The cylinder must always be installed, transported and stored in an upright position. Never allow the cylinder to drop or be handled carelessly. Never store the cylinder where temperatures can exceed 51°... -
Page 9: Connecting The Lpg Cylinder
5 years, in which case that country’s requirement would take precedence. For replacement hose, regulator, and valve assemblies, contact the Customer Service Representative in your area using the contact information on our web site. Log on to www.weber.com. WWW.WEBER.COM... -
Page 10: Leak-Check Preparation
GAS INSTRUCTIONS LEAK-CHECK PREPARATION m WARNING: The gas connections of your SUMMIT gas grill have been factory-tested. We do, however, recommend that you leak- check all gas connections before operating your SUMMIT gas grill. Remove Control Panel Tools needed: Screwdriver, pliers, and towels. A) Remove burner control knobs (1). -
Page 11: Check For Gas Leaks
If leak does not stop, contact the Customer Service Representative in your area using the contact information on our website. Log onto www.weber.com. D) When leak checking is complete, turn gas supply off at the source and rinse connections with water. - Page 12 DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com. When leak checks are complete, turn gas supply off at the source and rinse connections with water.
-
Page 13: Refilling The Lpg Cylinder
Requires three “D” alkaline batteries. Do not mix old and new batteries or different types of batteries (standard, alkaline or rechargeable). Battery housing is located inside the GREEN WIRE cabinet on the left side. To operate, activate power button. ◆ RED WIRE RED WIRE WWW.WEBER.COM... -
Page 14: Before Using The Grill
WARNING: Always check hose before using grill for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the grill. Replace using only WEBER authorised replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site. -
Page 15: Snap Ignition Operation
WARNING: If the burner still does not light, turn the burner control knob to OFF and wait five minutes to let the gas clear before you try again or try to light with a match. ◆ WWW.WEBER.COM... -
Page 16: Main Burner Ignition & Usage
MAIN BURNER IGNITION & USAGE MAIN BURNER IGNITION m DANGER Failure to open the lid while igniting the grill’s burners, or not waiting five minutes to allow the gas to clear if the grill does not light, may result in an explosive flare-up, which can cause serious bodily injury or death. -
Page 17: Main Burner Manual Ignition
WARNING: If the burner does not light, turn the burner control knob to OFF and wait five minutes to let the gas clear before you try again. ◆ TO EXTINGUISH Push in and turn each burner control knob clockwise to OFF position.Turn gas supply off at the source. ◆ WWW.WEBER.COM... -
Page 18: Grilling Tips & Helpful Hints
• Foods placed on the cooking grate directly above burners may require turning or moving to a less hot area. Your WEBER gas grill may include a sear burner for searing thin meats and fish. The SEAR • Use tongs rather than a fork for turning and handling meats to avoid losing natural STATION burner has an ON or OFF control setting that works with the two adjacent main juices. -
Page 19: Cooking Methods
For longer Food is placed on the area of the cooking grates between the lit burners. cooking times, add water to the foil pan to keep drippings from burning. The drippings can be used to make gravies or sauces. ◆ WWW.WEBER.COM... -
Page 20: Side Burner Ignition & Usage
SIDE BURNER IGNITION & USAGE SIDE BURNER IGNITION m DANGER Failure to open the lid while igniting the side burner, or not waiting five minutes to allow the gas to clear if the side burner does not light, may result in an explosive flare-up, which can START/HI cause serious bodily injury or death. -
Page 21: Sear Station Ignition & Usage
WARNING: Always check hose before using grill for nicks, cracking, abrasions or cuts. If the hose is found to be damaged The grills illustrated in this in any way, do not use the grill. Replace using only WEBER Owner’s Guide may vary slightly from the model purchased. -
Page 22: Sear Station Burner Manual Ignition
SEAR STATION IGNITION & USAGE SEAR STATION BURNER MANUAL IGNITION m DANGER Failure to open the lid while igniting the grill’s burners, or not waiting five minutes to allow the gas to clear if the grill does not light, may result in an explosive flare-up, which can cause serious bodily injury or death. -
Page 23: Smoker Burner Ignition & Usage
WARNING: Always check hose before using grill for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the grill. Replace using only WEBER authorised replacement hose. Contact the Customer Service... -
Page 24: Smoker Burner Manual Ignition
WARNING: Always check hose before using grill for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the grill. Replace using only WEBER authorised replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site. -
Page 25: Using The Smoker
To a lesser degree a “smoke” residue will accumulate on the inside of your gas grill. This residue need not be removed and will not adversely affect the function of your gas grill. ◆ WWW.WEBER.COM... -
Page 26: Infrared Burner Ignition & Usage
WARNING: Always check hose before using grill for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the grill. Replace using only a WEBER authorised replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site. -
Page 27: Infrared Burner Manual Ignition
WARNING: Always check hose before using grill for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the grill. Replace using only a WEBER authorised replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site. -
Page 28: Troubleshooting
LP cylinder. Replace with a spare LP cylinder and resume cooking. If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com. SIDE BURNER TROUBLESHOOTING PROBLEM... -
Page 29: Sear Station Troubleshooting
Turn cylinder valve on slowly. Refer to “MAIN BURNER safety device. IGNITION”). If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com. INFRARED BURNER TROUBLESHOOTING PROBLEM CHECK SOLUTION Infrared burner does not light. -
Page 30: Maintenance
Customer Service Representative in your area using the contact information on our a fire, which can cause serious bodily injury or death, and cause website. Log onto www.weber.com. damage to property. Catch pan — Disposable foil trays are available, or you can line the catch pan with aluminum foil. -
Page 31: Replacing Main Burners
Pull manifold assembly away from burner tubes and let it hang loose from grill cabinet (9). Do not disconnect the blue wire from the left side of the manifold assembly. Pull the selected burner tube(s) through the front of cookbox and replace with new burner tube(s) (10). WWW.WEBER.COM... -
Page 32: Side Burner Maintenance
MAINTENANCE Remove SEAR STATION Burner To remove the SEAR STATION burner, pull the burner tube toward you. This removes it from the burner tube notch (11). Then rotate the tube clockwise (12), so that the screw at the end of the tube (13) fits through the notch in the heat shield opening (14). When the burner tube is free, remove it from the cookbox (15). -
Page 33: Annual Maintenance
If the spider/insect screen becomes damaged or cannot be cleaned, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com. Burner Flame Pattern The gas grill burners have been factory set for the correct air and gas mixture. The correct flame pattern is shown. - Page 35 WWW.WEBER.COM...
- Page 36 ATTENTION: This product has been safety-tested and is only certified for use in a specific country. Refer to country designation located on outside of box. These parts may be gas-carrying or gas-burning components. Please contact Weber-Stephen Products LLC Customer Service Department for genuine Weber-Stephen Products LLC replacement part(s) information.
