Feature Profile 78960: Using Polycom VVX Expansion Modules with Polycom VVX Business Media Phones

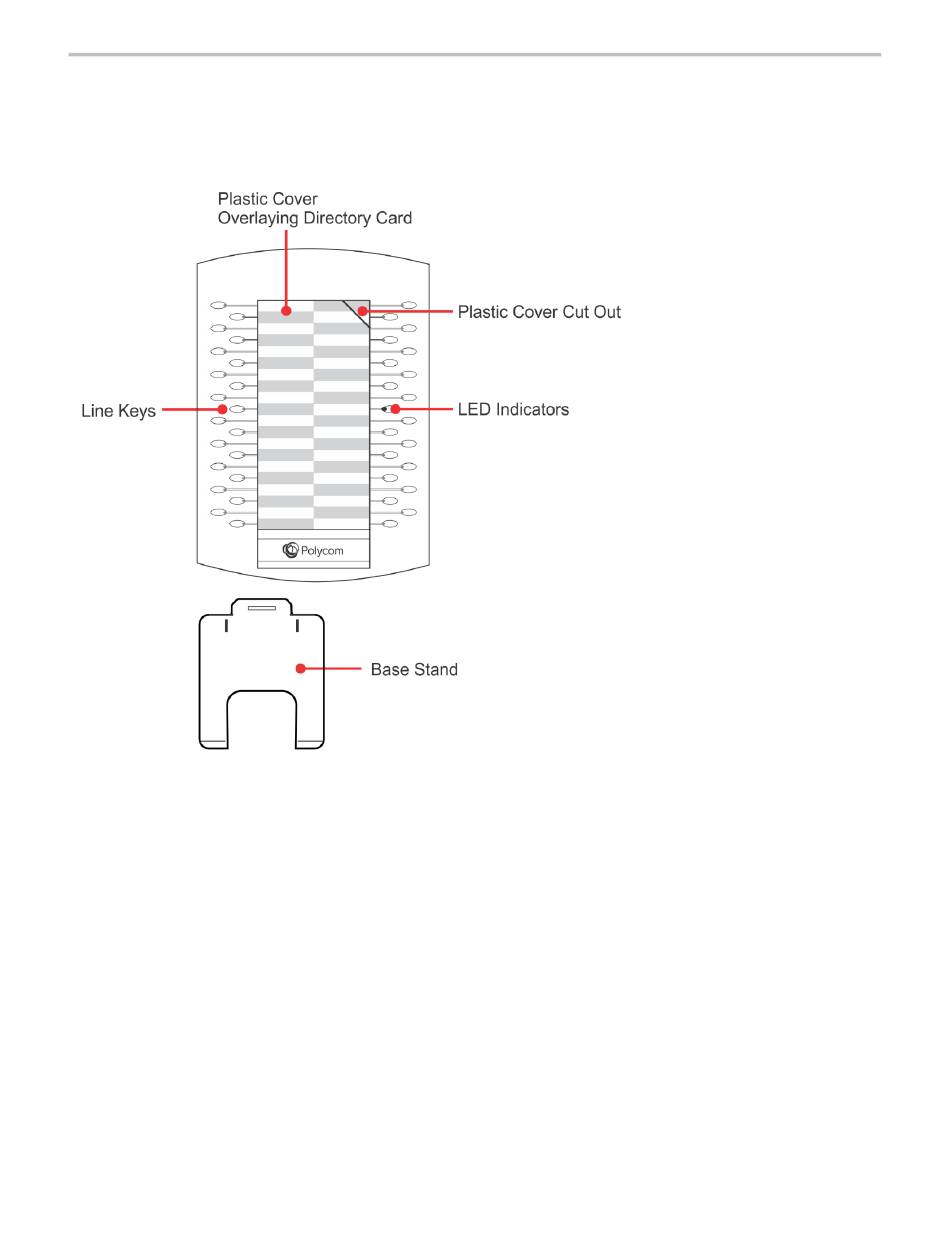

The next figure illustrates the features, components, and keys available on the expansion modules with a
paper display.
VVX Expansion Module features
The following are descriptions of the features, components, and keys available on the VVX Expansion
Module.
●
Plastic Cover Overlying Directory Card Protects the directory card. The directory card is a
paper sheet that displays line numbers, busy lamp field contacts, favorites, and line key functions.
●
Plastic Cover Cut Out Helps insert or remove the plastic cover.
●
Line Keys Selects available line key contacts, functions, and assignments.
●
LED Indicators Indicates a line or busy lamp field contact's status. The following lists the LED
Indicator behaviors shown on the expansion modules:

Solid Green Indicates an active call in progress.

Fast-flashing Green Indicates an incoming call.

Flashing Green Indicates the remote party placed the call on hold.

Solid Red Indicates the phone of a monitored busy lamp field contact is placing a call or is in
a call.

Flashing Red Indicates a held call.
