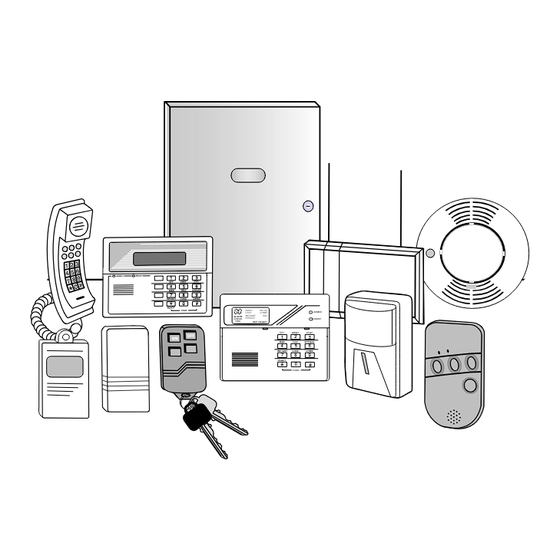

ADT SA10ADTEG Programming Manual

For standard controls. safewatch pro & security manager.
Hide thumbs Also See for SA10ADTEG:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
N7227-2PRGDV2 1/00
ADT Safewatch Pro
& Security Manager
Programming GuideÊ
For "Standard" Controls
AWAY
NO AC
ARMED
STAY
CHIME
INSTANT
BAT
ALARM
BYPASS
CHECK
READY
FIRE
NOT READY
OFF
AWAY
STAY
1
2
3
MAX
TEST
BYPASS
4
5
6
INSTANT
CODE
CHIME
7
8
9
READY
*
0
#
PANIC
Security Systems
Model SA10ADTEG
¨

Advertisement

Table of Contents
loading

Related Manuals for ADT SA10ADTEG

Summary of Contents for ADT SA10ADTEG

  • Page 1 ADT Safewatch Pro ¨ & Security Manager Security Systems Programming GuideÊ For “Standard” Controls AWAY NO AC ARMED STAY CHIME INSTANT ALARM BYPASS CHECK READY FIRE NOT READY AWAY STAY TEST BYPASS INSTANT CODE CHIME READY PANIC N7227-2PRGDV2 1/00 Model SA10ADTEG...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ADT Standard Programming Form ................3 Mechanics of Programming ..................7 General Programming Information................7 Entering the Programming Mode ................7 Programming a Data Field ..................7 Reviewing a Data Field/Erasing an Entry in a Data Field ........8 Menu Mode Programming ( 56, 80, 81, 82, &...

  • Page 3: Adt Standard Programming Form

    STANDARD PROGRAMMING FORM Local programming requires the use of a 2-line Custom English touchpad connected to the touchpad terminals on the control. Values shown in boxes are “Standard” ADT defaults. Field Function Programming Selections ––––– –––––––––––––––––––––––––––– ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– SYSTEM SETUP ( 20- 27) 20 INSTALLER CODE 4 digits, 0-9.
  • Page 4 SPLIT/DUAL REPORTING 0 = Disable (Backup report only) TO PRIMARY PHONE No. TO SECONDARY PHONE No. 1 = Alarms, Restore, Cancel Other Reports 2 = All Reports except Open/Close, Test Open/Close, Test 3 = Alarms, Restore, Cancel All Reports 4 = All Reports except Open/Close, Test All Reports 5 = All Reports ( Dual Reporting)
  • Page 5 No data entry required. EXITS PROGRAMMING MODE and allows re- entry by: Installer Code + Code key + 0 or by: SETS ALL FIELDS TO ADT STANDARD DEFAULT VALUES: Power-up then [ ] + [#] within 50 seconds. No data entry required.
  • Page 6 OUTPUT RELAYS WORKSHEET FOR FIELDS 80 and 81. Applicable only if relays are to be used. Fill in required data and follow the detailed programming procedure described in the PROGRAMMING DATA FIELDS section of the Installation Instructions. OUTPUT RELAYS Notes: 1.

  • Page 7: Mechanics Of Programming

    (a) Press both the [ ] and [#] keys at the same time within 50 seconds after power is applied to the Control, or (b) After power up, enter the following: ADT Installer code: (6 3 2 1) + 8 + 0. Method (b) is disabled if you exit the program mode using 98 instead of 99.

  • Page 8: Reviewing A Data Field/Erasing An Entry In A Data Field

    Resets the Subscriber Account number and CSID in preparation for an initial download. No data entry required. Will reset all program fields to the ADT “standard” default values shown in the boxes in the Program Form on page 3. Key 97 only if the standard defaults were changed and you wish to return to the original factory- programmed defaults.

  • Page 9: 5800 Series Transmitter Input Loop Identification

    5800 Series Transmitter Input Loop Identification • All of the transmitters illustrated below have one or more unique factory assigned input (loop) ID codes. Each of the inputs requires its own programming zone (e.g., a 5804's four inputs require four programming zones).

  • Page 10: Alpha Vocabulary List (For Entering Zone Descriptors)

    ALPHA VOCABULARY LIST (For Entering Zone Descriptors) NOTE: Some rarely used words appearing in previously published lists have been deleted from this list. Use only this list for selecting zone descriptors. (Word Space) • 057 DOOR – L – – R – –...

  • Page 11: Zone Response Type Definitions

    ZONE RESPONSE TYPE DEFINITIONS Type 00 Program a zone with this zone type if the zone is not used. Zone Not Used Type 01 This zone type provides entry delay whenever the zone is faulted if the control Entry/Exit Burglary #1 is armed in the AWAY or STAY modes.
  • Page 12 Type 10 This zone type gives entry delay (using the programmed entry time), if tripped Interior w/Delay when the panel is armed in the Away mode, regardless of whether or not an entry/exit delay zone was tripped first. Exit delay is present for any arming mode.

  • Page 13: Data Field Descriptions (In Numerical Order)

    Use the programming forms in this manual to record the values programmed in those fields not already programmed with ADT “Standard” defaults. Enter these values in the empty boxes on the programming form. Defaults (where applicable) are indicated in the Programming Form in this manual.
  • Page 14 Normal trouble restore report ( 71) is sent on restore of the condition. Note: The Radio should be programmed for device address 3 on the touchpad lines. ZONE SOUNDS AND SINGLE ALARM SOUNDING PER ZONE (1-Digit Entry) TIMING (Per Armed Period) ( 28 –...
  • Page 15 SUBSCRIBER ACCOUNT. No. (Enter up to 4 digits). Enter 0 as the first digit of a 4-digit account no. for nos. 0000–0999. End field by pressing (and press next field) if only 3 digits are used. This field is also used as the Long Range Radio Subscriber Account #. PHONE SYSTEM SELECT (1-Digit Entry) If Central Station Receiver is not on WATS line:...
  • Page 16 Examples of typical pager displays follow. The optional 16 digits (preceding the 7-digit status code) that may be programmed for additional data in field 90 have not been included in the examples below.       9 1 1 – 0 0 0 4   Example 1.
  • Page 17 With Ademco Contact ID Reporting: Enter any digit (other than "0") in TO PROGRAM SYSTEM STATUS the first box, to enable zone to report This is an "enabling" code only and is AND RESTORE disregarded in the actual reporting to the central office. Entries in the second REPORT CODES boxes will be ignored.
  • Page 18 BYPASS RESTORE REPORT CODE (2-Digit Entry) (See box on previous page) . This is sent when a zone that has been bypassed is un-bypassed. AC RESTORE REPORT CODE (2-Digit Entry) (See box on previous page) . Reports with Subscriber No. LOW BAT RESTORE REPORT CODE (2-Digit Entry) (See box on previous page).
  • Page 19 Will reset all program fields to the default values shown in the boxes in the ADT “Standard” Program Form starting on page 3. Key 97 only if ADT defaults were changed and you wish to return to the original factory-programmed ADT defaults.

  • Page 20: Remote Programming And Control (Downloading)

    Downloading is not permissible for UL installations unless an installer is present at the installation site. Equipment Required At the premises: • ADT Control and touchpad. At the installer's office/home: • An IBM PC compatible computer. • Either a HAYES brand SMARTMODEM 1200 [Level 1.2 or higher external or Level 1.1 or higher (with 4 position DIP switch) internal style], or a...

  • Page 21: Remote Programming Advisory Notes

    • Shut Down all Security System Functions (non-payment for a leased system). • Inhibit Local Touchpad Programming (prevents account takeover). • Read: Arming Status, AC Power Status, Lists of Faulted Zones, Bypassed Zones, Zones Currently in Alarm, Zones Currently in Trouble, and RF Sensors with Low Battery Conditions.
  • Page 22 – NOTES – – 22 –...

  • Page 23: Summary Of Connections Diagram

    THESE OPTIONAL ITEMS BATTERY FUSE OPTIONAL MAY ALSO BE USED (e.g. ADEMCO No. 90-12) FOR UP TO 16 RF EXPANSION ZONES GEL LEAD ACID TYPE. SEE THEIR INSTRUCTIONS FOR REPLACEMENT BATTERY NORMALLY NEED NOT BE USE SAME VALUE ADEMCO No. 5800TM ADEMCO 5881 Type REPLACED FOR AT LEAST 3 YRS.
  • Page 24 ADT Security Services, Inc. 1750 Clint Moore Rd. Boca Raton, FL 33431 Copyright © 2000 àN7227-2PRGDV2Uä N7227-2PRGDV2 1/00...
