Chapter 1
Getting
Started
This chapter provides you with
information how to connect and setup
the Unit.
10 US

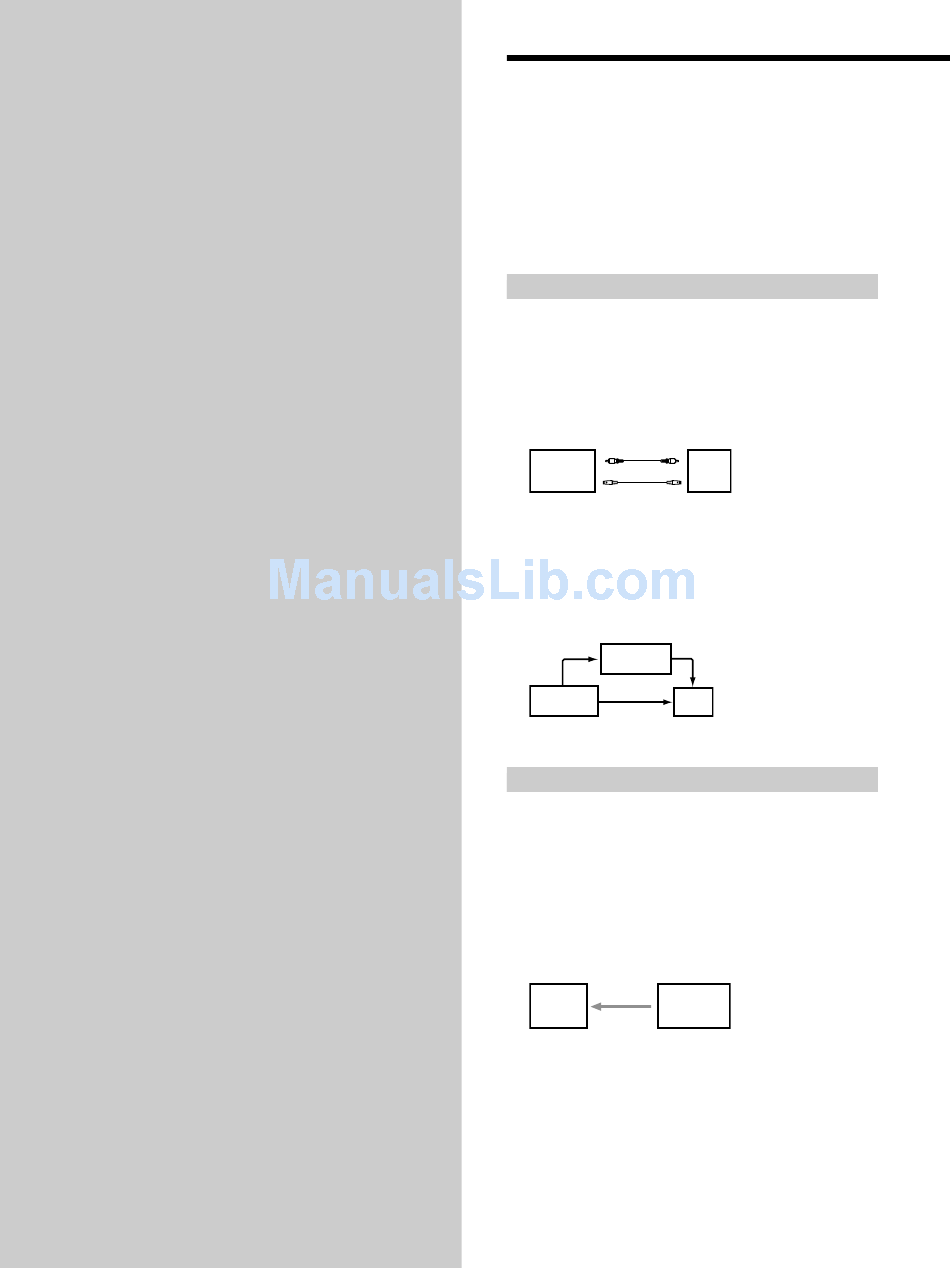

Setting up the System

Your system has already been installed by an installer.
If you want to change the configuration, the TV or the
audio equipment, check the location of the VIDEO out
jack, the LINE IN jack, and the IR IN/OUT jack. Contact
your nearest installer for details on the connections
required by the system.

Connecting a TV (DVP-NW50 only)

Connections between the Unit and each device are made
via cables or cords coming through the wall.
Connect the VIDEO OUT of the Unit to a TV.
Select one of the ways of connection methods shown
below, according to the input jack on your TV.
VIDEO cord (not supplied)
VIDEO OUT
or
of Unit
S VIDEO cord (not supplied)
Note
Do not connect a VCR, etc., between your TV and the
Unit. If you pass the Unit signals via the VCR, you may
not receive a clear image on the TV screen. If your TV has
only one video input jack, connect the Unit to this jack.
X X
VCR
VIDEO OUT
TV
of Unit
Connect directly

Connecting audio Equipment

Connections between the Unit and each of devices are
made via cables or cords coming through the wall.
The Unit can input sound from external audio equipment
via the audio connectors on the Unit. Connect the
OUTPUT jacks (L/R) of the audio equipment to the LINE
IN (L/R) jacks of the Unit using the proper audio cords
(optional).
Unit CD Changer
LINE IN LINE OUT
TV
