Sony CDP-791 Service Manual

CDP-791/X111ES
SERVICE MANUAL
SPECIFICATIONS
Compact disc player
Frequency response
Signal-to-notse ratio
Dynamic range
Harmonic distortion
Channel separation
Outputs
LINE OUT (FIXED)
(phono jacks)
LINE OUT
(VARIABLE)
(phono jacks)
DIGITAL OUT
(OPTICAL)
(optical output
connector)
PHONES
(stereo phone jack)
General
Power requirements
MICROFILM
2 Hz - 20 kHz + 0.5dB
More than 108 dB
More than 98 dB
Less than 0.0027%
More than 100 dB
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms
Output level max. 2 V (at 50 kilohms)
Load impedance over 50 kilohms
Wave length 660 nm
Output fevel — 18 dBm
Output level max. 10 mW
Load impedance 32 ohms
US, Canadian Modei:
120 V AC, 60 Hz
AEP Model:
220 V — 230 V AC, 50/60 Hz
UK Model:
240 V AC, 50 Hz
US Model
Canadian Model
CDP-X111ES
AEP Model
UK Model
CDP-791

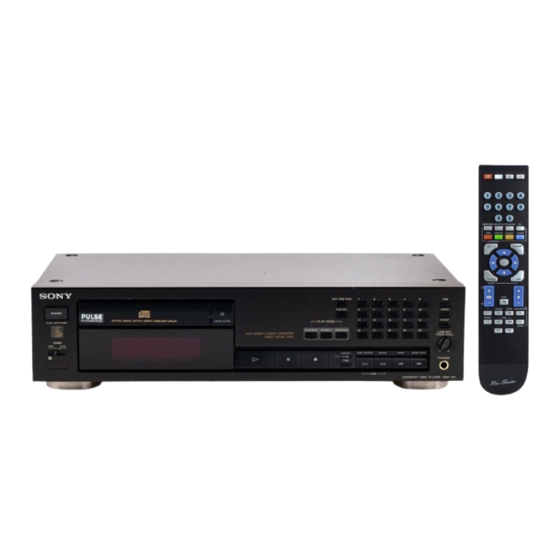

Photo: CDP-791
Model Name Using Similar Mechanism | CDP-291/391
CDM14-5BD1
Optcal Pick-Up Block Type BU-5BD1
CD Mechanism Type
Power consumption. 12W
Dimensions {approx., 430110280 mm (w/h/d)
including projections) (1747/4 11'/e inches)
Weight (approx.) 4.0 kg (8 Ibs 14 07)
Supplied accessories
(2 phono plugs - 2 phono plugs)
Remote commander 1
R6 (AA) batteries 2
Remote commander RM-D791
Remote control
sysiem
Infrared contro!
Power requirements 3 VDC with two R6 (size AA) batteries
Dimensions Approx. 62 X 20 X 175 mm (w/h/d)
(1°/5X °/i6X 7 inches)
Weight Approx. 130 g (4.6 02)
Including batteries
Design and specifications subject to change without notice.
COMPACT DISC PLAYER
