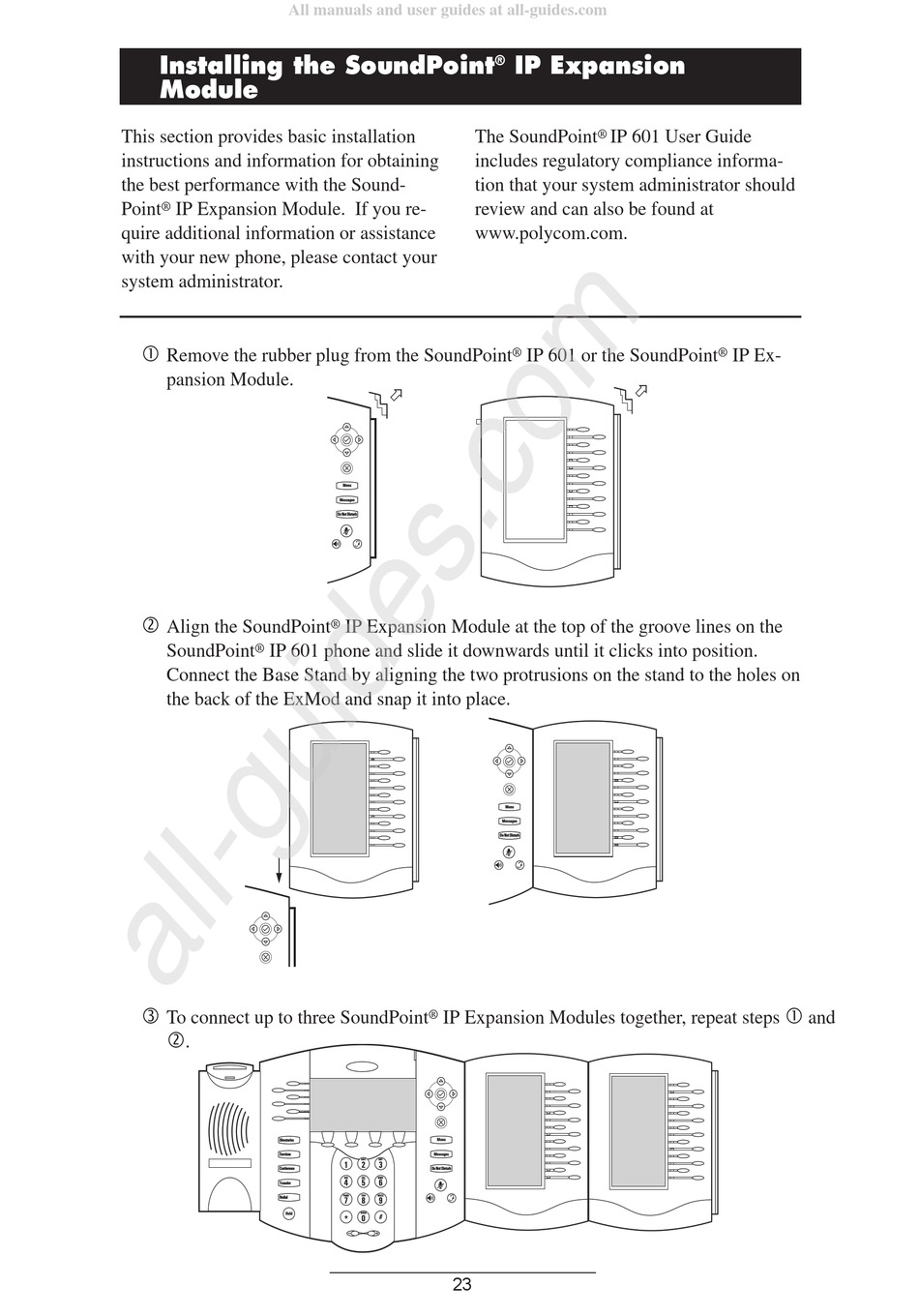

Installing the SoundPoint
Module
This section provides basic installation
instructions and information for obtaining
the best performance with the Sound-
Point IP Expansion Module. If you re-
®
quire additional information or assistance
with your new phone, please contact your
system administrator.

