www.ti.com
LMZ14201 1A SIMPLE SWITCHER® Power Module with 42V Maximum Input Voltage
FEATURES
1
Integrated Shielded Inductor
2
Simple PCB Layout
Flexible Startup Sequencing Using External
Soft-start and Precision Enable
Protection Against Inrush Currents and Faults
such as Input UVLO and Output Short Circuit
– 40°C to 125°C Junction Temperature Range
Single Exposed Pad and Standard Pinout for
Easy Mounting and Manufacturing
Fast Transient Response for Powering FPGAs
and ASICs
Low Output Voltage Ripple
Pin-to-pin Compatible Family:
– LMZ14203/2/1 (42V Max 3A, 2A, 1A)
– LMZ12003/2/1 (20V Max 3A, 2A, 1A)
Fully Enabled for Webench® Power Designer
APPLICATIONS
Point of Load Conversions from 12V and 24V
Input Rail
Time Critical Projects
Space Constrained / High Thermal
Requirement Applications
Negative Output Voltage Applications
(See AN-2027)
SNVA425

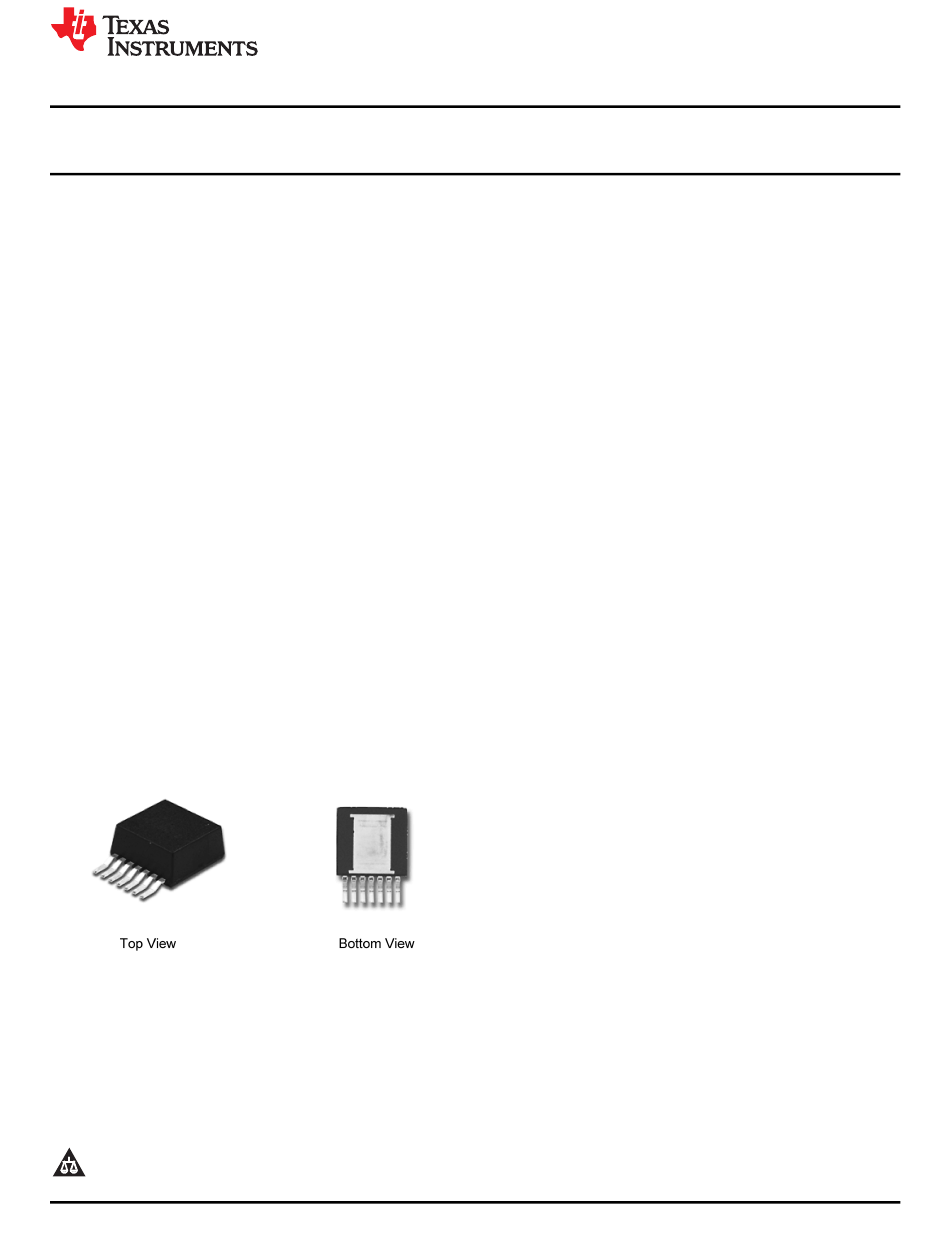

Figure 1. Easy To Use 7 Pin Package
PFM 7 Pin Package
10.16 x 13.77 x 4.57 mm (0.4 x 0.542 x 0.18 in)
θ
= 20°C/W, θ
JA
RoHS Compliant
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
All trademarks are the property of their respective owners.
2
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Check for Samples:
= 1.9°C/W
JC
SNVS649E – JANUARY 2010 – REVISED MARCH 2013
LMZ14201
DESCRIPTION
The LMZ14201 SIMPLE SWITCHER power module
is an easy-to-use step-down DC-DC solution capable
of driving up to 1A load with exceptional power
conversion efficiency, line and load regulation, and
output accuracy. The LMZ14201 is available in an
innovative
package
performance and allows for hand or machine
soldering.
The LMZ14201 can accept an input voltage rail
between 6V and 42V and deliver an adjustable and
highly accurate output voltage as low as 0.8V. The
LMZ14201 only requires three external resistors and
four external capacitors to complete the power
solution. The LMZ14201 is a reliable and robust
design with the following protection features: thermal
shutdown, input under-voltage lockout, output over-
voltage protection, short-circuit protection, output
current limit, and allows startup into a pre-biased
output. A single resistor adjusts the switching
frequency up to 1 MHz.
ELECTRICAL SPECIFICATIONS
6W Maximum Total Output Power
Up to 1A Output Current
Input Voltage Range 6V to 42V
Output Voltage Range 0.8V to 6V
Efficiency up to 90%
PERFORMANCE BENEFITS
Operates at High Ambient Temperature with
no Thermal Derating
High Efficiency Reduces System Heat
Generation
Low Radiated Emissions (EMI) Complies with
EN55022 Class B Standard
Low External Component Count
Copyright © 2010–2013, Texas Instruments Incorporated
LMZ14201
that
enhances
thermal

Advertisement

Table of Contents
loading

Summary of Contents for Texas Instruments LMZ14201 SIMPLE SWITCHER

  • Page 1 Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. All trademarks are the property of their respective owners.
  • Page 2: System Performance

    AMBIENT TEMPERATURE (° C) Radiated Emissions (EN 55022 Class B) from Evaluation Board 80.0 70.0 60.0 50.0 EN 55022 CLASS B LIMIT 40.0 30.0 20.0 10.0 1000 FREQUENCY (MHz) Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 3: Connection Diagram

    These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 4: Operating Ratings

    (1) Absolute Maximum Ratings are limits beyond which damage to the device may occur. Operating Ratings are conditions under which operation of the device is intended to be functional. For ensured specifications and test conditions, see the Electrical Characteristics. (2) If Military/Aerospace specified devices are required, please contact the Texas Instruments Sales Office/ Distributors for availability and specifications.
  • Page 5: Electrical Characteristics

    1.705” x 3.0” four layer board, with one ounce copper, thirty five 12 mil thermal vias, no air flow, and 1W power dissipation. Refer to PCB layout diagrams Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 6: Typical Performance Characteristics

    Figure 5. Figure 6. Efficiency 24V Input @ 25°C Dissipation 24V Input @ 25°C 25° C 25° C OUTPUT CURRENT (A) OUTPUT CURRENT (A) Figure 7. Figure 8. Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 7 Efficiency 6V Input @ 85°C Dissipation 6V Input @ 85°C 0.45 0.375 0.225 0.15 85° C 0.075 85° C OUTPUT CURRENT (A) OUTPUT CURRENT (A) Figure 13. Figure 14. Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 8 Figure 17. Figure 18. Efficiency 24V Input @ 85°C Dissipation 24V Input @ 85°C 85° C 85° C OUTPUT CURRENT (A) OUTPUT CURRENT (A) Figure 19. Figure 20. Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 9 3.36 3.32 3.34 3.30 3.32 8 12 3.28 3.30 3.26 3.28 25° C 85° C 3.24 3.26 OUTPUT CURRENT (A) OUTPUT CURRENT (A) Figure 25. Figure 26. Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 10 @ 25°C Current Limit 3.3V @ 85°C SHORT CIRCUIT SHORT CIRCUIT ONSET ONSET 25° C 85° C INPUT VOLTAGE (V) INPUT VOLTAGE (V) Figure 31. Figure 32. Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 11: Application Block Diagram

    SNVS649E – JANUARY 2010 – REVISED MARCH 2013 APPLICATION BLOCK DIAGRAM VIN 1 Linear reg Cvcc 0.47 PF VOUT Timer 10 PH Internal Regulator IC Passives Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 12 Rearranging terms; the ratio of the feedback resistors for a desired output voltage is: = (V / 0.8V) - 1 These resistors should be chosen from values in the range of 1.0 kohm to 10.0 kohm. Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 13 (As a point of reference, the worst case ripple current will occur when the module is presented with full load current and when V = 2 * V Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 14 In CCM, current flows through the inductor through the entire switching cycle and never falls to zero during the off-time. The switching frequency remains relatively constant with load current and line voltage variations. The CCM operating frequency can be calculated using Equation 7 above. Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 15 1 oz. copper on both the top and bottom metal layers is: Board Area_cm = 500°C x cm /W / θ (19) Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 16: Pc Board Layout Guidelines

    For best results use a 6 x 6 via array with minimum via diameter of 10mils (254 μm) thermal vias spaced 59mils (1.5 mm). Ensure enough copper area is used for heat-sinking to keep the junction temperature below 125°C. Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 17 Figure 35. Pre-Biased Startup OUTPUT 3.3V OUTPUT VOLTAGE 1.0 V/Div 2V PRE-BIAS 0.5 A/Div OUTPUT CURRENT 2.0 V/Div ENABLE 1 ms/Div Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 18 Vishay Dale CRCW060368k1FKEA 11.8 kΩ 0603 Vishay Dale CRCW060311k8FKEA 22 nF, ±10%, X7R, 16V 0603 C1608X7R1H223K 22 nF, ±10%, X7R, 16V 0603 C1608X7R1H223K 5.1V SOD-23 — Optional Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 19 LMZ14201 www.ti.com SNVS649E – JANUARY 2010 – REVISED MARCH 2013 Figure 36. Top View and Bottom View of Evaluation PCB Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 20: Revision History

    SNVS649E – JANUARY 2010 – REVISED MARCH 2013 www.ti.com REVISION HISTORY Changes from Revision D (March 2013) to Revision E Page • Changed layout of National Data Sheet to TI format ......................Submit Documentation Feedback Copyright © 2010–2013, Texas Instruments Incorporated Product Folder Links: LMZ14201...
  • Page 21: Packaging Information

    PACKAGE OPTION ADDENDUM www.ti.com 16-Aug-2013 PACKAGING INFORMATION Orderable Device Status Package Type Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Op Temp (°C) Device Marking Samples Drawing (4/5) LMZ14201TZ-ADJ/NOPB ACTIVE TO-PMOD Green (RoHS CU SN Level-3-245C-168 HR -40 to 85 LMZ14201 &...
  • Page 22 PACKAGE OPTION ADDENDUM www.ti.com 16-Aug-2013 In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis. Addendum-Page 2...
  • Page 23: Tape And Reel Information

    PACKAGE MATERIALS INFORMATION www.ti.com 16-Aug-2013 TAPE AND REEL INFORMATION *All dimensions are nominal Device Package Package Pins Reel Reel Pin1 Type Drawing Diameter Width (mm) (mm) (mm) (mm) (mm) Quadrant (mm) W1 (mm) LMZ14201TZ-ADJ/NOPB 330.0 24.4 10.6 14.22 16.0 24.0 PMOD LMZ14201TZX-ADJ/NOP 330.0...
  • Page 24 PACKAGE MATERIALS INFORMATION www.ti.com 16-Aug-2013 *All dimensions are nominal Device Package Type Package Drawing Pins Length (mm) Width (mm) Height (mm) LMZ14201TZ-ADJ/NOPB TO-PMOD 367.0 367.0 45.0 LMZ14201TZX-ADJ/NOPB TO-PMOD 367.0 367.0 45.0 Pack Materials-Page 2...
  • Page 25: Mechanical Data

    MECHANICAL DATA NDW0007A BOTTOM SIDE OF PACKAGE TOP SIDE OF PACKAGE TZA07A (Rev D) www.ti.com...
  • Page 26: Important Notice

    IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
