Makita 2702 Technical Information

Hide thumbs Also See for 2702:
1
2
3
4
5

Advertisement

Quick Links

Download this manual
T
ECHNICAL INFORMATION
Models No.
Description
C
ONCEPT AND MAIN APPLICATIONS
Model 2702,2703 are improved versions of the existing Model
2708.Their brief benefits are;
*Large table
*Easy operation for adjusting depth of cut and bevel angle
*Excellent chip/sawdust ejection
*Self-a1igning rip fence with a single handle control
*Tool storage pocket
*Epuipped with electric brake
*Switch is equipped with auto-off function, which will
automatically change swirch position from "ON" to "OFF"
when power down while switch-on. (Only for Europe)
S
pecifications
Voltage (V)
Current (A)
100
120
220
230
240
No load speed
Arbor diameter
Blade diameter
Net weight
Cord length
Cutting capacities (HxW)
0
45
S
tandard equipment
Ruler Ass' y------------------------------------------------ 1 pc.
Angle Rule Ass' y----------------------------------------- 1 pc.
Wrench 19-------------------------------------------------- 1 pc.
Wrench 13-22---------------------------------------------- 1 pc.
Holder Cap Opener---------------------------------------- 1 pc.
Ring---------------------------------------------------------- 1 pc. (except for U.S. A. ,Canada, Mexico and Europe)
T.C.T. Saw Blade 210(2702)----------------------------- 1 pc.
T.C.T. Saw Blade 255(2703)----------------------------- 1 pc.
Stand Set----------------------------------------------------- 1 pc. (For Europe)
O
ptional accessories
Stand Set
Subtable R,L
Dado Head Set(For U.S.A.,Canada and Mexico)
The standard equipment for the tools shown may differ from country to country.
2702

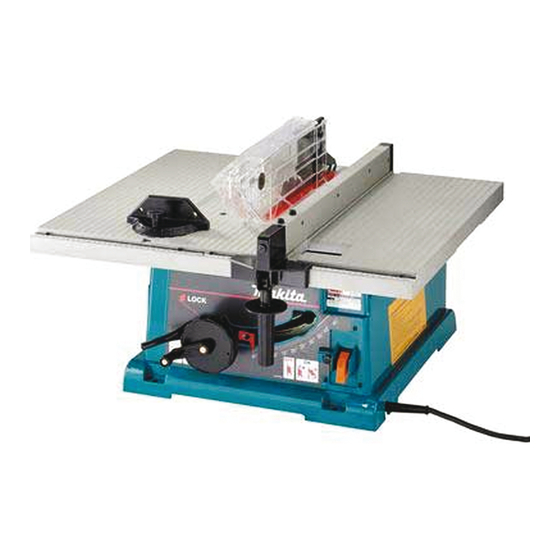

210mm(8-1/4"),255mm(10")Table Saw
Cycle (Hz)
15.0
50/60
15.0
50/60
7.9
50/60
7.5
50/60
7.2
50/60
U.S.A.,Canada and Mexico
Europe(2702 only)
Other countries
2702
2703
68mm(2-11/16")
47mm(1-3/4")
686mm (27")
Continuous Rating (W)
Input
Output
1430
1650
1650
1650
1650
4,600rpm
15.88mm(5/8")
30mm
25.4mm(1")
210mm(8-1/4")
255mm(10")
18Kg(40.01bs)
2.5m(8.2ft)
2702
Joint (connecting to Vacuum Cleaner 406 or 410)
Center Cover(For U.S.A.,Canada and Mexico)
Outer Flange(For U.S.A.,Canada and Mexico)
560mm (22")
Max. Output(W)
760
1900
950
2200
950
2200
950
2200
950
2200
2703
91mm(3-9/16")
63mm(2-1/2")
New Tool

Advertisement

loading

Related Manuals for Makita 2702

Summary of Contents for Makita 2702

  • Page 1 New Tool Models No. 2702 Description 210mm(8-1/4"),255mm(10")Table Saw ONCEPT AND MAIN APPLICATIONS Model 2702,2703 are improved versions of the existing Model 686mm (27") 2708.Their brief benefits are; 560mm (22") *Large table *Easy operation for adjusting depth of cut and bevel angle...
  • Page 2 Greasing Before assembling, grease the MAKITA grease on the turntable and moving faces shown below. Movable points on the frame Frame - moving face between slide sheets Frame retainer - Moving face between leaf springs Up/down guide shaft, up/down screws, teeth for up/down on the motor(saw)
  • Page 3 Assembling the frame to the motor 1. Set the flat washer 12(2 pieces) on the screw bar, and assemble the bevel gear mounted with the spring pin on the gear housing. 2. Insert the guide bar into the gear housing. 3.
  • Page 4 Assembling the frame to the table Adjust the adjust block so that the saw cutter can be parallel to the cutter edge of the table.(It can be adjusted after assembling.) Cutter edge of the table Assemble so that these space may become the same.

  • Page 5: C Ircuit Drawing

    ircuit drawing Circuit drawing : <Low pressure specifications>( :connector at closed end) White White Cab tire cord Yellow Black Black Switch Filed Noise Supressor Note: The Noise Supressor is not used in some areas. White White Cab tire cord Yellow Black Black Switch...
