SPECIFICATIONS
Model
Blade diameter .......................................... 210 mm
Hole (arbor) diameter ................................ 25 mm
Cutting capacities ...................................... 90°: 68 mm
Table size (W x L) ..................................... 686 mm x 560 mm
No load speed (RPM) ............................... 4,600
Dimensions (L x W x H) ............................ 560 mm x 686 mm x 458 mm
Net weight ................................................. 18 kg
Due to the continuing program of research and development, the specifications herein are subject to change without
prior notice.
Note: Specifications may differ from country to country.
Power supply
The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only
be operated on single-phase AC supply. They are double-insulated in accordance with European Standard and can,
therefore, also be used from sockets without earth wire.

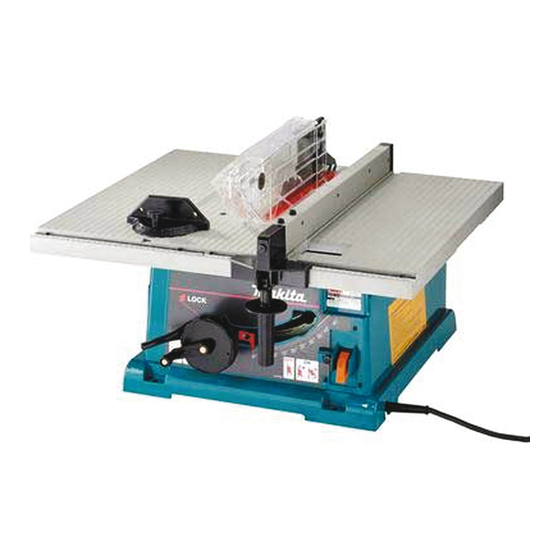

Table Saw
210 m m 2702
255m m 2703
2702
2702x1
45°: 47 mm
2702x1
2703x1
2703
2703x1
255 mm
25 mm
91 mm
63 mm
686 mm x 560 mm
4,600
560 mm x 686 mm x 458 mm
18 kg
Advertisement
Related Manuals for Makita 2702
Summary of Contents for Makita 2702
- Page 1 Table Saw 210 m m 2702 2702x1 255m m 2703 2703x1 SPECIFICATIONS Model 2702 2703 2702x1 2703x1 Blade diameter .......... 210 mm 255 mm Hole (arbor) diameter ........ 25 mm 25 mm Cutting capacities ........90°: 68 mm 91 mm 45°: 47 mm...
- Page 3 20 21 12-A 12-B...
- Page 6 Symbols The followings show the symbols used for the tool. Be sure that you understand their meaning before use. Read instruction manual. DOUBLE INSULATION...
-
Page 7: Safety Instructions
ENGLISH Explanation of general view Offset wrench 13-22 17 5 mm or less 35 Scale plate Wrench 19 18 Miter gauge 36 Arrow pointer Loosen 19 Rip fence 37 Groove Inner flange 20 Lower 38 Knob Ring 21 Raise 39 Push stick Saw blade 22 Handle 40 Wood or plastic facing... -
Page 8: Additional Safety Rules
20. Check damaged parts Remove wrenches, cut-off pieces, etc. from the Before further use of the tool, a guard or other part table before the switch is turned on. that is damaged should be carefully checked to Never wear gloves during operation. determine that it will operate properly and perform 10. - Page 9 • Use the following saw blade. Do not use saw blades which do not comply with the characteristics specified in these instructions. For Model Max. dia. Min. dia. Blade thickness Kerf 2702 210 mm 203 mm 1,4 mm or less 1,6 mm or more 2702x1 2703...
- Page 10 Adjusting positive stops Operation The tool is equipped with positive stops at 90° and 45° to CAUTION: the table surface. To check and adjust the positive stops, • Always use “work helpers” such as push sticks and proceed as follows: push blocks when there is a danger that your hands or Move the handwheel as far as possible by turning it.
-
Page 11: Maintenance
Both identical carbon brushes should be CAUTION: replaced at the same time. This is a special stand built precisely for this Makita table To maintain product safety and reliability, repairs, mainte- saw. Do not use it for other type tools. - Page 12 Makita Corporation Anjo, Aichi, Japan 884129B8...
