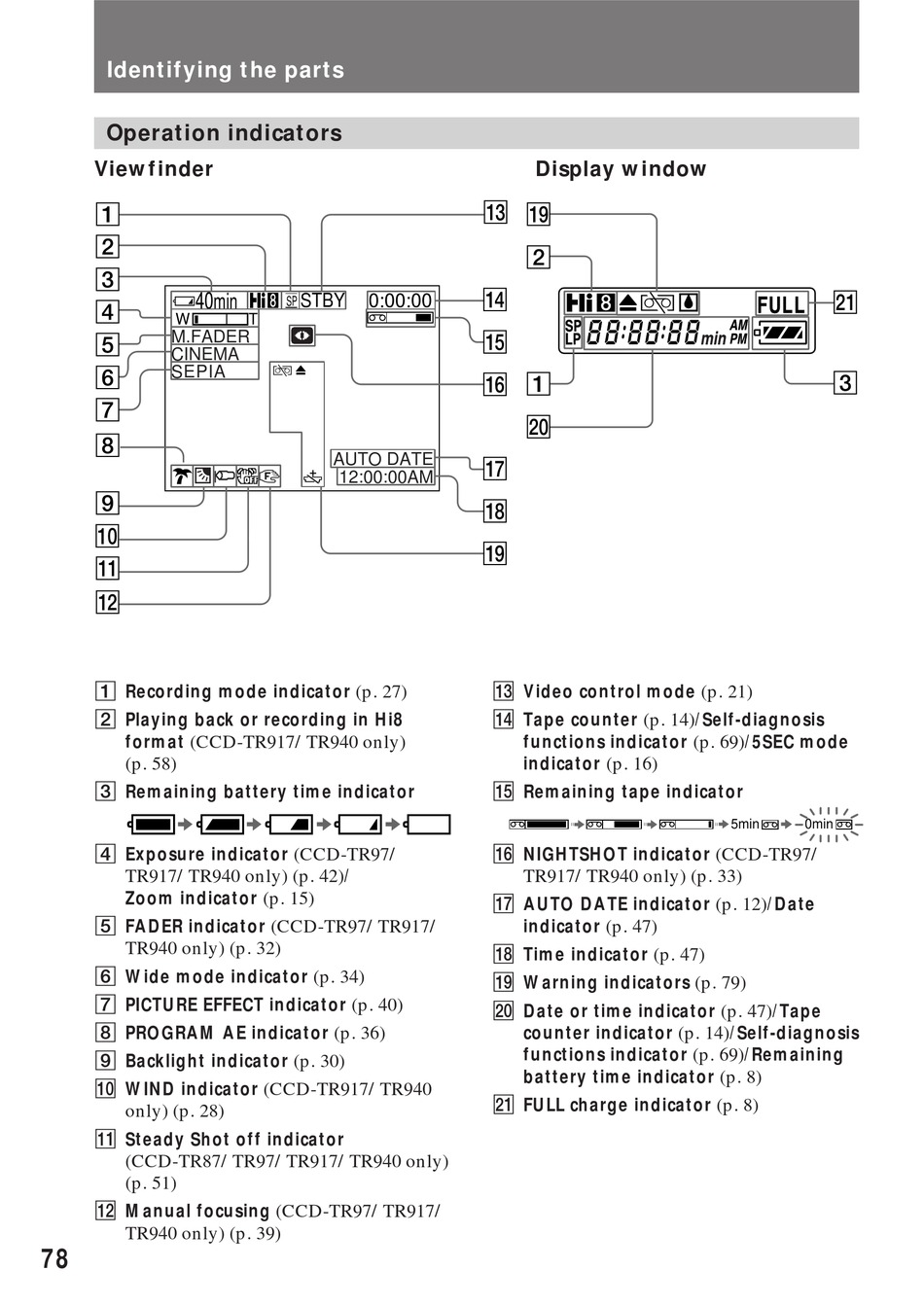

Identifying the parts
Operation indicators
Viewfinder
1
2
3
40
min
4
W
M.FADER
5
CINEMA
6 SEPIA
7
8
c „
9
0
!¡
!™
1 Recording mode indicator (p. 27)
2 Playing back or recording in Hi8
format (CCD-TR917/TR940 only)
(p. 58)
3 Remaining battery time indicator
4 Exposure indicator (CCD-TR97/
TR917/TR940 only) (p. 42)/
Zoom indicator (p. 15)
5 FADER indicator (CCD-TR97/TR917/
TR940 only) (p. 32)
6 Wide mode indicator (p. 34)
7 PICTURE EFFECT indicator (p. 40)
8 PROGRAM AE indicator (p. 36)
9 Backlight indicator (p. 30)
0 WIND indicator (CCD-TR917/TR940
only) (p. 28)
!¡ Steady Shot off indicator
(CCD-TR87/TR97/TR917/TR940 only)
(p. 51)
!™ Manual focusing (CCD-TR97/TR917/
TR940 only) (p. 39)
78
H
STBY 0:00:00
SP
T
AUTO DATE
f
12:00:00AM
Display window
!£
!ª
2
!¢
!∞
1
!§
@º
!¶
!•
!ª
!£ Video control mode (p. 21)
!¢ Tape counter (p. 14)/Self-diagnosis
functions indicator (p. 69)/5SEC mode
indicator (p. 16)
!∞ Remaining tape indicator
!§ NIGHTSHOT indicator (CCD-TR97/
TR917/TR940 only) (p. 33)
!¶ AUTO DATE indicator (p. 12)/Date
indicator (p. 47)
!• Time indicator (p. 47)
!ª Warning indicators (p. 79)
@º Date or time indicator (p. 47)/Tape
counter indicator (p. 14)/Self-diagnosis
functions indicator (p. 69)/Remaining
battery time indicator (p. 8)
@¡ FULL charge indicator (p. 8)
@¡
