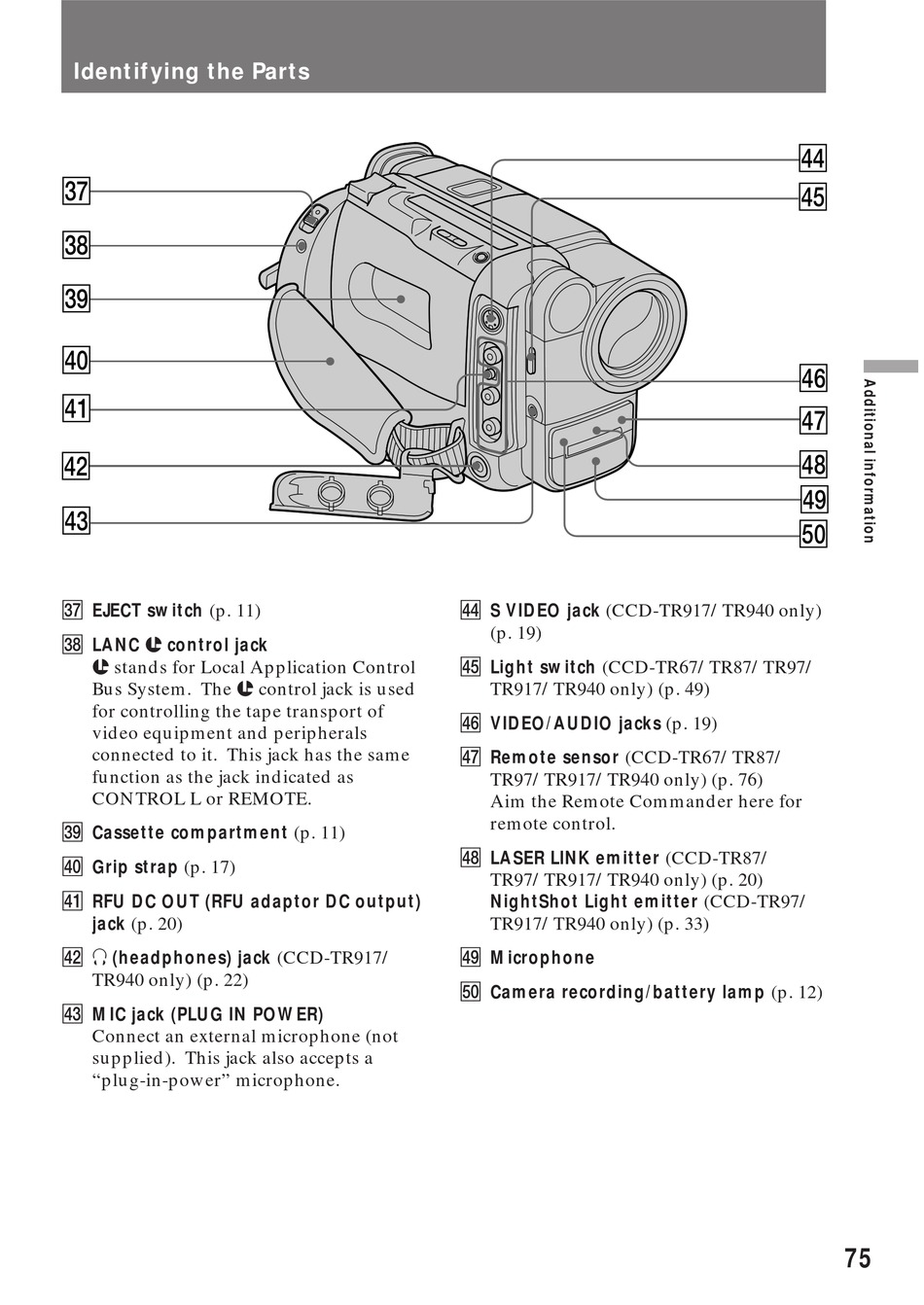

Identifying the Parts
#¶
#•
#ª
$º
$¡
$™
$£
#¶ EJECT switch (p. 11)
#• LANC l control jack
l stands for Local Application Control
Bus System. The l control jack is used
for controlling the tape transport of
video equipment and peripherals
connected to it. This jack has the same
function as the jack indicated as
CONTROL L or REMOTE.
#ª Cassette compartment (p. 11)
$º Grip strap (p. 17)
$¡ RFU DC OUT (RFU adaptor DC output)
jack (p. 20)
$™ 2 (headphones) jack (CCD-TR917/
TR940 only) (p. 22)
$£ MIC jack (PLUG IN POWER)
Connect an external microphone (not
supplied). This jack also accepts a
"plug-in-power" microphone.
$¢ S VIDEO jack (CCD-TR917/TR940 only)
(p. 19)
$∞ Light switch (CCD-TR67/TR87/TR97/
TR917/TR940 only) (p. 49)
$§ VIDEO/AUDIO jacks (p. 19)
$¶ Remote sensor (CCD-TR67/TR87/
TR97/TR917/TR940 only) (p. 76)
Aim the Remote Commander here for
remote control.
$• LASER LINK emitter (CCD-TR87/
TR97/TR917/TR940 only) (p. 20)
NightShot Light emitter (CCD-TR97/
TR917/TR940 only) (p. 33)
$ª Microphone
%º Camera recording/battery lamp (p. 12)
$¢
$∞
$§
$¶
$•
$ª
%º
75
