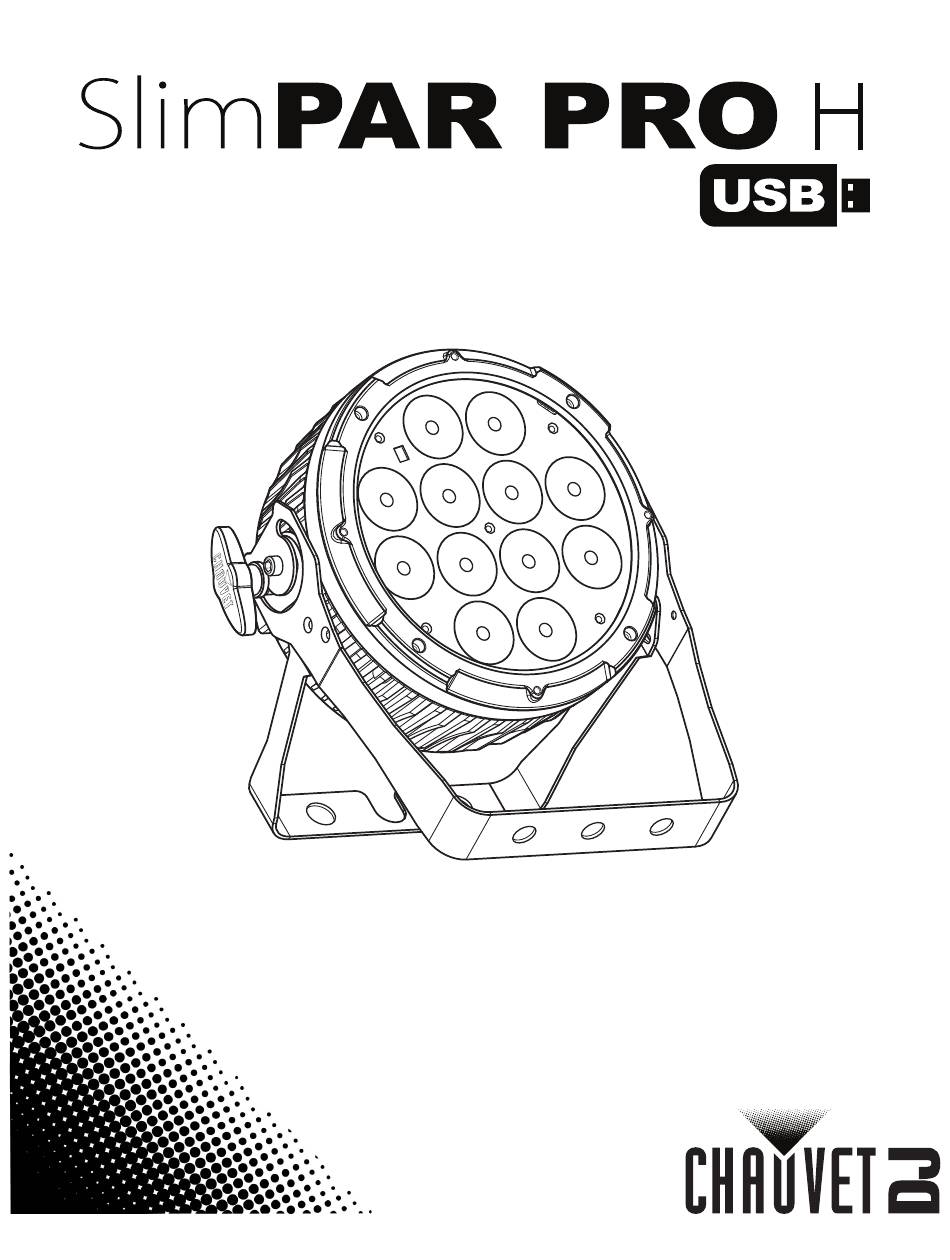

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Dimmer Speed Mode ..................... IRC-6 Infrared Remote Control ................IRC-6 Operation ......................10 Master/Slave Mode (Wired) ..................Master/Slave Mode (D-Fi USB)................5. Maintenance....................Product Maintenance ....................6. Technical Specifications................Returns ......................Contact Us......................SlimPAR PRO H USB User Manual Rev. 5...

  • Page 3: Before You Begin

    Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and SlimPAR PRO H USB are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.

  • Page 4: Safety Notes

    Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Page 2 of 15 SlimPAR PRO H USB User Manual Rev. 5...

  • Page 5: Introduction

    WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product. Product Dimensions 10 in 3.9 in 253 mm 98 mm 11.4 in 290 mm SlimPAR PRO H USB User Manual Rev. 5 Page 3 of 15...

  • Page 6: Setup

    3. Setup AC Power The SlimPAR PRO H USB has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.

  • Page 7: Mounting

    Gel Frame Holder The SlimPAR PRO H USB comes with a gel frame and a gel frame holder, which can be attached with the included screws. The gel frame holder can easily fit 7.5 inch barn doors, such as the Ovation 7.5" Barndoor from CHAUVET Professional.

  • Page 8: Operation

    Infrared Enables or disables infrared control Mode Configuration (DMX) The SlimPAR PRO H USB works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/ DMX_Primer_rev05_WO.pdf. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses.

  • Page 9: D-Fi Usb Connectivity

    D-Fi USB Connectivity The SlimPAR PRO H USB is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D- Fi receiving/transmitting channel, then plug it into the D-Fi USB port.

  • Page 10: Dmx Channel Assignments And Values

    000  255 0–100% Green 000  255 0–100% Blue 000  255 0–100% Amber 000  255 0–100% White 000  255 0–100% Ultraviolet 000  255 0–100% Page 8 of 15 SlimPAR PRO H USB User Manual Rev. 5...

  • Page 11: Configuration (Standalone)

    5. Repeat steps 3 and 4 until the color is set as desired. Dimmer Speed Mode To change the dimmer speed mode on the SlimPAR PRO H USB, follow the instructions below. 1. Press <MENU> repeatedly until dIM shows on the display.

  • Page 12: Irc-6 Infrared Remote Control

    Operation IRC-6 Infrared Remote Control The SlimPAR PRO H USB is compatible with the IRC-6 infrared remote control from Chauvet. To set the SlimPAR PRO H USB to IR mode, follow the instructions below: 1. Press <MENU> repeatedly until SEr shows on the display.

  • Page 13: Master/Slave Mode (Wired)

    Master/Slave Mode (D-Fi USB) The D-Fi USB allows a single SlimPAR PRO H USB product (the “master”) to control the actions of one or more SlimPAR PRO H USB products (the “slaves”) without the need of a DMX controller or DMX cables.

  • Page 14: Maintenance

    6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 12 of 15 SlimPAR PRO H USB User Manual Rev. 5...

  • Page 15: Technical Specifications

    Ordering Product Name Item Code UPC Number SlimPAR PRO H USB (black) 03031132 781462214807 SlimPAR PRO H USB (white) 03031280 781462216283 UL 1573 CSA C22.2 No. 166 E113093 SlimPAR PRO H USB User Manual Rev. 5 Page 13 of 15...

  • Page 16: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 14 of 15 SlimPAR PRO H USB User Manual Rev. 5...

  • Page 17: Contact Us

    Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details. SlimPAR PRO H USB User Manual Rev. 5 Page 15 of 15...
