Summary of Contents for Chauvet DJ SlimPAR PRO W USB

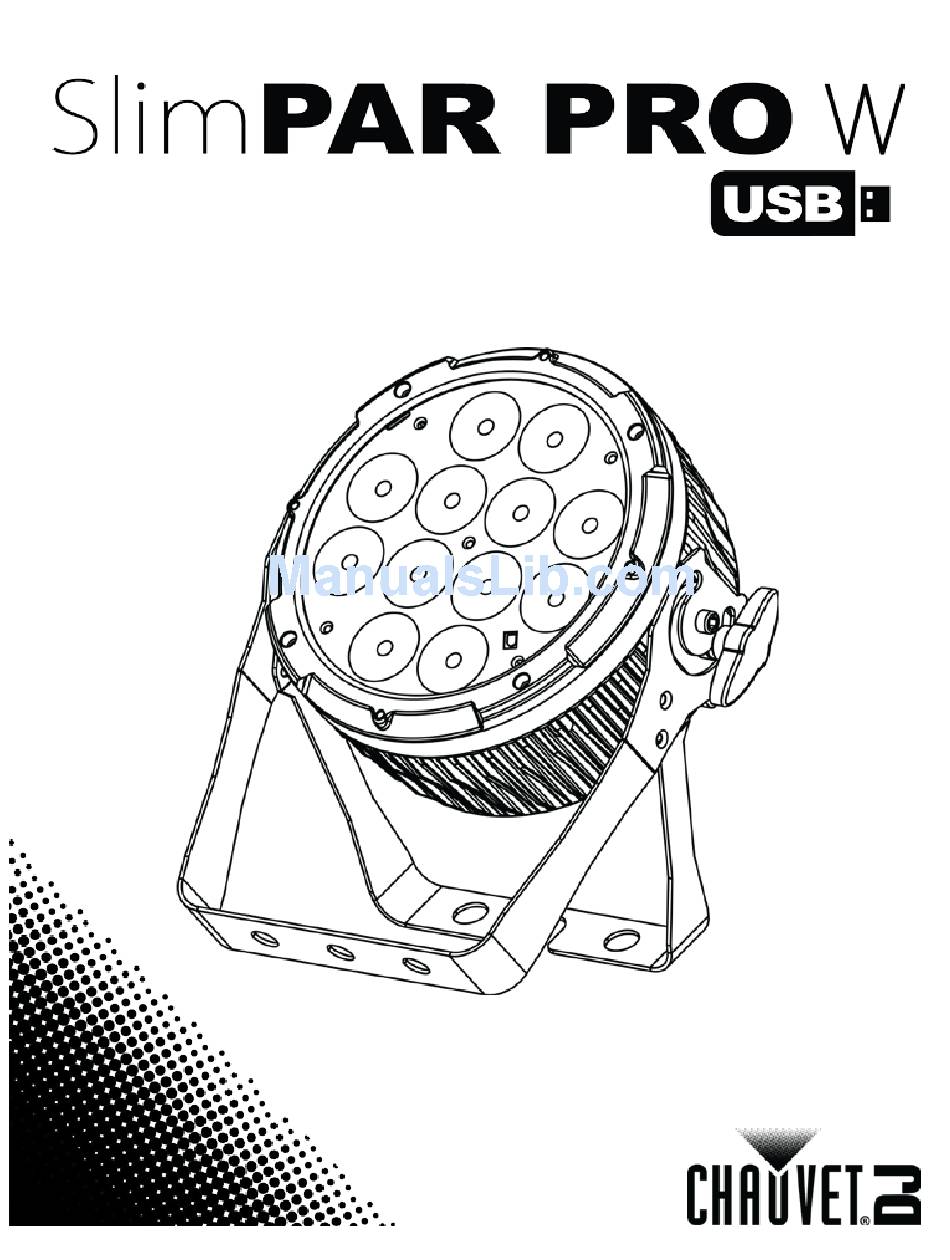

- Page 1 User Manual...
-
Page 2: Table Of Contents
Master/Slave Mode (wired) ......................14 Master/Slave Mode (D-Fi USB) ....................14 5. Maintenance ........................15 Product Maintenance ........................15 6. Technical Specifications ....................16 Returns..........................17 Contact Us .......................... 18 Page 2 of 18 SlimPAR PRO W USB User Manual Rev. 4... -
Page 3: Before You Begin
© Copyright 2018 Chauvet & Sons, LLC. All rights reserved. Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, SlimPAR PRO W USB, and D-Fi USB are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. -
Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 4 of 18 SlimPAR PRO W USB User Manual Rev. 4... -
Page 5: Introduction
Back Panel View Lenses IR Sensor Front View WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may damage the product. SlimPAR PRO W USB User Manual Rev. 4 Page 5 of 18... -
Page 6: Product Dimensions
Product Dimensions 10 in 253 mm 11.4 in 290 mm 3.9 in 98 mm Page 6 of 18 SlimPAR PRO W USB User Manual Rev. 4... -
Page 7: Setup
Additional Products You can power link up to 9 SlimPAR PRO W USB products on 120 VAC or up to 17 SlimPAR PRO W USB products on 230 VAC. The power linking diagram corresponds to the North American version of the... -
Page 8: Mounting
Bracket Adjustment Knob x 2 The SlimPAR PRO W USB comes with a gel frame and a gel frame holder, which can Gel Frame be attached with the included screws. The gel frame holder can easily fit 7.5 inch barn Holder doors, such as the Ovation 7.5”... -
Page 9: Operation
Address The SlimPAR PRO W USB uses up to 9 DMX channels in a 9-CH DMX mode, which defines the highest configurable address to 504. If you are not familiar with the DMX protocol, download the DMX Primer from www.chauvetdj.com. -
Page 10: Dmx Linking
DMX Linking The SlimPAR PRO W USB works with a DMX controller. Information about DMX is in the CHAUVET Primer, which available from Chauvet website http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf. Set the product in DMX mode to control with a DMX controller. Configuration Connect the product to a suitable power outlet. -
Page 11: Dmx Channel Assignments And Values
Cool White 000 ó 255 0–100% Amber Channel Function Value Percent/Setting 3-CH 000 ó 255 0–100% Warm White 000 ó 255 0–100% Cool White 000 ó 255 0–100% Amber SlimPAR PRO W USB User Manual Rev. 4 Page 11 of 18... -
Page 12: Configuration (Standalone)
Use <UP> and <DOWN> to increase or decrease the sound sensitivity (u--0–100). Press <ENTER>. The product will return to the last selected mode. To run the SlimPAR PRO W USB in preset color mode, follow the instructions below: Preset Color Press <MENU>... -
Page 13: Irc-6 Infrared Remote Control
IRC-6 Infrared The SlimPAR PRO W USB is compatible with the IRC-6 infrared remote control from Chauvet. To activate IR mode, follow the instructions below: Remote Press <MENU> repeatedly until SEr shows on the display. Control Press <ENTER> to accept. -
Page 14: Master/Slave Mode (Wired)
Master/Slave The Master/Slave mode allows a single SlimPAR PRO W USB product (the “master”) to control the actions of one or more SlimPAR PRO W USB products (the “slaves”) without Mode the need of a DMX controller. The master product will be set to operate in either Stand-... -
Page 15: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. SlimPAR PRO W USB User Manual Rev. 4 Page 15 of 18... -
Page 16: Technical Specifications
Channel Range 3-pin XLR 3, 4 or 9 Ordering Product Name Item Code UPC Number SlimPAR PRO W USB (black) 03031133 781462214814 SlimPAR PRO W USB (white) 03031281 781462216290 Page 16 of 18 SlimPAR PRO W USB User Manual Rev. 4... -
Page 17: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). SlimPAR PRO W USB User Manual Rev. 4 Page 17 of 18... -
Page 18: Contact Us
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details Page 18 of 18 SlimPAR PRO W USB User Manual Rev. 4...
