Simplicity / Snapper ZTR
Adjustment
Procedures

Seat Adjustments

The seat and ground speed control levers should be
adjusted so that operator's elbows are supported by the
arm rests when his/her hands are on the controls, and
the ground speed control levers can be moved through
their full range of motion without contacting the operator's
legs.
Seat Position Adjustment
The seat can be adjusted forward and back. Move the
adjustment lever (A, Figure 10) towards the left hand side
of the machine, slide the seat to the desired position, and
release the adjustment lever.
Ground Speed Control
Lever Adjustment

Operator Adjustment

The control levers can be adjusted in three ways. The
alignment of the control levers, the placement of the
levers (how close the ends are to one another) and the
height of the levers can be adjusted.
To Adjust the Handle Alignment: Loosen the mounting
bolts (A, Figure 11) and pivot the ground speed control
lever(s) (C) to align with each other. When desired
position is achieved tighten the mounting bolts.
To Adjust the Handle Placement: Loosen the jam nuts
and adjust the placement bolt (B, Figure 11) in or out to
properly adjust the lever end spacing. When desired
position is achieved tighten the jam nuts.
To Adjust the Handle Height: Remove the mounting
hardware (A, Figure 11) and reposition the handle either
up or down from its original position. You will need to
readjust the handle alignment as described above.
TP 300-7337-01-CH-SMN

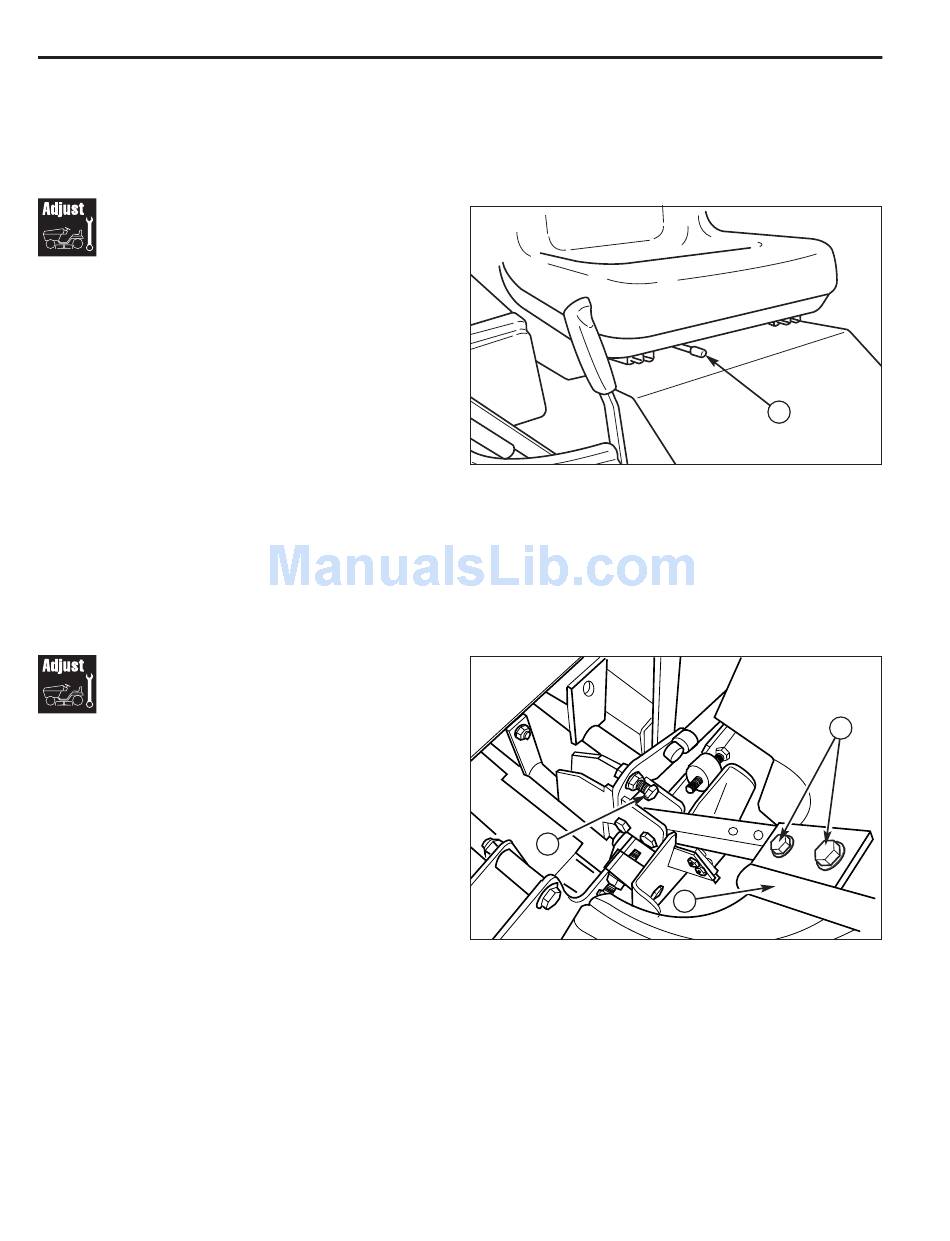

Figure 10. Seat Adjustment
A. Adjustment Lever
B
Figure 11. Control Lever Adjustment
A. Alignment Hardware
B. Placement Hardware
C. Ground Speed Control Lever
10
A
A
C
8/2007
