Seat and Ground Speed Lever Adjustments

The seat and ground speed levers should be adjusted so
that the ground speed levers can be moved through their
full range of motion without contacting the operator's legs.

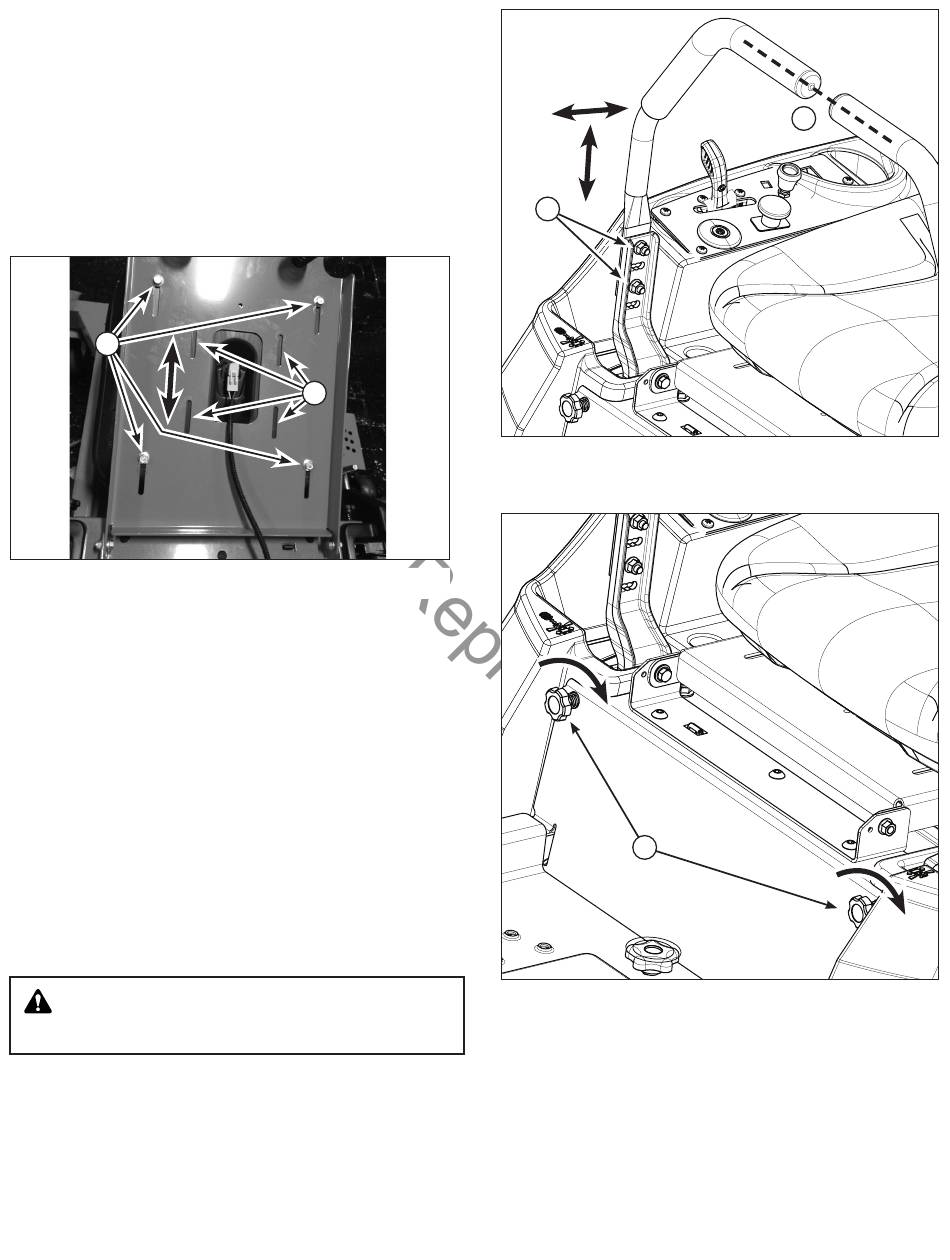

Seat Position Adjustment
Raise the seat. Loosen the adjustment hardware (A or B,
Figure 17, depending on seat type) under the seat base,
slide the seat forward or backward to the desired position,
then retighten the hardware to 80 lb-in (9 Nm).
A
Ground Speed Lever Adjustment
Loosen the ground speed lever mounting hardware (A,
Figure 18) to adjust the levers forward and backward.
Remove the hardware to raise or lower the levers.
Always be sure to adjust both levers so that they are
aligned (B). After adjustment is complete, tighten the
hardware to 13 lb-ft (18 Nm).
Speed Balancing (Tracking) Adjustment
If the rider drifts to the right or left when the ground speed
levers are in the maximum forward position, the top speed
of each of these levers can be balanced. Only adjust the
speed of the wheel that is traveling faster.
Tighten the knob (A, Figure 19) of the faster wheel by 1/2-
turn (clockwise) increments until the rider travels (tracks)
straight.
WARNING
DO NOT adjust the rider for a faster overall speed
forward or reverse than it was designed.
24
B
Figure 17
A
A
B
Figure 18
Figure 19
