Summary of Contents for Beta Three TW Series

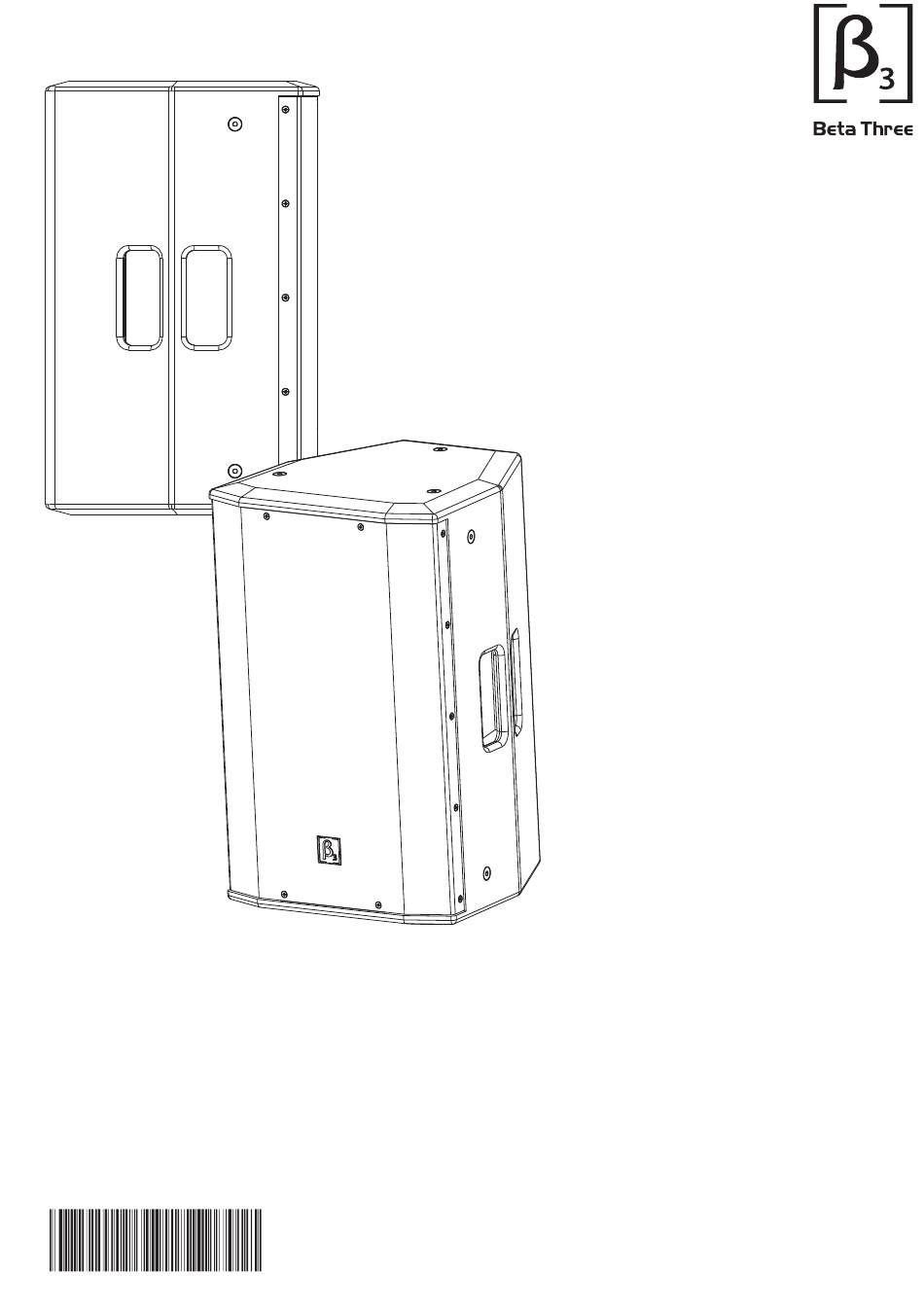

- Page 1 TW15a Two Way15" Full Range Active Speaker TW Series Pro Loudspeaker System User Manual UM - T W 1 5 a - 2 0 1 7 1 0 2 3 V e r...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
TW15a CONTENT TW Series Pro Loudspeaker System CONTENT INTRODUCTION Features Description Applications AMPLIFIER MODULE Amplifier Module INSTALLATION Mounting Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response Curve 2D Dimension Product information is subject to change without prior notification. Please visit www.elderaudio.com... -
Page 4: Introduction
TW15a INTRODUCTION TW Series Pro Loudspeaker System TW15a Two Way15" Full Range Active Speaker Features Compact lightweight design with unique appearance. New generation Class D amplifier, durable and reliable. Performance enhanced with built-in DSP. High output SPL and sensitivity. Suitable for use as a main system with or without sub speaker augmentation. -
Page 5: Amplifier Module
TW15a AMPLIFIER MODULE TW Series Pro Loudspeaker System Amplifier Module MODE SYSTEM LINE MUSIC FLAT LOW CUT CLIP MIC/LINE IN A LINE OUT A VOLUME 0 dB LINE IN B LINE OUT B MIX OUT 15" ACTIVE LOUDSPEAKER 1100W WARNING -... -
Page 6: Installation
TW15a INSTALLATION TW Series Pro Loudspeaker System Installation Accessories(Optional) Installation Reference Eight mounting points are very convenient and efficient for 1. Ceiling the different application with special brackets. 1. Speaker stand 2.Support Warning: Make sure the mounting accessories safety factor not less than 5:1 or meet the local standard during... -
Page 7: Technical Specification
TW15a TECHNICAL SPECIFICATION TW Series Pro Loudspeaker System Specification Frequency response(-3dB): 45Hz-17kHz 124dB Max.SPL: Dispersion(H×V): 50 ×55 Transducer: 1× 15" Woofer 1× 44mm Compression Driver Rated impedance: 8 Ohms XLR for input, XLR for output Connector: Input: Channel one (Mic/Line) balanced input... -
Page 8: 2D Dimension
TW15a TECHNICAL SPECIFICATION TW Series Pro Loudspeaker System 2D Dimension Top view 450mm [17.7in] Front view Back view Side view Bottom view... - Page 9 Notes:...
- Page 10 www.beta3pro.com.
