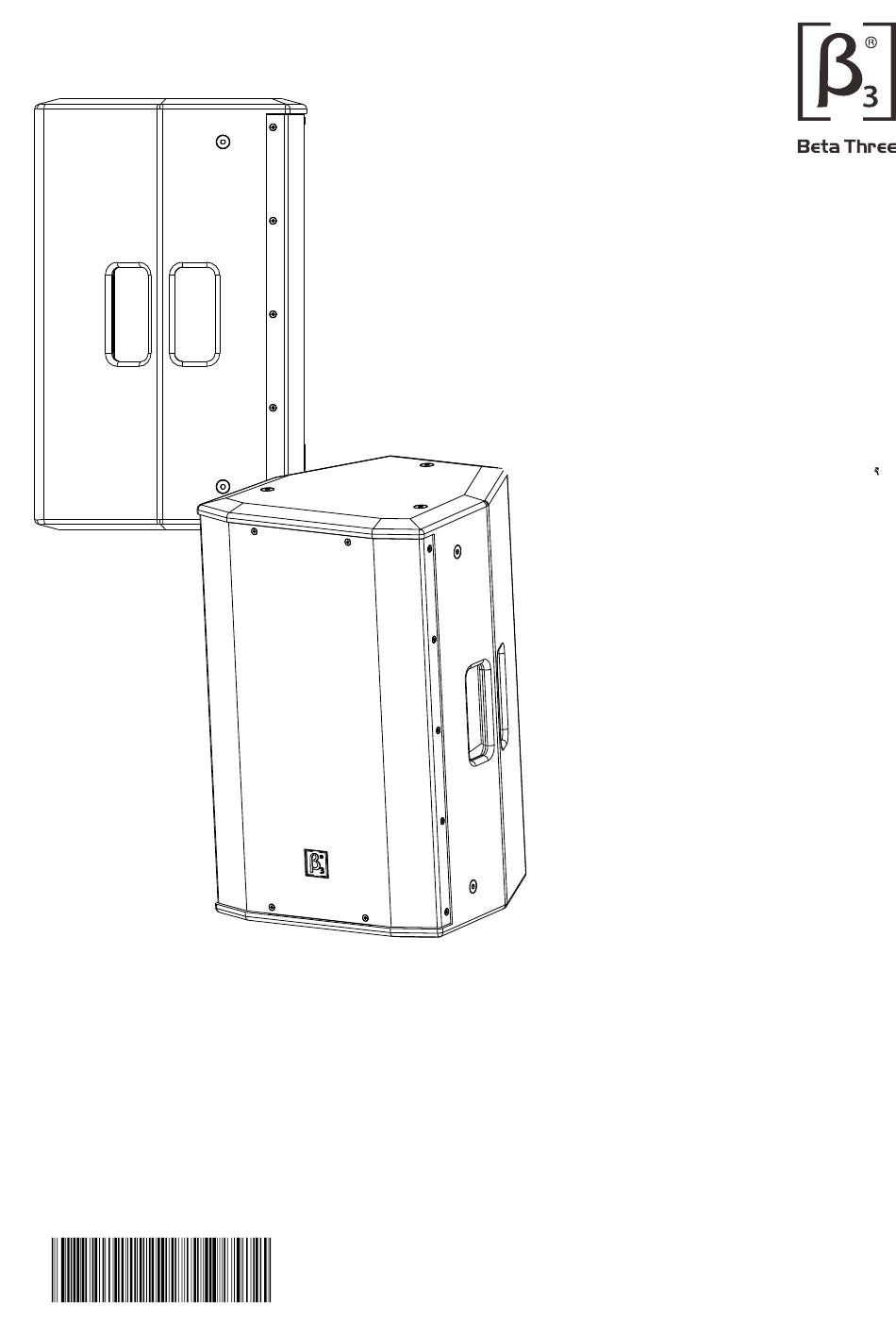

Page 1: User Manual
TW12 Two Way12" Full Range Passive Speaker TW Series Pro Loudspeaker System User Manual UM-TW12-20130807 ver A... - Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
TW12 CONTENT TW Series Pro Loudspeaker System CONTENT INTRODUCTION Features Description Applications CONNECTION Terminal Plate NL4 Connection System Connection Reference Loudspeaker Connection INSTALLATION Mounting Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response And Impedance Curve 2D Dimension Product information subjects to be updated without notification, please visit www.elderaudio.com for latest update. -
Page 4: Introduction
Rated Power 250W(RMS), 1000W(PEAK). Durable Polyurethane textured base paint. Description Applications Beta Three TW12 is two way wide-dispersion full range speaker Church which adopts the new structure and patented horn design. Auditorium It integrates one 12" woofer and one 44mm compression Conference room driver. -
Page 5: Connection
TW12 CONNECTION TW Series Pro Loudspeaker System Two NL4 connectors are available for amplifier connections. Paralelled connector is very convenient for another speaker connection. Terminal Plate 1+ 1- INPUT TW Series Pro Loudspeaker System FREQUENCY(-3dB) 50Hz-20kHz TW12 POWER(RMS) 250W Crossover SENSITIVITY(1W/1m) 95dB 12"Two Way Full-Range... -
Page 6: Loudspeaker Connection
TW12 CONNECTION TW Series Pro Loudspeaker System Loudspeaker Connection 1. Banana plugs to NL4 Connect to amplifier Connect to speaker 2. NL4 to NL4 Connect to amplifier Connect to speaker 3. Consumption curve of connection cable(Only for reference, the result is different if adopting the different cables) 8 Ohm 4 Ohm 2 Ohm... -
Page 7: Installation
TW12 INSTALLATION TW Series Pro Loudspeaker System Installation Accessories(Optional) Installation Reference Thirteen mounting points are very convenient and efficient 1. Ceiling for the different application with special brackets. 1. Speaker stand 2.Support Warning: Make sure the mounting accessories safety factor not less than 5:1 or meet the local standard during installation . -
Page 8: Technical Specification
TW12 TECHNICAL SPECIFICATION TW Series Pro Loudspeaker System Speaker Testing Method Technical Sheet 1. Frequency Response System: Passive full range wooden speaker with painting Use Pink noise to test the speaker in the anechoic chamber, Tweeter: 1 44mm compression driver adjust the level to make the speaker work at its rated impedance and set the output power... -
Page 9: 2D Dimension
TW12 TECHNICAL SPECIFICATION TW Series Pro Loudspeaker System 2D Dimension Top view 375mm [14.8in] Front view Side view Back view Bottom view... - Page 10 Notes:...
- Page 11 www.beta3pro.com...
