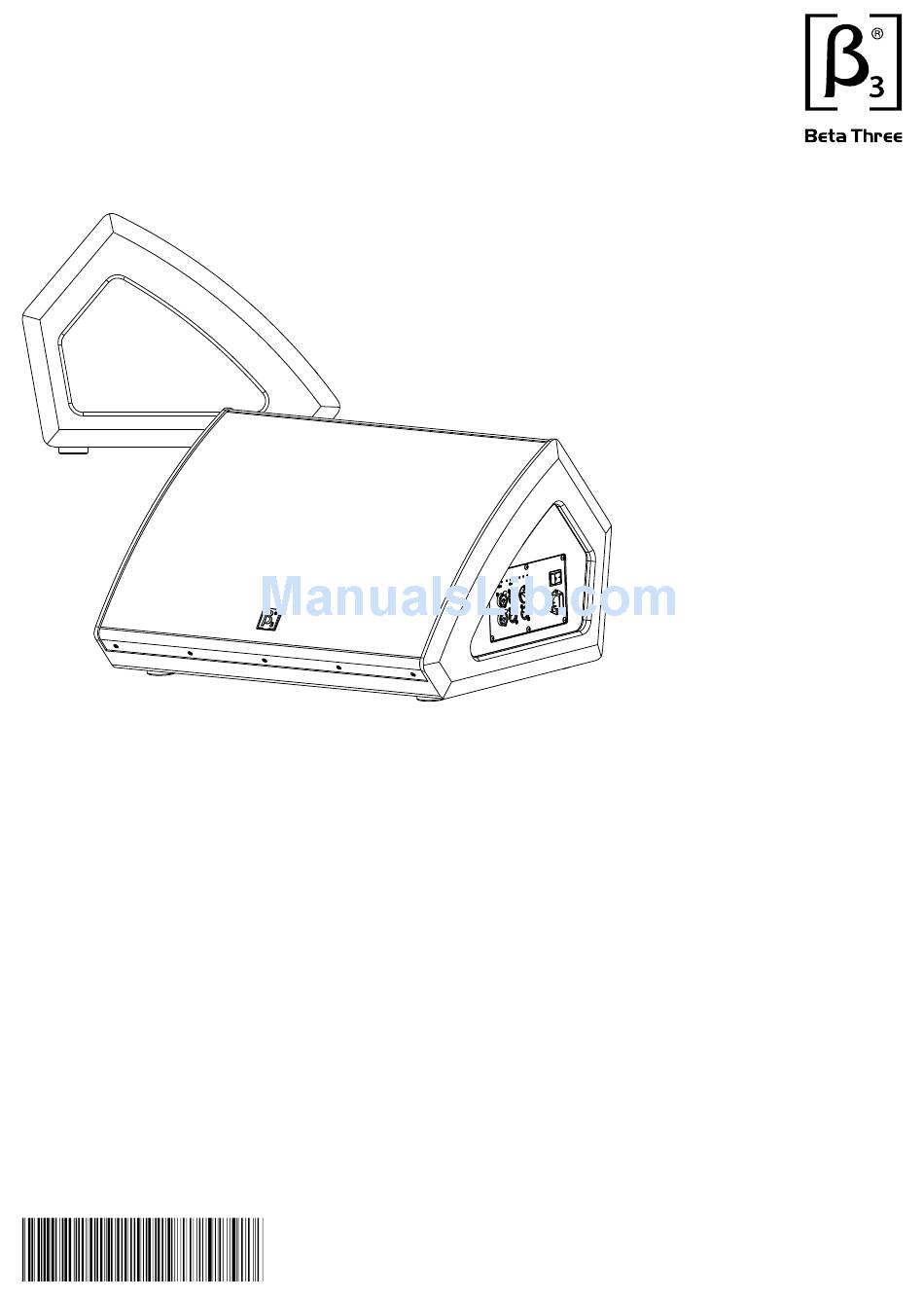

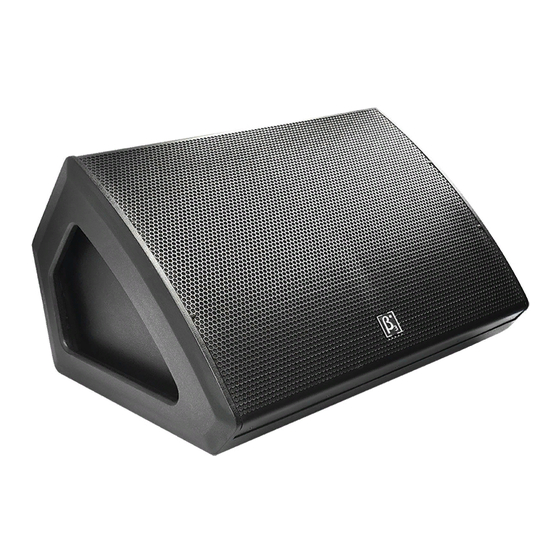

- Page 1 TW212Ma Active Dual 12 Two-way High SPL Monitor Loudspeaker " USER MANUAL U M - T W 2 1 2 M a - 2 0 1 5 0 9 0 8 V e r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for buying product. Please r ead this manual first as it will help you operate the system properly. And keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
TW212Ma CONTENT Active Dual 12 Two-way High SPL Monitor Loudspeaker " CONTENT INTRODUCTION Features Description Applications AMPLIFIER MODULE Amplifier Module SPECIFICATION Technical Sheet Frequency Response And Impedance Curve 2D Dimension Product information is subject to change without prior notification. Please visit www.elderaudio.com... -
Page 4: Introduction
TW212Ma INTRODUCTION Active Dual 12 Two-way High SPL Monitor Loudspeaker " TW212Ma Active Dual 12 Two-way High SPL Monitor Loudspeaker " Features Dual 12" Ferrite woofer with 3" voice coil. Ferrite compression driver with 3" voice coil. Dispersion :45 100 . -
Page 5: Amplifier Module
TW212Ma AMPLIFIER MODULE Active Dual 12 Two-way High SPL Monitor Loudspeaker " Rear Panel Amplifier Module MODE SYSTEM LINE MUSIC FLAT LOW CUT CLIP MIC/LINE IN A VOLUME LINE OUT A POWER TW212Ma DOUBLE 12 ACTIVE LOUDSPEAKER 1500W AC INPUT... -
Page 6: Specification
TW212Ma TECHNICAL SPECIFICATION Active Dual 12 Two-way High SPL Monitor Loudspeaker " Specification Frequency response(-3dB): 55Hz-18kHz 130dB/136dB(PEAK) Max.SPL: Transducer: 12" Woofer 75mm Compression Driver Rated impedance: 4 Ohms XLR for input, XLR for output Connector: Input: Channel one (Mic/Line) balanced input... -
Page 7: 2D Dimension
TW212Ma TECHNICAL SPECIFICATION Active Dual 12 Two-way High SPL Monitor Loudspeaker " 2D dimension Top View 740mm (29.1in) Front View Side View Rear View...
