INSTRUCTIONAL MANUAL
ADVANCED WIRE TRACER
MODELS:
AT-2001 AT-2002 AT-2003 AT-2004 AT-2005
Version : 05/2007 / PAEB27439150
BEHA-AMPROBE GmbH
In den Engematten 14, D-79286 Glottertal, Germany
Phone: +49 (0)7684 - 8009-0, Fax: +49 (0)7968 - 8009-410
www.amprobe.com – info@amprobe.com

Advertisement

Table of Contents
loading

Related Manuals for Amprobe AT-2001

Summary of Contents for Amprobe AT-2001

  • Page 1 INSTRUCTIONAL MANUAL ADVANCED WIRE TRACER MODELS: AT-2001 AT-2002 AT-2003 AT-2004 AT-2005 Version : 05/2007 / PAEB27439150 BEHA-AMPROBE GmbH In den Engematten 14, D-79286 Glottertal, Germany Phone: +49 (0)7684 - 8009-0, Fax: +49 (0)7968 - 8009-410 www.amprobe.com – info@amprobe.com...

  • Page 2: Table Of Contents

    Amprobe Europe GmbH AT-2000 CONTENTS INTRODUCTION ..................3 AT-2000 SERIES PRODUCT DESCRIPTION..........4 COMPONENT DESCRIPTION..............6 R2000 Receiver..................6 Changing Batteries ................6 Using the R2000 Receiver ..............7 S2300 and S2600 Load Signal Generators (LSG's) ......8 Using the S2300 and S2600 Load Signal Generators (LSG's) ..10 T2200 Transmitter ................11...

  • Page 3: Introduction

    AMPROBE PASAR is dedicated to designing, manufacturing and marketing high quality, reliable Instruments for the skilled professional. The AMPROBE PASAR Current Tracer has a history of providing safe, reliable operation in tracing energized wires, locating circuit breakers and locating wires shorted to the ground. The AMPROBE PASAR Open Tracer has the capability of tracing unenergized wires, locating open breakers and locating open wires.

  • Page 4: At-2000 Series Product Description

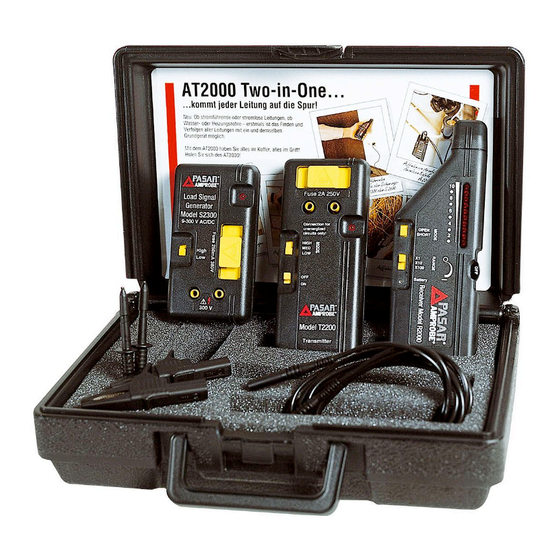

    The AT-2000 System consists of different, yet fully compatible com- ponents that are combined into four interchangeable systems: AT-2001 Commercial Circuit Tracer- includes R2000 Receiver and S2300 Load Signal Generator (9-300 volts AC or DC). AT-2002 Industrial Circuit Tracer- includes R2000 Receiver and S2600 Load Signal Generator (9-600 volts AC or DC).
  • Page 5 Amprobe Europe GmbH AT-2000 LIMITED WARRANTY Congratulations! Your new instrument has been crafted according to quality standards and contains quality components and workmanship. It has been inspected for proper operation of all of its functions and tested by qualified factory technicians according to the long-established standards of our company.

  • Page 6: Component Description

    Amprobe Europe GmbH AT-2000 COMPONENT DESCRIPTION R2000 Receiver Has two built in detector that are tuned to pick up the 32.768khz signals generated by any of the other devices in the AT-2000 family: S2300, S2600, T2200, A2201. The R2000 is designed to display the signal's strength to enable quick locating of the conductor carrying the signal.

  • Page 7: Using The R2000 Receiver

    Amprobe Europe GmbH AT-2000 Using the R2000 Receiver 1. Turn the R2000 'ON' by rotating the thumbwheel and leave it around position '5'. 2. Move the range switch to x1 (this is the least sensitive setting). 3. Place the mode switch into the appropriate position and aim the R2000 properly (see illustration below).

  • Page 8: S2300 And S2600 Load Signal Generators (Lsg's)

    Amprobe Europe GmbH AT-2000 S2300 and S2600 Load Signal Generators (LSG's) When connected to an energized circuit, the LSG's will rapidly turn them- selves on and off. This causes a slight, periodic current fluctuation that causes the power line to emit its own, trace-able signal, this signal can be detected all the way back to the main generator.
  • Page 9 Amprobe Europe GmbH AT-2000 The signal that generated is present at all points around the circuit. An LSG connected to a 220V outlet via the EU-200 cordset (throne with the 220V) will cause an incoming signal on the neutral wire as well as an outgoing signal on the hot wire.

  • Page 10: Using The S2300 And S2600 Load Signal Generators (Lsg's)

    Amprobe Europe GmbH AT-2000 Easy tracing of wires and buried cable is accomplished by simply separating wire from the return path (ground). Instead of using the neutral wire or the conduit as the ground, use the EU-200 Alligator clip cordset and attach one clip to separate ground such as a water pipe or a ground rod.

  • Page 11: T2200 Transmitter

    Amprobe Europe GmbH AT-2000 T2200 Transmitter The T2200 injects a signal onto a conductor. This signal will travel along the conductor until it ends. Primarily used for finding breaks in hidden or buried conductors, the T2200 will also allow you to trace wires and locate shorts as long as the lines are unenergized.

  • Page 12: A2201 Clamp-On Transmitter Accessory

    Amprobe Europe GmbH AT-2000 4. Select power level and switch to 'ON' - The light should blink. 5. Trace the wire with the 2000. The signal will stop at the break in the wire. A2201 Clamp-On Transmitter Accessory Enables the T2200 to induce its signal onto an unenergized or energized circuit.

  • Page 13: Using The A2201 Clamp-On Transmitter Accessory

    Amprobe Europe GmbH AT-2000 Using the A2201 Clamp-on transmitter Accessory The A2201 will allow non-contact signal indication onto energized or non- energized conductors. On energized lines, the signal will propagate downstream to the end of the circuit, provided there is current flowing in the circuit.

  • Page 14: Eu-200 Sensing Lines With Test Prods And Alligator Clips

    Amprobe Europe GmbH AT-2000 EU-200 sensing lines with test prods and alligator clips Fig. 13 APPLICATION NOTES Finding Opens 'Opens' are dead-end conductors that are not connected to anything and therefore do not pas current. To find an open, use the T2200 transmitter, R2000 Receiver, and the alligator clip cordset.

  • Page 15: Finding Ground Faults

    Amprobe Europe GmbH AT-2000 signal on the R2000. 10. Starting from the T2200, trace the conductor. When in the 'SHORT' mode, be sure to rotate the R2000 while tracing to maintain proper orientation in case the wire changes direction. The open will be at the point you begin to lose the signal.

  • Page 16: Tracing Wires In Conduit

    Amprobe Europe GmbH AT-2000 Also, you can use line voltage as the power source by connecting the LSG across the breaker. 1. Plug the alligator clip cordset into the LSG. 2. Attach one clip to the faulted wire and the other to one terminal of a battery (minimum 9V), or the hot side of the breaker.

  • Page 17: Locating Circuit Breakers Or Fuses

    Amprobe Europe GmbH AT-2000 Fig. 16 Identifying Circuit Breakers Locating Circuit Breakers or Fuses Caution: Always check to make sure the line voltage DOES NOT EXCEED the range of the LSG - S2300: 9-300V, S2600: 9-600V. 1. Connect the LSG to the circuit as shown using either the C2901 Pigtail Cordset for 220V receptacles or the C2902 Alligator Clip Cordset.

  • Page 18: Tracing Unenergized Lines And Finding Shorts

    Amprobe Europe GmbH AT-2000 receptacle, use the AD-1 Adapter to access the hot wire and the water pipe or such for the ground, as shown in fig. 5 on page 9. 4. Starting at the lowest sensitivity setting, x1, circle the area with the R2000 in the 'SHORT' mode.

  • Page 19: Locating Individual Wires In A Bundle

    Amprobe Europe GmbH AT-2000 Fig. 17 Short to Ground 2. A) Connect the alligator clip cordset to the T2200. B) Attach one clip to one wire and the other to the circuit's return path (for a line to neutral short, use the neutral wire).

  • Page 20: Locating Outlets From The Breaker Panel

    Amprobe Europe GmbH AT-2000 NOTE: In some instances, capacitive coupling may occur which can cause other wires to emit the signal, making it difficult to identify the proper wire. In this situation, switch the LSG to 'LOW and try again, If this doesn't work, disconnect power and use a 9V battery as the power source and attach similar to the 'ground fault' set-up.

  • Page 21: Locating Buried Conduit Or Metal Pipe

    Amprobe Europe GmbH AT-2000 Locating Buried Conduit or Metal Pipe 1. Connect the A2201 Clamp to the T2200 transmitter and then clamp it around the conduit or pipe. 2. Use the B2024 battery or the BV2025 Converter is recommended. Plug either one into the jack on the side of the T2200.

  • Page 22: Specifications

    Amprobe Europe GmbH AT-2000 SPECIFICATIONS General Operating Temperature: 0 to 120° F (-18°C to 49°C) Storage Temperature: -40 to 150° F (-40°C to 66°C) Case Material: ABS Case Size: 11"x15"1/2" x 4" (39.4 x 27.9 x 10.2 cm) R2000 Receiver Detectors: Electromagnetic coil pickup for short mode.
  • Page 23 Amprobe Europe GmbH AT-2000 S2600 Load Signal Generator Operating Voltage: 9-600 volts AC or DC Operating Frequency: 32.768 KHz Duty Cycle: Transmits 2 pulses with a duration of 0.0625 each every 0.5 seconds Current Output- Low Mode: 35 mA peak, 4mA average...
  • Page 24 Amprobe Europe GmbH AT-2000 - 24 -...

This manual is also suitable for:

At-2004At-2002At-2003At-2005
