Remote Connections with Fiber Cable

Fiber optic technology allows for longer cabling than any other media type.
Using a 1000BASE-SX multimode fiber (MMF) SFP transceiver, you can
run a link up to 550 m, a 1000BASE-LX single-mode fiber (SMF) link can
run up to 5 km, and a 1000BASE-LH single-mode fiber (SMF) link can
run up to 70 km. This allows the switch to serve as a collapsed backbone,
providing direct connectivity for a widespread LAN.
1000BASE-LX, 1000BASE-LH, or 100BASE-FX SFP transceivers can be
used to interconnect remote network segments, or can be used to provide
a link to other buildings in a campus setting. 1000BASE-SX SFP
transceivers can be used for Gigabit fiber connections between floors in
the same building.

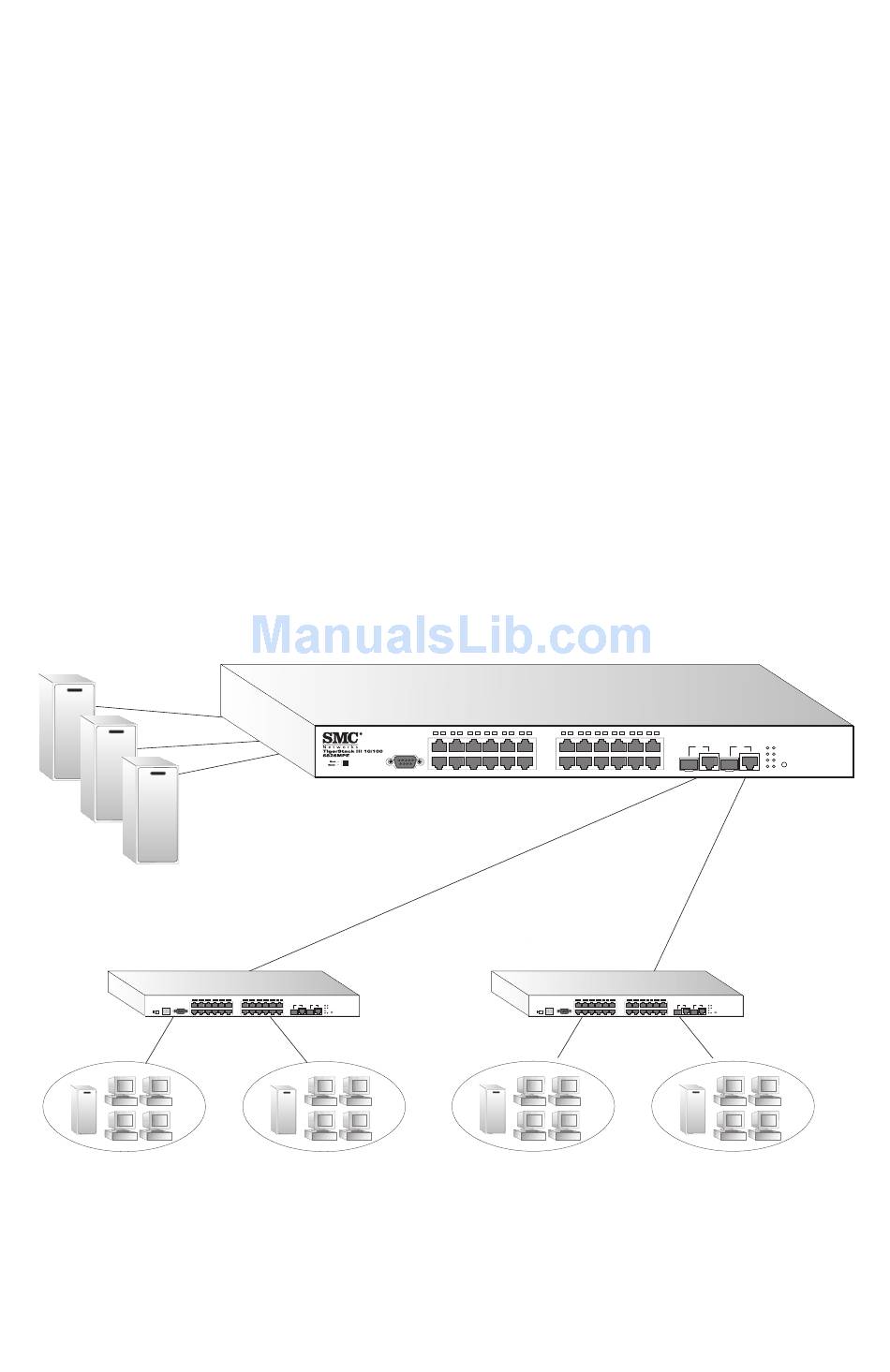

The figure below illustrates this switch connecting multiple segments with
fiber cable.
Server Farm
Remote Switch
1 1 2 2 3 3 4 4
1 1
Stack Unit ID
Console Console
Slave Slave
Master Master
2 2
1000BASE-LH SMF
(70 kilometers)
5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 21 21 22 22 23 23 24 24
11 11 13 13 23 23
25 25 26 26 Link/Act Link/Act PWR PWR
PoE PoE Diag Diag
25 25
26 26 Stacking Stacking
Mode Mode
PoE/Link PoE/Link
12 12 14 14 24 24
10/100 Mbps Segments
...

Figure 2-3 Remote Connections with Fiber Cable

1 2 3 4 5 6 7 8 9 10 11 12 13
1 11 13
Console
2 12 14
Remote Switch
Stack Unit ID
Console Console
Slave Slave
Master Master
A
PPLICATION
14 15 16 17 18 19 20 21 22 23 24
23
25
24
1000BASE-LX SMF
(5 kilometers)
1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 21 21 22 22 23 23 24 24
1 1 11 11 13 13 23 23
25 25 26 26 Link/Act Link/Act PWR PWR
PoE PoE Diag Diag
25 25
26 26 Stacking Stacking
Mode Mode
PoE/Link PoE/Link
2 2 12 12 14 14 24 24
...
E
XAMPLES
Link/Act Pwr
26
PoE Diag
RPS
25
26 Stack Mode
PoE /Link
2-5
