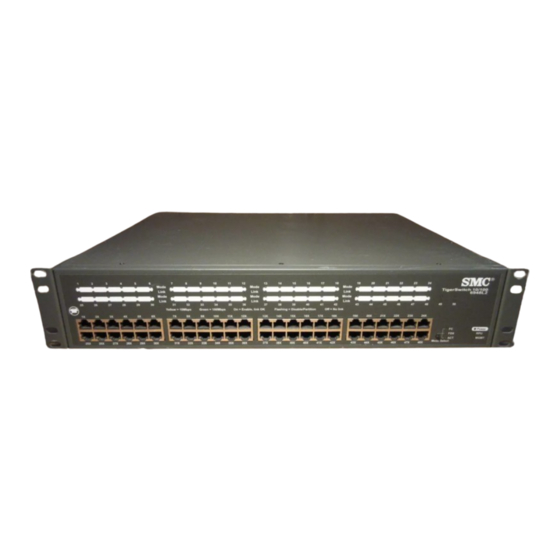

SMC Networks 48-Port Installation Manual

48-port fast ethernet switch tigerswitch 10/100
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TigerSwitch 10/100
48-Port Fast Ethernet Switch
N 48 10BASE-T/100BASE-TX ports
N Optional 100BASE-FX or 1000BASE-SX modules
N 13.6 Gbps of aggregate bandwidth
N Support for redundant power unit
N Spanning Tree Protocol
N Up to eight port trunks per switch
N Port mirroring for non-intrusive analysis
N QoS support for two-level priority
N Full support for VLANs with GVRP
N IP Multicasting with IGMP Snooping
N Manageable via console, Web, SNMP/RMON

Installation Guide

SMC6948L2

Advertisement

Table of Contents
loading

Related Manuals for SMC Networks 48-Port

Summary of Contents for SMC Networks 48-Port

  • Page 1: Installation Guide

    TigerSwitch 10/100 48-Port Fast Ethernet Switch N 48 10BASE-T/100BASE-TX ports N Optional 100BASE-FX or 1000BASE-SX modules N 13.6 Gbps of aggregate bandwidth N Support for redundant power unit N Spanning Tree Protocol N Up to eight port trunks per switch...
  • Page 3 TigerSwitch 10/100 Installation Guide From SMC’s Tiger line of feature-rich workgroup LAN solutions 6 Hughes Irvine, CA 92618 Phone: (949) 707-2400 December 2000 Pub. # F2.22 150550-102 R01...
  • Page 4 Irvine, CA 92618 All rights reserved. Printed in Taiwan Trademarks: SMC is a registered trademark; and EZ Switch, TigerStack and TigerSwitch are trademarks of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders.

  • Page 5: Limited Warranty

    IMITED ARRANTY Limited Warranty Limited Warranty Statement: SMC Networks, Inc. (“SMC”) warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products carry a standard 90-day limited warranty from the date of purchase from SMC or its Authorized Reseller.
  • Page 6 * SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase. SMC Networks, Inc. 6 Hughes Irvine, CA 92618...
  • Page 7 EC Conformance Declaration - Class A SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 08970 - Sant Joan Despí, Barcelona, Spain.

  • Page 8: Japan Vcci Class A

    OMPLIANCES Industry Canada - Class A This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of the Department of Communications. Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe A prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques,”...

  • Page 9: Safety Compliance

    Safety Compliance Warning: Fiber Optic Port Safety When using a fiber optic port, never look at the transmit laser while it is powered on. Also, never look directly at the fiber TX port and fiber cable ends when they are powered on. Avertissment: Ports pour fibres optiques - sécurité...
  • Page 10 OMPLIANCES Wichtige Sicherheitshinweise (Germany) 1. Bitte lesen Sie diese Hinweise sorgfältig durch. 2. Heben Sie diese Anleitung für den späteren Gebrauch auf. 3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie keine Flüssigoder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung.

  • Page 11: Table Of Contents

    Overview ........1-1 Switch Architecture ......1-2 Management Options .
  • Page 12 Troubleshooting A-1 Diagnosing Switch Indicators ......A-1 Power and Cooling Problems ......A-2 Installation .
  • Page 13 Physical Characteristics ......C-1 Switch Features ........C-3 Management Features .
  • Page 14 ABLE OF ONTENTS viii...

  • Page 15: About The Tigerswitch 10/100

    WITCH Overview ™ SMC’s TigerSwitch 10/100 is a Fast Ethernet switch with 48 10BASE-T/100BASE-TX ports, plus two slots for optional slide-in 100BASE-FX or 1000BASE-SX modules. There is also an SNMP-based Network Management Module installed in the rear panel. This module supports both in-band and out-of-band access for managing the switch.

  • Page 16: Switch Architecture

    This prevents errors from being propagated throughout the network. This switch also features full-duplex capability on all ports, which effectively doubles the bandwidth of each connection. This TigerSwitch can be used in a standalone configuration, supporting up to 52 ports.

  • Page 17: Management Options

    Network Management Module that allows the switch to be managed in-band via SNMP or RMON (Groups 1, 2, 3 and 9) protocols, with a Web browser, or remotely via Telnet. The switch also provides a serial port on the rear panel for out-of-band management.

  • Page 18: Status Leds

    * Use the Mode Select button to select the LED display mode. 10/100 Port and System Status LEDs Status Switch is receiving power. Redundant power is on, and the RPU is in backup or active mode. Redundant power is off or has failed.

  • Page 19: Network Management Module

    And broadcast storm control prevents broadcast traffic storms from engulfing the network. Some of this switch’s advanced features are described below. For a detailed description, refer to the Management Guide.

  • Page 20: Spanning Tree Protocol

    VLAN membership for any port, rather than having to manually change the node’s IP address. • Provides data security by restricting all traffic to the originating VLAN, except where a connection has been configured between separate VLANs using a router or Layer 3 switch. 10/100...

  • Page 21: Multicast Switching

    2 km (1.24 miles) away. This port operates only at 100 Mbps, full duplex. This module is fitted with an SC connector, but you can attach an ST plug to the switch using the optional SC-ST Converter (Part Number: 99-012034-091).

  • Page 22: Optional Redundant Power Unit (Smcrpu150W)

    SC-ST Converter (Part Number: 99-012034-091).. Optional Redundant Power Unit (SMCRPU150W) SMC provides an optional Redundant Power Unit (RPU), SMCRPU150W, that can supply power to the switch in the event of failure of the internal power supply. Power Supply Receptacles There are two power receptacles on the rear panel of the switch.

  • Page 23: Features And Benefits

    Figure 1-7. Power Supply Receptacles Features and Benefits Connectivity N 48 dual-speed ports for easy Fast Ethernet integration and for protection of your investment in legacy LAN equipment N Auto-negotiation enables each RJ-45 port to automatically select the optimum communication mode (half or full duplex) if this feature is supported by the attached device;...

  • Page 24: Performance

    N “At-a-glance” LEDs for easy troubleshooting N Network Management Module: • Supports Telnet, SNMP/RMON and Web-based interface • Module manages entire switch in-band or out-of-band • Spanning Tree Protocol for redundant network connections • VLAN support for 256 groups, port-based or with 802.1Q VLAN tagging, and GVRP for automatic VLAN learning •...

  • Page 25: Network Planning

    A switch can be easily configured in any Ethernet or Fast Ethernet network to significantly boost bandwidth while using conventional cabling and network cards.

  • Page 26: Sample Applications

    When the time comes for further expansion, just cascade the TigerSwitch to an Ethernet or Fast Ethernet hub or switch, or link to another workgroup using a Gigabit connection. In the figure below, the TigerSwitch 10/100 is operating as a collapsed backbone for a small LAN.

  • Page 27: Central Wiring Closet

    Central Wiring Closet With up to 52 ports on the switch, the TigerSwitch 10/100 can collapse a complex network down into a single efficient bridged node, increasing overall bandwidth and throughput. In the figure below, the 10BASE-T/100BASE-TX ports on the TigerSwitch are providing 100 Mbps connectivity for up to 48 segments through SMC’s TigerStack...

  • Page 28: Remote Connections With Fiber Cable

    The figure below illustrates a TigerSwitch connecting multiple segments with fiber cable. Server Farm Remote Switch Figure 2-3. Collapsed Backbone Using Fiber Cable Headquarters 100 Mbps Fiber...

  • Page 29: Making Vlan Connections

    “trunk” ports (that is, tagged ports) connecting different switches. R&D VLAN 1 Tagged VLAN 2 Testing Figure 2-4. Making VLAN Connections Note: When connecting to a switch that does not support IEEE 802.1Q VLAN tags, use untagged ports. Ports Untagged Ports VLAN unaware Finance switch...

  • Page 30: Connectivity Rules

    Gigabit Ethernet. However, note that because switches break up the path for connected devices into separate collision domains, you should not include the switch or connected cabling in your calculations for cascade length involving other devices. 1000 Mbps Gigabit Ethernet Collision Domain...

  • Page 31: 100 Mbps Fast Ethernet Collision Domain

    Twisted Pair 100BASE-TX 200 m (656 ft.) 200 m (656 ft.) 205 m (672.4 ft.) Connecting Any two devices Switch to switch, server or PC Half duplex Full duplex ETWORK LANNING Max. Distance 100 m (328 ft.) 412 m (1,351.4 ft.)

  • Page 32: 10 Mbps Ethernet Collision Domain

    ETWORK LANNING 10 Mbps Ethernet Collision Domain SMC 5-4-3 Rule Between any two PCs or other stations in the same 10 Mbps collision domain, there may be: • up to 5 link segments in series, • up to 4 repeaters (hubs), •...

  • Page 33: Application Notes

    When the switch is connected to a hub, both devices must operate in half-duplex mode. 2. When a switch is connected to a hub or any kind of shared media, remember to turn off back pressure to prevent the attached port from being frequently partitioned due to the jamming packets.
  • Page 34 ETWORK LANNING 2-10...

  • Page 35: Installing The Switch

    NSTALLING THE Selecting a Site TigerSwitch 10/100 units can be mounted in a standard 19-inch equipment rack or on a flat surface. Be sure to follow the guidelines below when choosing a location. N The site should: • be at the center of all the devices you want to link and near a power outlet.

  • Page 36: Equipment Checklist

    N SMC Warranty Registration Card—be sure to complete and return to SMC Optional Rack-Mounting Equipment If you plan to rack-mount the switch, be sure to have the following equipment available: N Four mounting screws for each device you plan to install in a rack—these are not included...

  • Page 37: Mounting

    Rack Mounting Before rack mounting the switch, pay particular attention to the following factors: N Temperature: Since the temperature within a rack assembly may be higher than the ambient room temperature, check that the rack-environment temperature is within the specified operating temperature range.
  • Page 38 1. Attach the brackets to the device using the screws provided in the Bracket Mounting Kit. Figure 3-1. Attaching the Brackets 2. Mount the device in the rack, using four rack-mounting screws (not provided). Figure 3-2. Installing the Switch in a Rack...

  • Page 39: Desktop Or Shelf Mounting

    5. If also installing RPUs, mount them in the rack below the other devices. Desktop or Shelf Mounting 1. Attach the four adhesive feet to the bottom of the first switch. Figure 3-3. Attaching the Adhesive Feet 2. Set the device on a flat surface near an AC power source, making sure there are at least two inches of space on all sides for proper air flow.

  • Page 40: Connecting To A Power Source

    3. Check the front-panel LEDs as the device is powered on to be sure the Power LED is lit. If not, check that the power cable is correctly plugged in. The Mgmt LED on the switch will be lit. 4. If you have a purchased Redundant Power Unit, connect it to the device and to an AC power source now, following the instructions included with the package.

  • Page 41: Making Network Connections

    Connecting Network Devices The TigerSwitch 10/100 is designed to interconnect multiple segments (or collision domains). It may be connected to 10 or 100 Mbps network cards in PCs and servers, as well as to Ethernet and Fast Ethernet hubs, switches or routers. It may also be connected to remote devices using the optional 100BASE-FX or 1000BASE-SX modules.

  • Page 42: Connecting To Pcs, Servers, Hubs And Switches

    “Wiring Closet Connections” on the next page). Otherwise, attach the other end to an available port on the switch. If the device is a hub or switch, use the cable type indicated under “Cables” on page B-1, and attach the other end to a port on the TigerSwitch.

  • Page 43: Wiring Closet Connections

    1. Attach one end of a patch cable to an available port on the switch, and the other end to the patch panel. 2. If not already in place, attach one end of a cable segment to the back of the patch panel where the punch-down block is located, and the other end to a modular wall outlet.

  • Page 44: Fiber Optic Devices

    3. Connect one end of the cable to the SC port on the switch and the other end to the SC port on the other device. Since SC connectors are keyed, the cable can be attached in only one...
  • Page 45 Figure 4-3. Making SC Port Connections 4. As a connection is made, check the Activity LED on the switch’s front panel for the corresponding module to be sure that the connection is valid. Note: If you use the optional SC-ST Converter, be sure to connect the converter’s Tx (Rx) port to the Rx (Tx) port on the other...
  • Page 46 AKING ETWORK ONNECTIONS...

  • Page 47: Troubleshooting

    Check connections between the switch, the power cord, the wall outlet, and the RPU if you are using one. • If the switch is installed in a rack, check the connections to the punch-down block and patch panel. • Contact SMC Tech Support.

  • Page 48: Power And Cooling Problems

    Then verify that you entered the correct IP address. Also, be sure the port through which you are connecting to the switch has not been disabled. If it has not been disabled, then check the network cabling that runs...
  • Page 49 ROUBLESHOOTING Note: You can configure the management agent to accept from one to four simultaneous Telnet sessions. If the maximum number of sessions already exists, an additional Telnet connection will not be able to log into the system.
  • Page 50 ROUBLESHOOTING...
  • Page 51 Specifications Cable Type 100-ohm UTP, 22 - 26 AWG 0.4 - 0.6 mm, 2 pairs Cable Type 100-ohm UTP, 22 - 26 AWG 0.4 - 0.6 mm, 2 pairs 100BASE-FX and 1000BASE-SX Duplex Fiber Cable Cable Type 62.5/125 or 50/125 micron core Note: If you need to connect to a device with 62.5/125 micron cable that has ST-type connectors, SMC provides an optional SC-ST Converter (Part Number: 99-012034-091).

  • Page 52: Cables

    ABLES Twisted-Pair Cable and Pin Assignments Caution: DO NOT plug a phone jack connector into any RJ-45 port. Use only twisted-pair cables with RJ-45 connectors that conform with FCC standards. For 100BASE-TX/10BASE-T connections, a twisted-pair cable must have two pairs of wires. Each wire pair is identified by two different colors.

  • Page 53: 100Base-Tx/10Base-T Pin Assignments

    100BASE-TX/10BASE-T Pin Assignments With 100BASE-TX/10BASE-T cable, pins 1 and 2 are used for transmitting data, and pins 3 and 6 for receiving data. RJ-45 Pin Assignments Pin Number 1: The “+” and “-” signs represent the polarity of the wires that make up each wire pair. Straight-Through Wiring If the twisted-pair cable is to join two ports and only one of the ports has an internal crossover (MDI-X), the two pairs of wires...

  • Page 54: Crossover Wiring

    ABLES Crossover Wiring If the twisted-pair cable is to join two ports and either both ports are labeled with an “x” (MDI-X) or neither port is labeled with an “x” (MDI), a crossover must be implemented in the wiring. Crossover RJ-45 Pin Assignments End 1 1 (Tx+) 2 (Tx-)

  • Page 55: Console Port Pin Assignments

    ABLES Console Port Pin Assignments The DB-9 serial port on the switch’s rear panel is used to connect to the switch for out-of-band console configuration. The on-board menu-driven configuration program can be accessed from a terminal, a PC running a terminal emulation program, or from a remote location via a modem connection.

  • Page 56: Db-9 Port Pin Assignments

    DTR (Data Terminal Ready) SG (Signal Ground) DSR (Data Set Ready) RTS (Request-to-Send) CTS (Clear-to-Send) RI (Ring Indicator) Console Port to 9-Pin COM Port on PC Switch’s 9-Pin Serial Port 1 DCD 2 RXD 3 TXD 4 DTR 5 SGND...

  • Page 57: Console Port To 25-Pin Dte Port On Pc

    Console Port to 25-Pin DTE Port on PC Switch’s 9-Pin Serial Port 1 DCD 2 RXD 3 TXD 4 DTR 5 SGND 6 DSR 7 RTS 8 CTS 9 RI Null Modem PC’s 25-Pin DTE Port 8 DCD 3 TXD...
  • Page 58 ABLES...

  • Page 59: Specifications

    Physical Characteristics Ports 48 10BASE-T/100BASE-TX, with auto-negotiation 2 slots for optional dual-port 100BASE-FX or single-port 1000BASE-SX media expansion modules Network Interface 10BASE-T: RJ-45 (100-ohm, UTP cable; Categories 3, 4, 5) 100BASE-TX: RJ-45 (100-ohm, UTP cable; Category 5) Ports 1-48: RJ-45 connectors, fixed crossover 100BASE-FX: SC connector Multimode fiber cable;...
  • Page 60 PECIFICATIONS Weight 9.92 lbs (4.5 kg) Size 17.37 x 13.38 x 3.46 in (44.0 x 35.3 x 8.8 cm) Temperature Operating: 32 to 122 Storage: -40 to 158 Humidity Operating: 10% to 90% AC Input 100 to 240 V, 50 to 60 Hz Power Supply Internal, auto-ranging transformer: 100 to 240 VAC, 50 to 60 Hz Redundant DC input...

  • Page 61: Switch Features

    PECIFICATIONS Switch Features Spanning Tree Protocol Forwarding Mode Store-and-forward Throughput Wire speed Flow Control Full Duplex: IEEE 802.3x Half Duplex: Back pressure Broadcast Storm Control VLAN Support Up to 256 groups; port-based or with 802.1Q VLAN tagging, GVRP for automatic VLAN learning...

  • Page 62: Management Features

    PECIFICATIONS Management Features In-Band Management Telnet, Web-based HTTP, or SNMP manager (EliteView Network Management software provided for free) Out-of-Band Management RS-232 DB-9 console port Software Loading TFTP in-band or XModem out-of-band MIB Support MIB II (RFC 1213), Bridge MIB (RFC 1493), Ethernet-Like MIB (RFC 1643), RMON MIB (RFC 1757), SMC’s private MIB RMON Support Groups 1, 2, 3, 9 (Statistics, History, Alarm, Event)

  • Page 63: Standards

    Standards IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3z Gigabit Ethernet IEEE 802.1D Spanning Tree Protocol IEEE 802.1p priority tags IEEE 802.3ac VLAN tagging IEEE 802.1Q VLAN Bridge Management IEEE 802.3x full-duplex flow control ISO/IEC 8802-3 SNMP (RFC 1157), RMON (RFC 1757), ARP (RFC 826), IGMP (RFC 1112), MIB II (RFC 1213), Interfaces Evolution MIB (RFC 1573), Ethernet-Like MIB (RFC 1643), Bridge MIB (RFC 1493) Compliances...

  • Page 64: Warranty

    PECIFICATIONS Warranty Limited lifetime...

  • Page 65: Slide-In Module

    Slide-in Module 100BASE-FX Extender Module Model SMC6900FSC, SMC6900FST Ports 2 100BASE-FX Network Interface SC connector, 50/125 or 62.5/125 micron multimode fiber cable (SMC6900FST includes SC-ST Converter) Standards 802.3u Fast Ethernet 1000BASE-SX Extender Module Model SMC6900G Ports 1 1000BASE-SX Network Interface SC connector, 50/125 or 62.5/125 micron multimode fiber cable Standards 802.3z Gigabit Ethernet...

  • Page 66: Network Management Module

    PECIFICATIONS Network Management Module Model SMC6948NMM Ports RS-232 console port...
  • Page 67 RDERING TigerSwitch 10/100 Products and Accessories Product Number Description SMC6948L2 48-port Fast Ethernet Switch with two media expansion slots SMC6900FSC Fiber Module with two 100BASE-FX Ports (SC-type Connector) SMC6900FST SMC6900FSC + SC-ST Converter SMC6900G Gigabit Module with one 1000BASE-SX Port...

  • Page 68: Ordering Information

    RDERING NFORMATION...

  • Page 69: Glossary

    10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3, 4, or 5 UTP cable. 100BASE-FX IEEE 802.3u specification for 100 Mbps Fast Ethernet over two strands of 50/125 or 62.5/125 micron core fiber cable. 100BASE-TX IEEE 802.3u specification for 100 Mbps Fast Ethernet over two pairs of Category 5 UTP cable.
  • Page 70 LOSSARY Class I Repeater Fast Ethernet repeater that is principally used to connect different physical signaling systems (e.g., 100BASE-TX, 100BASE-FX) and that has an internal delay such that only one repeater of this type can reside within a single collision domain when maximum cable lengths are used.
  • Page 71 Device that provides a full 100 Mbps bandwidth (or either 10 or 100 Mbps bandwidth with auto-negotiation) to each port (LAN segment). Full Duplex Transmission method that allows switch and network card to transmit and receive concurrently, effectively doubling the bandwidth of that link. Gigabit Ethernet A 1000 Mbps network communication system based on Ethernet and the CSMA/CD access method.
  • Page 72 LOSSARY IEEE 802.3u Defines CSMA/CD access method and physical layer specifications for 100BASE-TX Fast Ethernet. IEEE 802.3x Defines Ethernet frame start/stop requests and timers used for flow control on full-duplex links. IEEE 802.3z Defines CSMA/CD access method and physical layer specifications for 1000BASE Gigabit Ethernet.
  • Page 73 An acronym for Management Information Base. It is a set of database objects that contains information about the device. Media Independent Interface, the standard interface for Fast Ethernet—similar to the AUI interface for traditional Ethernet. Network Diameter Wire distance between two end stations in the same collision domain.
  • Page 74 LOSSARY Glossary-6...

  • Page 75: Index

    Numerics 10 Mbps connectivity rules 2-8 100 Mbps connectivity rules 2-7 1000 Mbps connectivity rules 2-6 1000BASE-SX connections 4-4 fiber cable lengths 2-6 modules 1-7 100BASE cable lengths 2-7 100BASE-FX connections 4-4 fiber 2-6 100BASE-TX ports 1-3 10BASE cable lengths 2-8 10BASE-T ports 1-3 accessories, ordering D-1 address table size C-1...
  • Page 76 NDEX features C-3 management 1-10 switch 1-9 fiber cables 4-4 flow control, IEEE 802.3x 1-3 front panel of switch 1-1 full-duplex connectivity 2-1 Gigabit Ethernet cable lengths 2-6 grounding for racks 3-3 GVRP 1-5 IEEE 802.3x flow control 1-3 indicators, LED 1-4...
  • Page 77 4-2 power, connecting to 3-6 priority queues 1-7 problems, troubleshooting A-1 QoS 1-5 rack mounting 3-3 rear panel of switch 1-2 rear panel receptacles 1-8 redundant power unit See RPU RJ-45 port connections 4-2 RJ-45 ports 1-3...
  • Page 78 NDEX UL compliance iii VCCI compliance ii VLANs 1-5 tagging 2-5 warranty C-6 Web-based management 1-3 Weighted Fair Queuing 1-7 Index-4...
  • Page 80 FOR TECHNICAL SUPPORT, CALL: From U.S.A. and Canada (8:30 AM - 8:00 PM Pacific Time) (800) SMC-4-YOU; (949) 707-2400; (949) 707-2460 (Fax) From Europe (8:00 AM - 5:30 PM UK Greenwich Mean Time) 44 (0) 1189 748740; 44 (0) 1189 748741 (Fax) INTERNET E-mail addresses: techsupport@smc.com...
