Desktop Or Shelf Mounting; Figure 3-4 Attaching The Adhesive Feet - SMC Networks SMC TigerAccess SMC7824M/ESW Installation Manual

I
NSTALLING THE

Desktop or Shelf Mounting

1. Attach the four adhesive feet to the bottom of the first switch.
t t
m m g g
M M
2. Set the device on a flat surface near an external power source, making
sure there are at least two inches of space on all sides for proper air
flow.
3. If installing a single switch only, go to Grounding the Chassis at the
end of this chapter.
4. If installing multiple switches, attach four adhesive feet to each one.
Place each device squarely on top of the one below, in any order.
3-6
S
WITCH

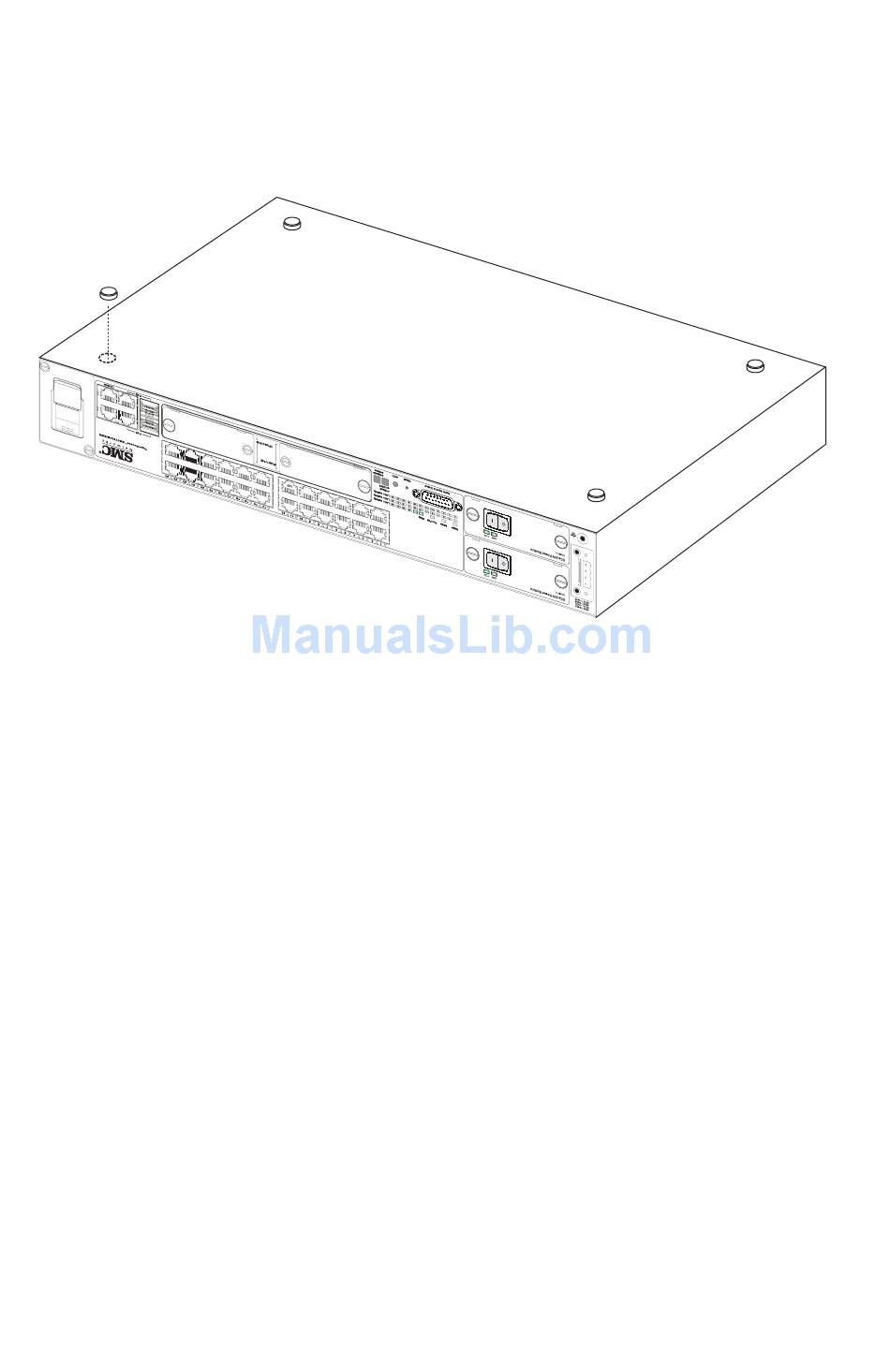

Figure 3-4 Attaching the Adhesive Feet

t t
m m g g
M M
7A 8.
7A
8.
