Making VLAN Connections

These switches support VLANs which can be used to organize any group
of network nodes into separate broadcast domains. VLANs confine
broadcast traffic to the originating group, and can eliminate broadcast
storms in large networks. This provides a more secure and cleaner network
environment.
VLANs can be based on untagged port groups, or traffic can be explicitly
tagged to identify the VLAN group to which it belongs. Untagged VLANs
can be used for small networks attached to a single switch. However,
tagged VLANs should be used for larger networks, and all the VLANs
assigned to the inter-switch links.
These switches also support multiple spanning trees which allow VLAN
groups to maintain a more stable path between all VLAN members. This
can reduce the overall amount of protocol traffic crossing the network, and
provide a shorter reconfiguration time if any link in the spanning tree fails.
R&D
VLAN 1
VLAN 2
Testing
Note: When connecting to a switch that does not support IEEE 802.1Q
VLAN tags, use untagged ports.
8.7A
8.7A
Tagged
Ports
Untagged Ports
Finance
Marketing
VLAN 3
VLAN 4

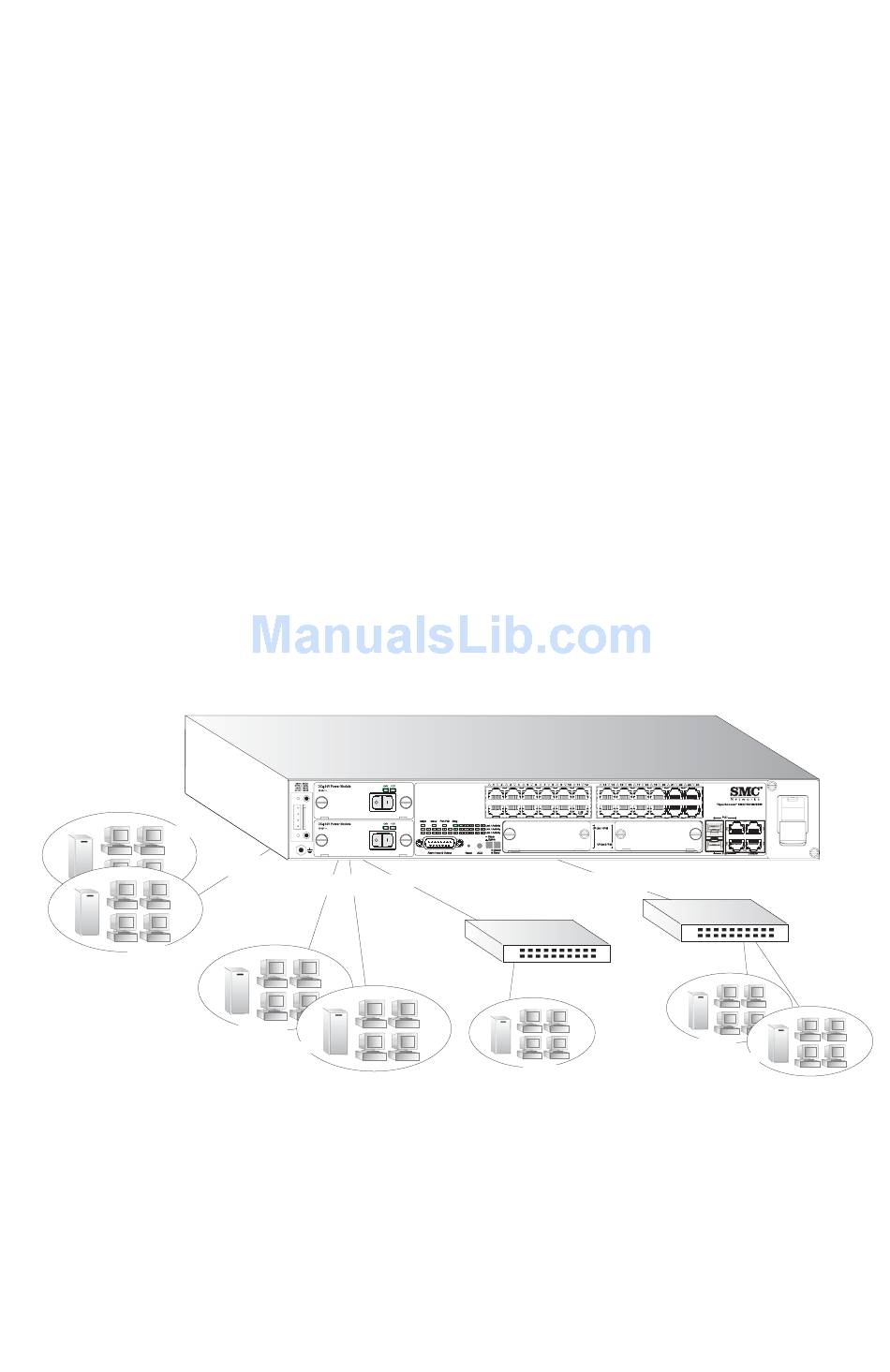

Figure 2-4 Making VLAN Connections

Mgmt Mgmt
Tagged Port
VLAN
unaware
switch
Finance
VLAN 3
A E
PPLICATION
Mgmt Mgmt
R&D
VLAN 1
VLAN 2
XAMPLES
VLAN
aware
switch
Testing
2-5
