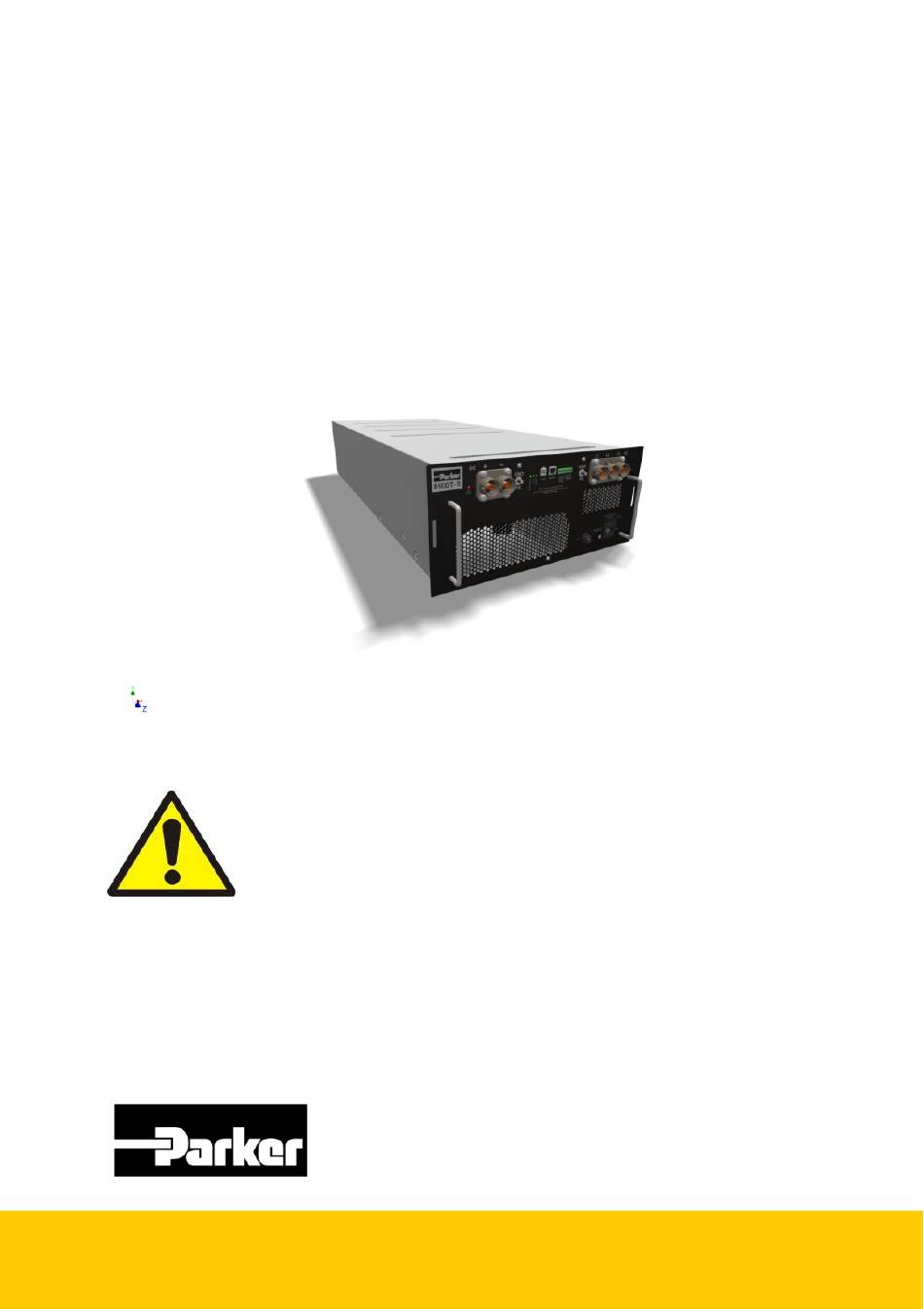

- Page 1 890GTR Inverter Safety & Quickstart Manual HA502996U100 Issue 01 Software Version: 5.3 Please read this Safety Information BEFORE installing the equipment. ENGINEERING YOUR SUCCESS.
-
Page 3: Table Of Contents
890GTR Quickstart Contents 890GTR Inverter Safety & Quickstart Manual ..................1 SAFETY INFORMATION ........................3 Requirements ............................3 Intended Users ..........................3 Application Area ..........................3 Personnel ............................3 Training ............................3 ... -
Page 4: Safety Information
The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalogue and in any other materials provided from Parker or its subsidiaries or authorized distributors. -
Page 5: Product Warnings And Symbols
ON Symbol OFF Symbol WARNING: The 890GTR is not provided with a GFDI device. This inverter must be used with an external GFDI device as required by the Article 690 of the National Electrical Code for the Installation location. Hazards DANGER! – Ignoring the following may result in injury ... - Page 6 890GTR Quickstart In a domestic environment this product may This is a product of the restricted sales cause radio interference in which case distribution class according to IEC supplementary mitigation measures may be 61800-3. It is designated as required.
-
Page 7: Quickstart
QUICKSTART BEFORE YOU START This document covers the steps necessary for a basic start-up of the 890GTR inverter. Inverter start- up should be performed by competent electrical technicians who are familiar with AC inverters and their applications. For detailed installation, safety and applications refer to the 890GTR Product Manual HA502996. -
Page 8: Overview
890GTR Quickstart OVERVIEW Exhaust Fan Assemblies with Guards Can be removed for replacement and Power Connectors maintenance see Fan Maintenance Not supplied with page 6‐4 of main product manual. product. View for reference only Inverter No end‐user serviceable parts contained within Auxiliary Power Output Fuse Support Rails Can be removed for replacement see Supplied with required hardware Fuse Replacement page 6‐7of main to mount in cabinet product manual 7 of 13... -
Page 9: Electrical Installation
890GTR Quickstart Electrical Installation Discrete I/O HVIL (High Voltage Interrupt Loop) & RJ45 Ethernet Socket Phoenix Base Strip MC1,5/9‐g‐3,81 Emergency Stop For communicating Additional Analog & Digital Signals. AMP Mini Mate‐N‐Lok, 6 way, Female with inverter over AC Power Connector Modbus TCP Amphenol Powerlok,300 series, DC Power Connector Status Lights 3 position with X polarization Amphenol Powerlok, 300 series, 2 position with X Polarization AC Ready Status Light + ‐ DC Ready Auxiliary Power Out Status Light IEC Appliance Outlet 120VAC 50/60Hz Control Power In IEC Appliance Inlet Ground Studs Programming Port Auxiliary Power M6x1 Mini‐USB 120VAC 50/60Hz. To Output Fuse For installing configuration ... -
Page 10: Wiring Requirements
890GTR Quickstart Wiring Requirements **WARNING: Parker Inverters must be installed using wiring methods according to the requirements of ANSI/NFPA 70, Canadian Electrical Code Part I, or other appropriate local or national electrical codes. It is the responsibility of the installer to ensure installation is designed and performed in compliance with these standards. - Page 11 890GTR Quickstart DC connection notes: Verify correct polarity before connecting to the DC bus. Improper DC polarity could result in damage to the inverter and/or DC supply. DC supply must provide a method to pre-charge the DC bus capacitors contained within the inverter. Failure to properly precharge the inverter will result in high inrush currents possibly damaging the inverter.
- Page 12 890GTR Quickstart Inverter Inverter 3P AC power 3P AC power connection connection AC HVIL AC HVIL jumper jumper DC power DC power connection connection DC HVIL DC HVIL jumper jumper E‐Stop/HVIL E‐Stop/HVIL Estop & Estop & connector connector Power Supply Power Supply K2 Main AC K2 Main AC Pilot relay Pilot relay BMS estop Relay +24 V (BMS) 24 V Return (BMS) Proposed E‐Stop & HVIL Circuit Proposed E‐Stop & HVIL Circuit w BMS...
-
Page 13: Start-Up Sequence
890GTR Quickstart Start‐up Sequence Proper power up and starting sequence is required to successfully connect the DC supply with the Grid. Failure to follow an acceptable sequence could result in damage to the inverter or associated equipment. Apply control power—connect 120 Volt 50/60 Hz ac power to “control power in”. This supply is typically an Uninterruptable Power Supply (UPS) for black start and VRT features. -
Page 14: Compliance
890GTR Quickstart COMPLIANCE A comprehensive guide to product compliance is available in the 890GTR Product Manual. General Installation Considerations Supply requirements To maintain compliance with the EC Directive 2006/95/EC under EN 50178 (1998) the following conditions must be met: The system battery voltage must not exceed 825V DC ... - Page 16 Free phone: 00 800 27 27 5374 (from AT, BE, CH, CZ, DE, EE, ES, FI, FR, IE, IL, IS, IT, LU, MT, NL, NO PT, SE, SK, UK) © 2015 Parker Hannifin Corporation. All rights reserved. Parker Hannifin Corporation Automation Group, Energy Grid Tie Division...
