RUGGEDCOM RSL910
Installation Guide

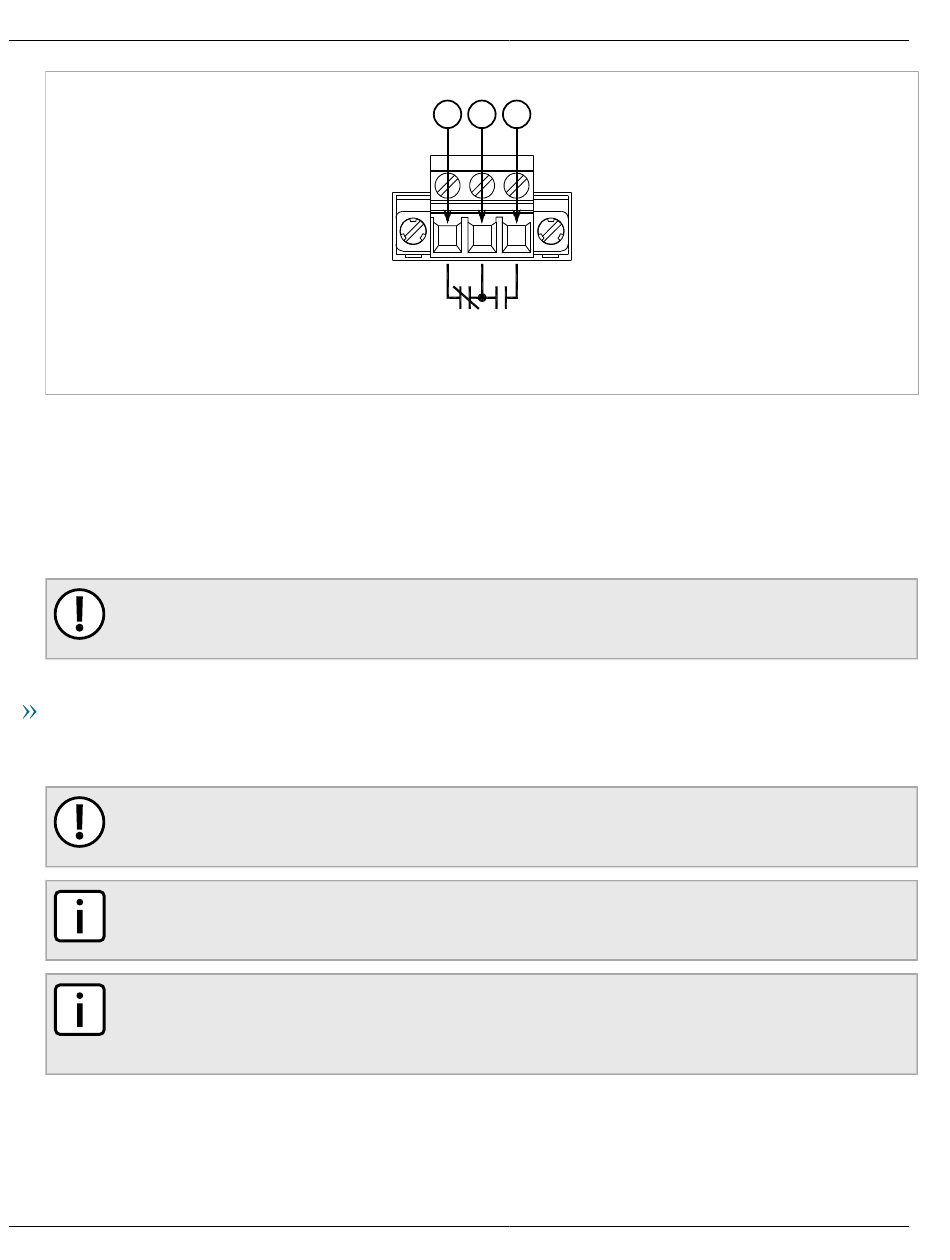

Figure 8: Failsafe Alarm Relay Wiring
1. Normally Closed 2. Common 3. Normally Open
Section 2.5
Connecting to the Device
The following describes the various methods for accessing the ROS console and Web interfaces on the device. For
more detailed instructions, refer to the ROS User Guide for the RUGGEDCOM RSL910.
IMPORTANT!
Ethernet cables should be only be connected/disconnected in a non-hazardous area, or when the
device is not energized.
RS232 Console Port
Connect a workstation directly to either the serial or USB Type-B console port to access the boot-time control and
RUGGEDCOM ROS interfaces. The console port provides access to RUGGEDCOM ROS's console and Web interfaces.
IMPORTANT!
Console ports are intended to be used only as a temporary connection during initial configuration or
troubleshooting.
NOTE
When the USB Type-B console port is in use, the serial console port will echo the console output but not
accept any user input.
NOTE
For Microsoft Windows users, the RUGGEDCOM USB Serial Console driver must be installed on the users
workstation before connecting via the USB Type-B console port. For more information, refer to the
RUGGEDCOM ROS User Guide for the RUGGEDCOM RSL910.
Connecting to the Device
1
2
3
Chapter 2
Installing the Device
13
