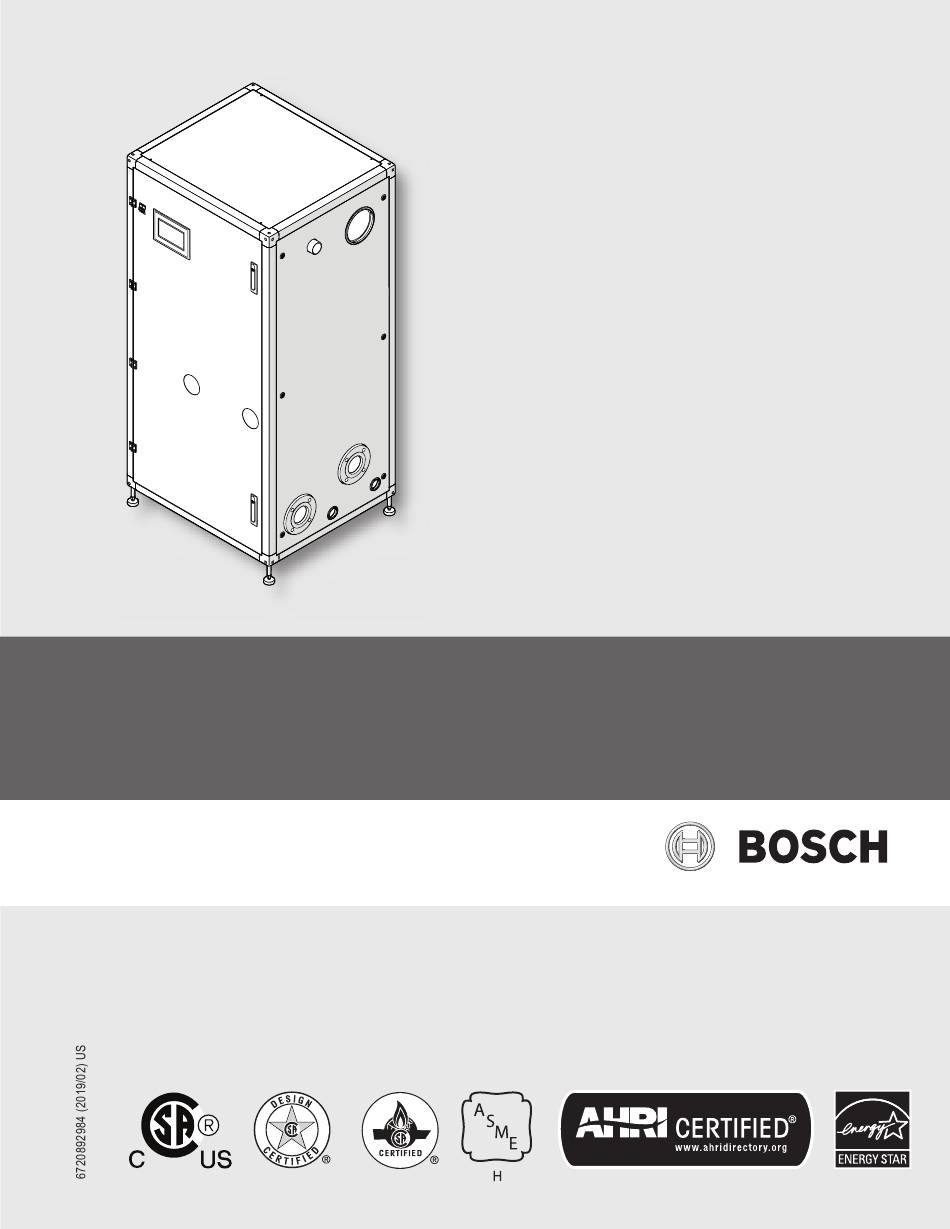

BUDERUS SSB BOILER
CONTROL SYSTEM MANUAL
SSB800 SA | SSB1000 SA | SSB1000 TL
Installation and Service Instructions for Contractors
WARNING:
Improper installation, set-up, modification, operation or maintenance of
the heating system can cause personal injury and property damage.
Follow these instructions precisely.
If you require assistance or further information, contact a trained and
certified installer.
WARNING:
The operating instructions are part of the technical documents that
must be handed over to the owner or operator of the heating system.
Explain to the owner or operator how to use the heating system using
the operating instructions. Make sure that they are familiar with all
required information for the safe and proper operation of the heating
system.
These instructions are available in English and French.
Please keep these instructions for future reference.
