- Page 1 Print Vendor Instructions Paper Size: • 11x17 • Body - 50 lbs brilliant white offset or equivalent • Cover - on pre-printed two tone “Swash” stock. Press: • Body - 1 color, 2-sided • Cover - 1 color, 1 sided Bindery: •...
- Page 2 THIS PAGE INTENTIONALLY BLANK (FOR PLACEMENT ONLY - DO NOT PRINT)

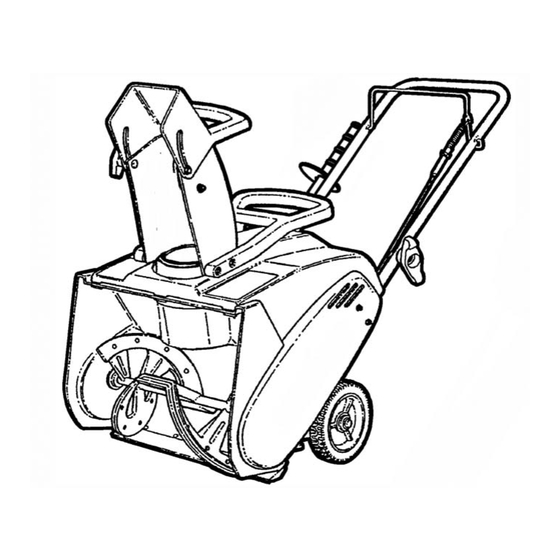

- Page 3 OPERATOR’S MANUAL Single Stage Snowthrower 319M Models Mfg. No. Description 1694583 319M, 3HP Snowthrower, Manual Start 319E Models Mfg. No. Description 1694584 319E,3HP Snowthrower, Electric Start Manual No. 1727190 Rev 4/2004 TP 100-4091-00-SW-S...
- Page 4 M A N U F A C T U R I N G , I N C . 500 N Spring Street / PO Box 997 Port Washington, WI 53074-0997 www.simplicitymfg.com © Copyright 2004, Simplicity Manufacturing, Inc. All Rights Reserved. Printed in USA.
-
Page 5: Table Of Contents
Safety Rules & Information Training ...2 Preperation ...2 Operation ...2-3 Children...3 Clearing Clogged Discharge Chute ...3 Service & Maintenance ...3 Emissions...3 Identification Numbers ...4 Safety Decals ...5 Features & Controls Control Locations ...6-7 General Operation Checks Before Each Start-Up ...8 Operational Warnings ...8 Fuel &... -
Page 6: Safety Rules & Information
Safety Rules & Information This machine is capable to amputating hands and feet. Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. -
Page 7: Operation
21. Keep in mind the operator is responsible for acci- dents occurring to other people or property. 22. Data indicates that operators, age 60 years and above, are involved in a large percentage of power equipment-related injuries. These operators should evaluate their ability to operate the unit safely enough to protect themselves and others from injury. -
Page 8: Identification Numbers
IDENTIFICATION NUMBERS ID Tag When contacting your authorized dealer for replace- ment parts, service, or information you MUST have these numbers. Record your model name/number, manufacturer’s identi- fication numbers, and engine serial numbers in the space provided for easy access. These numbers can be found in the locations shown. -
Page 9: Safety Decals
SAFETY DECALS Safety warning decals are placed at strategic locations on the snowthrower as a constant reminder to the operator of the most important safety precautions. All warning, caution and instructional messages on your snowthrower should be carefully read and obeyed. If any of these decals are lost or damaged, replace them at once. They can be pur- chased from your local dealer. -
Page 10: Features & Controls
Features & Controls CONTROL LOCATIONS The information below briefly describes the function of individual controls. Starting, stopping, and driving require the combined use of several controls applied in specific sequences. To learn what combination and sequence of controls to use for various tasks see the OPERATION section. NOTE: Throttle - This snowthrower does NOT have a throttle for controlling operating speed of engine. -
Page 11: Auger Control
Chute Deflector Control Controls the distance snow is thrown. Tilting the chute deflector UP provides a higher stream and greater dis- tance, while tilting the deflector DOWN provides a lower stream and less distance. Loosen the deflector knob, adjust the deflector, then retighten the knob. Chute Direction Control The chute direction control allows the discharge chute to be rotated to throw snow in the desired direction. -
Page 12: General Operation
Operation GENERAL OPERATION CHECKS BEFORE EACH START-UP 1. Make sure all safety guards are in place and all nuts, bolts and clips are secure. 2. Check the fuel supply. Fill the tank no closer than 1/4 to 1/2 inch of top of tank to provide space for expan- sion. -
Page 13: Fuel & Oil Mixture
FUEL AND OIL MIXTURE The snowthrower uses a two cycle engine that requires a mixture of fuel (gasoline) and oil for lubrication of engine bearings and other moving parts. The correct fuel/oil mixture ratio is 50 to 1. Use fuel/oil mixture chart shown. -
Page 14: Starting The Engine
Operation STARTING THE ENGINE NOTE: The snowthrower engine is designed to operate at cold temperatures. Avoid operating the snowthrower if air temperature is 40° F or warmer. Engine will be diffi- cult to start in warm weather. WARNING Electric start precautions: •... -
Page 15: Operating The Snowthrower
OPERATING THE SNOWTHROWER Before operating snowthrower, review the CHECKS BEFORE EACH START UP on page 8 of this manual. Refer to FEATURES & CONTROLS for control locations. 1. Rotate the discharge chute to the desired direction. 2. Pull the auger control back against the handle to engage the auger. -
Page 16: Regular Maintenance
Regular Maintenance MAINTENANCE SCHEDULE MAINTENANCE ITEMS Check Auger Cable & Stopping Time Check Auger & Flite Shoes Check/Adjust Drive Belt** Clean Cooling Fins * Inspect Spark Plug * Replace Fuel Filter * Refer to the Engine Manufacturer’s Owner’s Manual for engine-related information. ** Adjust after the first 5 hours of operation. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM PROBABLE CAUSE Engine Will Not Start 1. Fuel tank empty. Using Recoil Starter 2. Engine needs choking & priming. 3. Spark plug fouled or wire disconnected. Engine Will Not Crank 1. Power extension cord not plugged into Using Electric Starter machine or 120 Volt outlet. -
Page 18: Auger Control Adjustment
Troubleshooting, Adjustments, & Service WARNING Before beginning any repair stop the engine, remove the key, disconnect the spark plug wire, and wait for all moving parts to stop. AUGER CONTROL ADJUSTMENT Inspection 1. Inspect the auger cable for kinks, wear, or frayed cable strands. -
Page 19: Auger Drive Belt Idler Pulley Adjustment
AUGER DRIVE BELT IDLER PULLEY ADJUSTMENT If the auger control cable has run out of adjustment, the drive belt idler pulley (B) can be adjusted to take up more belt slack. 1. Turn the engine OFF. 2. Loosen the jam nut (B, Figure 5) at the upper end of the cable. -
Page 20: Auger Drive Belt Replacement
Troubleshooting, Adjustments, & Service Figure 8. Drive Belt A. Belt Guide AUGER DRIVE BELT REPLACEMENT Inspect belt frequently for signs of excessive wear. Visually check for cracking, fraying, severed or exposed belt strands. 1. Remove the side belt cover (D, Figure 3). 2. -
Page 21: Auger Flite Shoe Replacement
AUGER FLITE SHOE REPLACEMENT Inspect the flite shoes frequently for signs of excessive wear. Visually check flite shoes for cracking, fraying, and severed or exposed belts. 1. Turn the engine OFF, remove the key, disconnect the spark plug wire, and wait for all moving parts to stop. 2. -
Page 22: Specifications
42” Weight 54 Lbs. REPLACEMENT PARTS Replacement parts are available from your authorized dealer. Always use genuine Simplicity Parts. MAINTENANCE ITEMS Many convenient and helpful service and maintenance items are available from you authorized dealer. Some of these items include:...
