INITIAL INSTALLATION
Follow the instructions for the subframe kit.
Install Front Hitch
1. Lift the hitch assembly (C, Figure 10) slide onto the
slots on tractor (E). Lift back of hitch assembly to
frame and install clevis pins (B), clevis pins (F), and
hair pins (A).
Many approved attachments have color coded quick
couplers to aid in installation. Match the tractor quick
coupler with the like colored attachment quick cou-
pler.
E
C

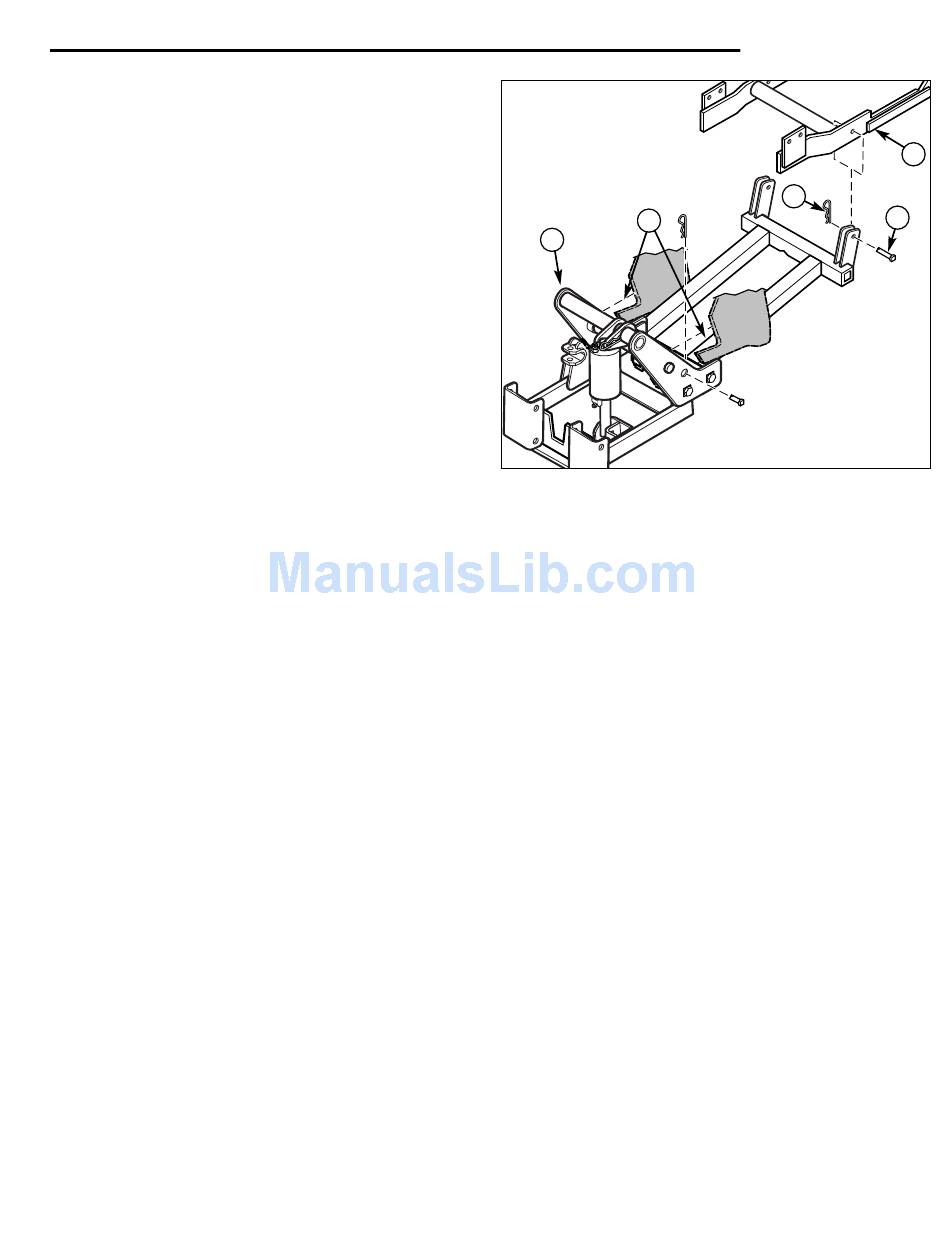

Figure 10. Hitch to Tractor Installation
A. Hair Pin
B. Clevis Pin, 5/8 x 1-13/16 E. Slots on Tractor
C. Assembly
13
Initial Installation
D
A
B
D. Subframe
F. Clevis Pin, 5/8 x 2-1/2
