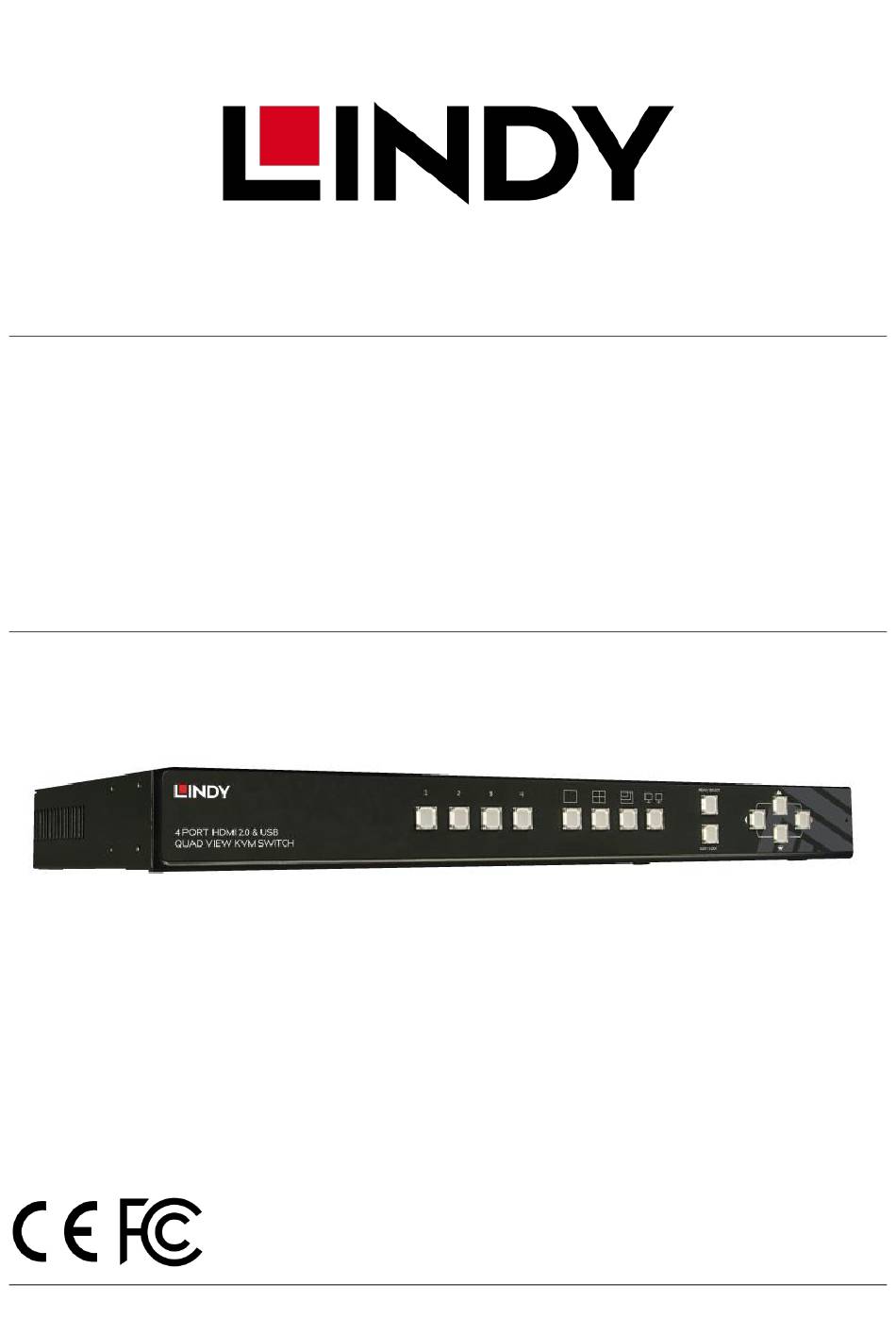

- Page 1 4 Port HDMI 2.0 & USB Quad View KVM Switch User Manual Eng lis h Benutzerhandbuch Deutsch Manuel Utilisateur Français Manuale Italiano No. 32329 lindy.com Tested to comply with FCC Standards For Home and Office Use! © LINDY Group - FIRST EDITION (November 2018)
- Page 2 Thank you for purchasing the 4 Port HDMI 2.0 & USB Quad View KVM Switch. This product has been designed to provide trouble free, reliable operation. It benefits from both a Lindy 2 year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.

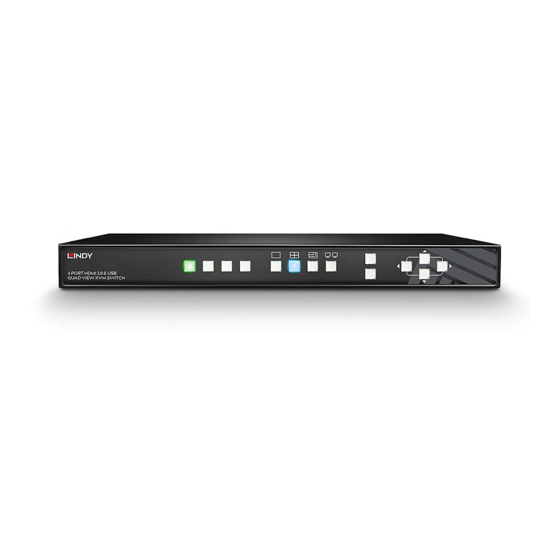

- Page 3 User Manual English Overview & Operation Front Panel 1. Input selection (1, 2, 3 and 4) – Used for the active source selection 2. Full Screen video mode – Select the single source full screen video mode 3. Quad View video mode – Switch to 4 inputs in a single screen video mode 4.
- Page 4 User Manual English IR Remote Control (available separately) 1. Input – Press to select the desired source 2. Navigation buttons – Press to move the cursor up, down, left and right on the menu 3. Menu / select – Press to bring up the OSD menu / Select a desired option on the menu 4.
- Page 5 User Manual English RS232 Control 1. Connect the switch to a PC using the included RS232 serial cable. 2. Open HyperTerminal and create a new connection: Program -> Accessories -> Communications -> HyperTerminal -> New Connection 3. Enter a preferred name. Then click OK. 4.
- Page 6 User Manual English 5. Enter the following data to each field, then press “Apply” Bits per second: 115200 Data bits: 8 Parity: None Stop bits: 1 Flow control: None 6. The HyperTerminal window will appear the settings are complete. To enter commands, press enter.
- Page 7 User Manual English RS232 Commands To see all available commands, type “help” in the window of HyperTerminal. sw - Set active port mode - Set video display mode default - Reset to factory default titletime - Set title bar timeout status - Show video status setname - Set input channel name Note that some commands require specific parameters, you may enter the command to find the...
- Page 8 User Manual English Settings 1. Press to move the cursor, press to select the desired option, and then press Menu / Select to confirm the selection. 2. To exit the configuration menu page, press Exit / Lock. A pop-up window will appear on the screen, press to select Yes to save the changes and to exit the menu.
- Page 9 User Manual English Installation Please follow the following steps to install this 4K HDMI 2.0 & USB Quad View KVM Switch: 1. Please be sure that all the devices included in the installation are shut down. 2. Connect the PCs, servers or devices to be controlled through this switch to the PC Input ports (from 1 to 4) using High Speed HDMI cables and standard USB A/B cables.
- Page 10 LINDY Herstellergarantie – Hinweis für Kunden in Deutschland LINDY gewährt für dieses Produkt über die gesetzliche Regelung in Deutschland hinaus eine zweijährige Hersteller- garantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs.
-
Page 11: Recycling Information
Geräte müssen den Sammel- und Rückgabesystemen zugeführt werden! Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren Recyclingprozess übernehmen die Gerätehersteller. LINDY bietet deutschen Endverbrauchern ein kostenloses Rücknahmesystem an, beachten Sie bitte, dass Batterien und Akkus den Produkten vor der Rückgabe an das Rücknahmesystem entnommen werden müssen und über die Sammel- und Rückgabesysteme für Batterien separat entsorgt werden müssen.
