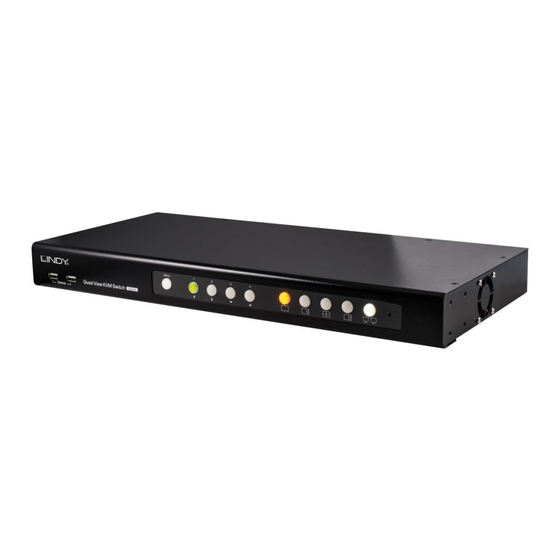

- Page 1 Quad View KVM Switch Pro User Manual English No. 32327 www.lindy.com Tested to Comply with FCC Standards For Home and Office Use! © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (April 2016)
-
Page 2: Table Of Contents
INDEX Introduction Package content Specifications Product OverView Installation - Console connection - Computers connection - Daisy Chain (Cascade) connection - USB Devices connection - Serial Control connection - Optional Remote Module No. 32328 connection Operation - Front Panel Buttons - Keyboard Hotkeys - OSD Menu - Video Mode Control - Daisy Chain (cascade) Control... -
Page 3: Introduction
English Introduction We are glad that you have chosen a LINDY product and thank you for having placed your trust in us. You can rely on our products and our good service at any time. The LINDY Quad View KVM Switch Pro simultaneously displays video signals from four digital sources on a single screen as well as giving individual Keyboard &... -
Page 4: Installation
RS232 – (Input port only): allows you to control the unit through a RS232 connection using the RJ45 to RS232 (DB9) cable. b) Daisy Chain Port (Input and Output): connect up to 8 Quad View (No.32327) switches) switches in a cascade configuration to control a maximum of 32 computers. -
Page 5: Computers Connection
User Manual English COMPUTER CONNECTION 1) Connect all the computers with the supplied cables (1 - USB, 2 - Audio and 3 - DVI-D) to the related PC ports on the Switch as shown below: 2) Connect the Power Supply Unit to the DC port on the Switch and then to a mains socket with the included IEC power cable 3) Power on the Switch with the main power switch and then power on all the other equipment. -
Page 6: Daisy Chain (Cascade) Connection
User Manual English DAISY CHAIN (CASCADE) CONNECTION It’s possible to connect up to 8 KVM Switches in a cascade configuration through a standard Ethernet cable with RJ45 connectors (not included). The console USB Keyboard & Mouse must be connected to the top (Primary) Quad View KVM Switch while every Switch in the cascade must be connected to 1 or 2 monitors where you’ll be able to see the video signals of the computers connected to each switch. -
Page 7: Serial Control Connection
User Manual English SERIAL CONTROL CONNECTION To control the Quad View Switch through a serial connection please use the included DB9 to RJ45 cable plugging the RJ45 connector in the “IN” port on the Switch back panel and the DB9 connector directly to a serial port on the PC to be used for the remote control. -
Page 8: Operation
User Manual English After a short connection process both the PWR and LINK LED on the Quad View Switch will light up and you’ll have a working remote copy of the local console. Operation After you completed all the connections described in the previous chapter please turn on the Switch using the main power switch on the rear panel. -
Page 9: User Manual
User Manual English Next lower port ↑ (Joint-select PC, Audio, USB hub and auxiliary, if Scroll Lock + Scroll Lock + binding is enabled) Next higher port ↓ (Joint-select PC, Audio, USB hub and auxiliary, if Scroll Lock + Scroll Lock + binding is enabled) Previous PC port Scroll Lock + Scroll Lock + BackSpace... -
Page 10: Osd Menu
User Manual English Scroll Lock + Scroll Lock + I + (x) Scroll Lock + Scroll Lock + P + (x) I = Main display, P = subordinate display (where x=number button 1~4, corresponding to the Switch to PIP view connected PC port). - Page 11 User Manual English 1 – Audio Connection: this icon shows which port is connected to the Audio channel of the console port. 2 – USB Hub: this icon shows which port is connected to the USB devices plugged in the KVM front panel ports. 3 –...
- Page 12 User Manual English Please refer to the following table for an explanation of each menu item: Menu Item Options Description Hotkey Scroll Lock, CAPS, Num Lock, Select the hotkey preceding sequence among 5 alternative keys. L CTRL, R CTRL Yes / No Bind hub Bind / Unbind PC and USB switching Yes / No...
-
Page 13: Video Mode Control
Description Read monitor Refresh the connected monitor data. Upgrade firmware Start the firmware update procedure. To update the firmware please contact your local LINDY Technical support. Monitor model Display the model name of the connected monitor. Preferred timing Display the native resolution of the connected monitor... -
Page 14: Daisy Chain (Cascade) Control
User Manual English Full View To switch between the different computers connected when in Full View mode just choose the computer from the OSD list. PIP (Picture in Picture) View In this mode you can easily choose the main video signal from the first OSD list and the subordinate video signal from the second list. -
Page 15: Serial Rs232 Control
Please check all the connections to be sure that all the cables are firmly inserted in the corresponding ports. If the problem persists please contact your local technical service. The contact details can be easily found on our website www.lindy.com... -
Page 16: Ce/ Fcc Statement
LINDY Herstellergarantie – Hinweis für Kunden in Deutschland LINDY gewährt für dieses Produkt über die gesetzliche Regelung in Deutschland hinaus eine zweijährige Herstellergarantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs. -
Page 17: Recycling Information
