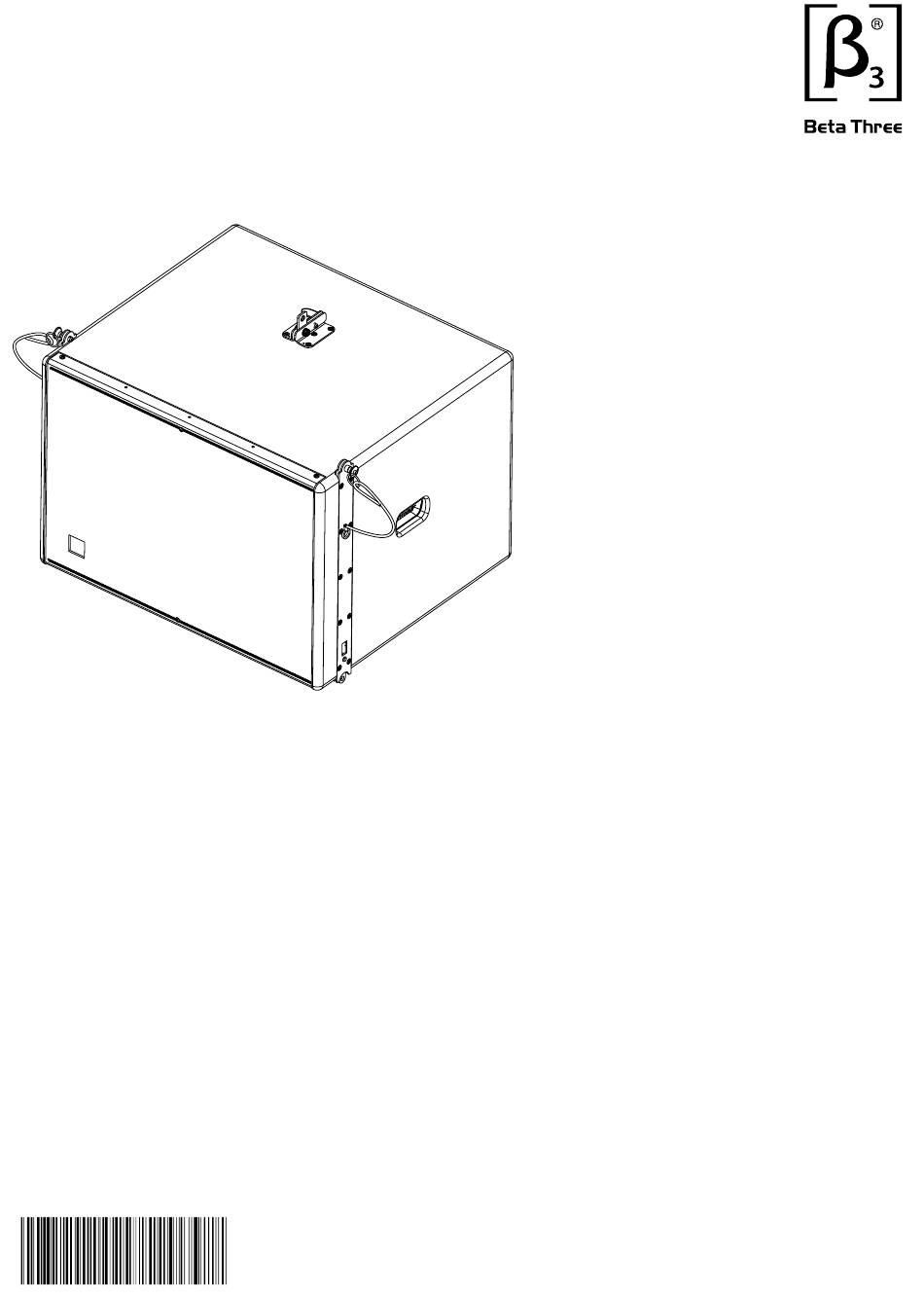

- Page 1 R Series Dual 12 LH Medium Line Array System User Manual U M- R 1 2 - 2 0 0 9 0 6 2 9 v e r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buying product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
CONTENT R Series Medium Line Array System CONTENT PRODUCT INTRODUCTION Main Features Product Description Applications CONNECTION Push Terminals Nl4 Connection System Connection Example INSTALLATION Installation Guidance TECHNICAL SPECIFICATIONS Specifications Frequency Response And Impedance Curve Dimensions Product information updated without notification, please visit www.elderaudio.com for the... -
Page 4: Product Introduction

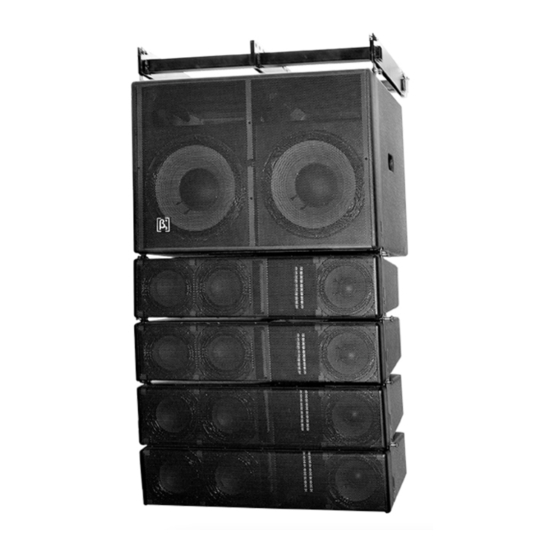

PRODUCT INTRODUCTION R Series Medium Line Array System Double 12 LF Speaker Main Features Double 12 LF drivers inverted low frequency speaker. Frequency Response 45 Hz 300 Hz (-3dB). Sensitivity 92 dB, Max Sound Level 122 dB. RMS Power 900W, Peak Power 3600w. -
Page 5: Connection
CONNECTION R Series Medium Line Array System Two NL4 connectors are available for amplifier connections. Paralelled connector is very convenient for another speaker connection. Speakon 1+ 1- INPUT Warranty does not cover damage caused by incorrect installation, operation or overload. -
Page 6: Installation
INSTALLATION COMPACT LINE ARRAY SOUND REINFORCEMENT SYSTEM R Series Medium Line Array System Installation Guidance (1) Open the package; take out R6, R12 and the accessories. (2) Install four U-rings into one flying frame. (3) Demount the ball-catch bolt from the pulling plate of R6, place R12 pulling plate lockpin into the slot of R6 pulling plate with holes against each other;... -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS R Series Medium Line Array System Specifications Speaker Testing Method Product: Passive Paint Wooden Full 1. Frequency Response Range Speaker Use pink noise to test the speaker in the anechoic chamber, adjust the LF Driver: 2 12" LF Drivers... -
Page 8: Dimensions
TECHNICAL SPECIFICATIONS R Series Medium Line Array System Dimensions 730mm Front view [28.74in] 720mm [28.35in] Side view 630mm [24.80in] 83mm 312mm [3.26in] [12.83in] Back view... - Page 9 Notes:...
- Page 10 www.beta3pro.com...
