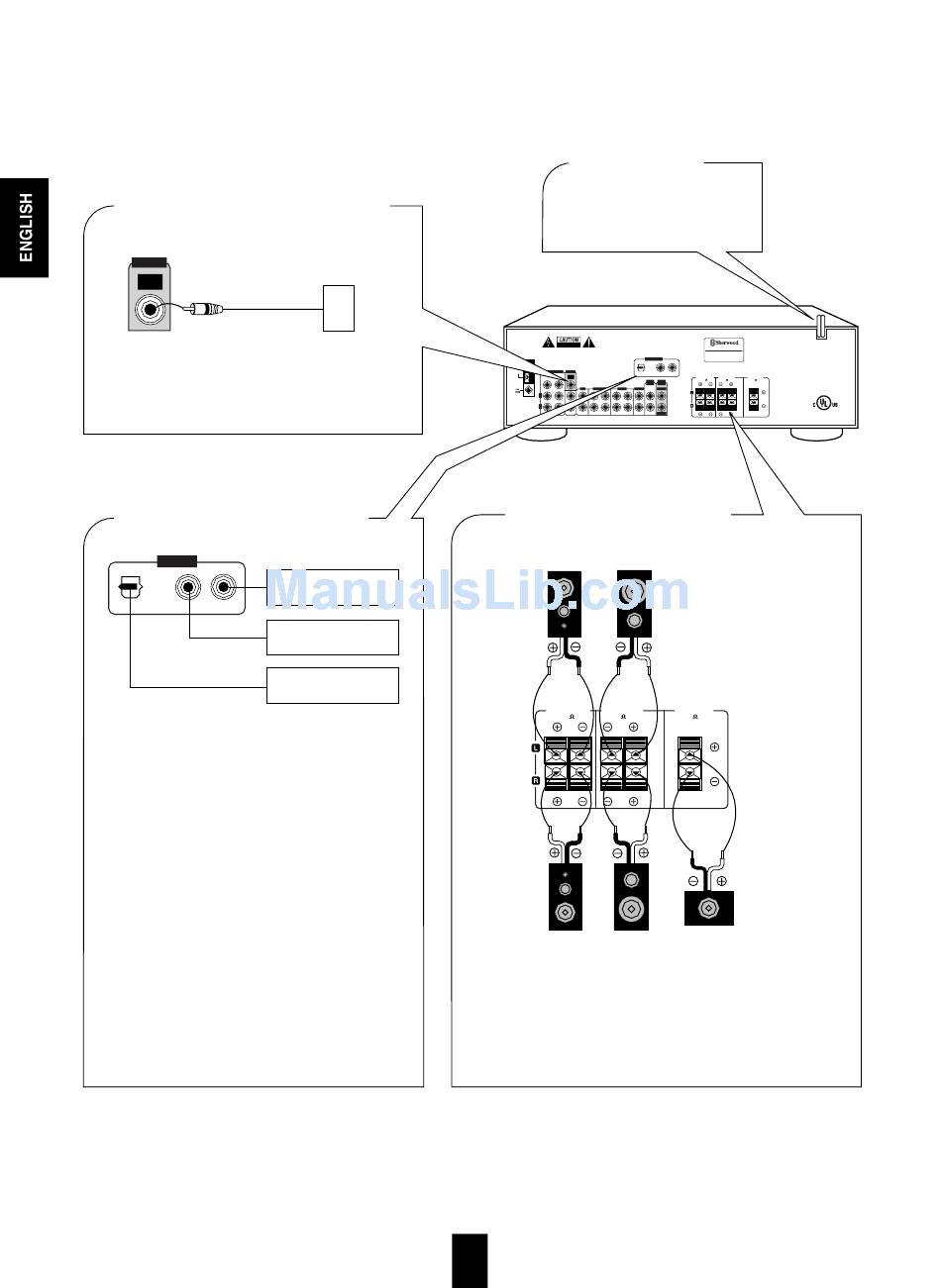

I SUBWOOFER PRE OUT connection
PRE OUT
SUB
WOOFER
• To emphasize the deep bass sounds, connect a
powered subwoofer.
I CONNECTING DIGITAL INPUTS
DIGITAL IN
OPTICAL
COAX 1
COAX 2
• The COAXIAL or the OPTICAL DIGITAL OUTs
of the components that are connected to CD and
VIDEO 1~3 of this unit can be connected to these
DIGITAL INPUTS.
• A digital input should be connected to the
components such as a CD player, LD player, DVD
player, etc. capable of outputting DTS Digital
Surround, Dolby Digital or PCM format digital
signals.
• For details, refer to the operating instructions of the
component connected.
• When making the COAXIAL DIGITAL
connection, be sure to use a 75Ω COAXIAL cord,
not a conventional AUDIO cord.
• All of the commercially available optical fiber cords
cannot be used for the equipment. If there is an
optical fiber cord which cannot be connected to your
equipment, consult your dealer or nearest service
organization.
Powered subwoofer
Component with
COAXIAL DIGITAL OUT
Component with
COAXIAL DIGITAL OUT
Component with
OPTICAL DIGITAL OUT
I AC INPUT CORD
Plug this cord into a wall AC
outlet.
MANUFACTURED UNDER LICENSE FROM DIGITAL THEATER SYSTEMS,INC.
US PAT. NO. 5,451,942, 5,956,674, 5,974,380, 5,978,762 AND OTHER WORLD-WIDE
PATENTS ISSUED AND PENDING. "DTS" AND "DTS DIGITAL SURROUND" ARE
REGISTERED TRADEMARKS OF DIGITAL THEATER SYSTEMS, INC.
AVIS : RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.
COPYRIGHT 1996, 2000 DIGITAL THEATER SYSTEMS, INC. ALL RIGHTS RESERVED.
WARNING : SHOCK HAZARD-DO NOT OPEN.
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
AM
6-CH DIRECT INPUT
PRE OUT
LOOP
OPTICAL
SUB
SUB
CENTER
WOOFER
WOOFER
CD
TAPE MON.
VIDEO 1
VIDEO 2
L
L
R
ANTENNA
ANTENNA
R
FRONT
REAR
AUX
PLAY
REC
PLAY
REC
PLAY
I CONNECTING SPEAKERS
Rear left
Front left
FRONT
REAR
SPEAKERS
SPEAKERS
(6 )
(6 )
Rear right
Front right
• Never short-circuit the + and - speaker cords.
• Be sure to connect speakers firmly and correctly according to
the channel (left and right) and the polarity (+ and -).
• Be sure to use the speakers with the impedance of over 6Ω.
• For installing the speakers, refer to "Speaker placement" on
page 14.
6
SER. NO
AC INPUT
120V~60Hz
200W
RD-6108
MODEL NO.
AUDIO/VIDEO RECEIVER
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
DIGITAL IN
MADE IN CHINA
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
DESIGNED IN USA
(1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
COAX 1
COAX 2
FRONT
REAR
CENTER
SPEAKERS
SPEAKERS
SPEAKER
MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES.
(6 )
(6 )
(6 )
VIDEO
VIDEO
"DOLBY", "PRO LOGIC", AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF
IN
OUT
DOLBY LABORATORIES.
VIDEO 2
MONITOR
R
LISTED
VIDEO 1
VIDEO 1
E208974 7H86
AUDIO/VIDEO
EQUIPMENT
CENTER
SPEAKER
(6 )
Center
