Schlage M400 Series Installation Instructions Manual

*44487296*
44487296
Single Electromagnetic Locks: M420, M450, M490
Automatic Voltage Selection (AVS)
Magnet immediately detects 12VDC or 24VDC when power is
connected.
Anti-Tamper Switch (ATS)
An indication is provided should the magnet cover become
unsecured from lock.
Magnetic Bond Sensor (MBS)
Detects proper bond between magnet and armature. It can be
monitored remotely and locally with an LED.
M420 (Traffic Control)
UL1034 and 10C/500lb and 3hr rating
M450 (High Security)
UL1034 and 10C/1000lb and 3hr rating
Basic
Auto Voltage Selection (AVS) for 12 or 24VDC
• Units shall not impair operation of panic hardware mounted on door.
• Units shall not impair intended operation of an emergency exit.
• Units/Models are intended to be connected to UL Listed Equipment, not
intended for Burglar or Fire Alarm Initiating or Indicating Devices.
• Ambient Conditions - "For Indoor Use Only".
M400 Series
M420/M450
Armature plate assembly
Features
LED
Provides local indication of MBS status.
Door Position Switch (DPS)
Indicates whether door is open or closed. This feature is used in
conjunction with the MBS.
Relock Time Delay (RTD)
Relock time can be changed. Range is 1 - 30 seconds.
Models
M490 (Max Security)
UL1034 and 10C/1500lb and 3hr rating
Trims
Plus
Basic features + Door Position Switch (DPS), Magnetic Bond
UL Requirements
• This device complies with part 15 of FCC rules.
Operation is subject to following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including any
interference that may cause undesired operation. Changes or
modifications not expressly approved by party responsible for compliance
could void user's authority to operate equipment.
Installation Instructions

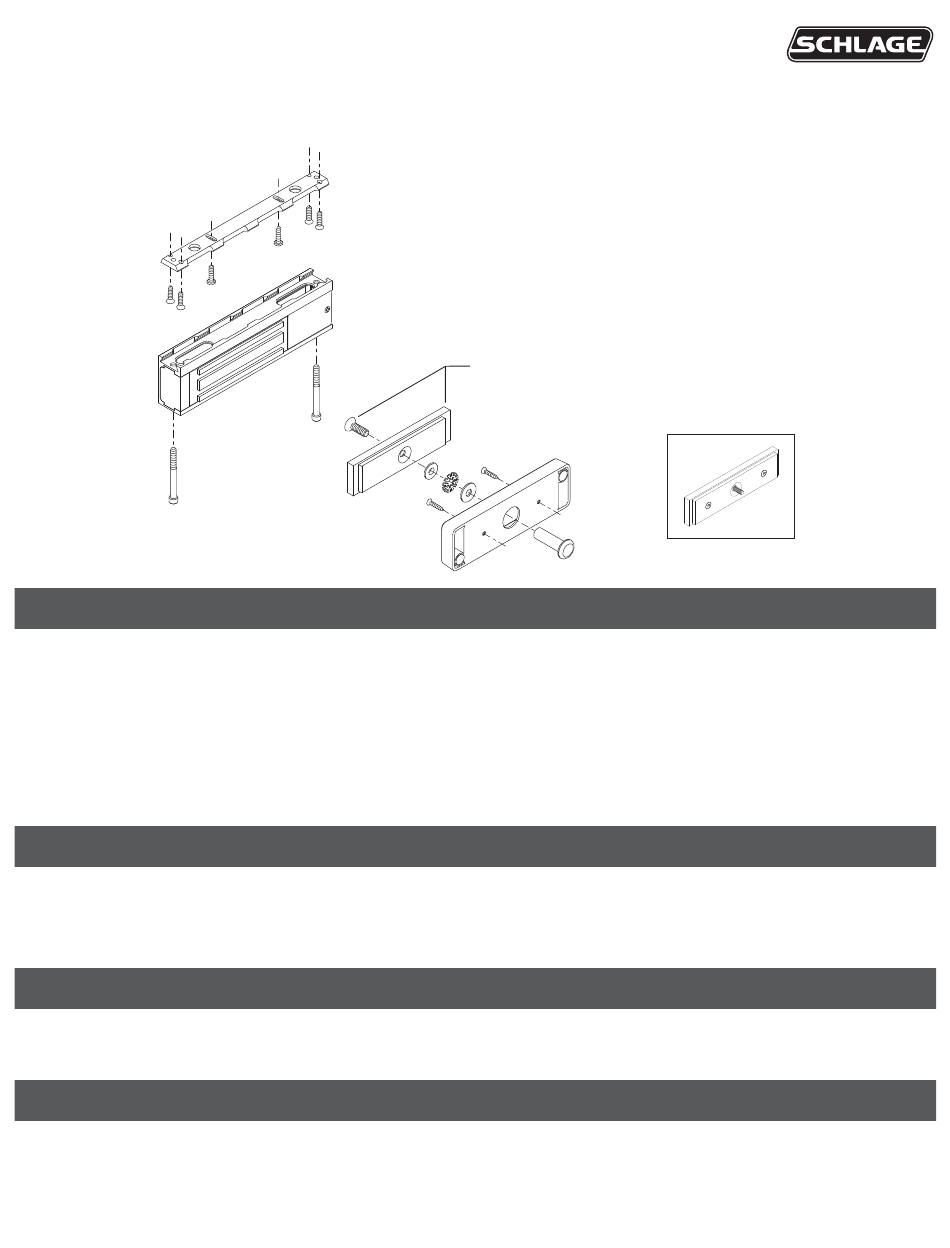

M490 Armature
plate assembly
