Insignia NS-PMG248 User Manual

QUICK SETUP GUIDE
24" FHD LED Backlit
Gaming Monitor
NS-PMG248
PACKAGE CONTENTS
FIND YOUR USER GUIDE ONLINE!
• 24" FHD LED Backlit Gaming Monitor
1 Go to www.insigniaproducts.com.
• Stand base
2 Use the search bar to find NS-PMG248.
• Screw M6 10
3 Select Support & Downloads.
• Quick Setup Guide
4 Next to User Guide, select the language you want.

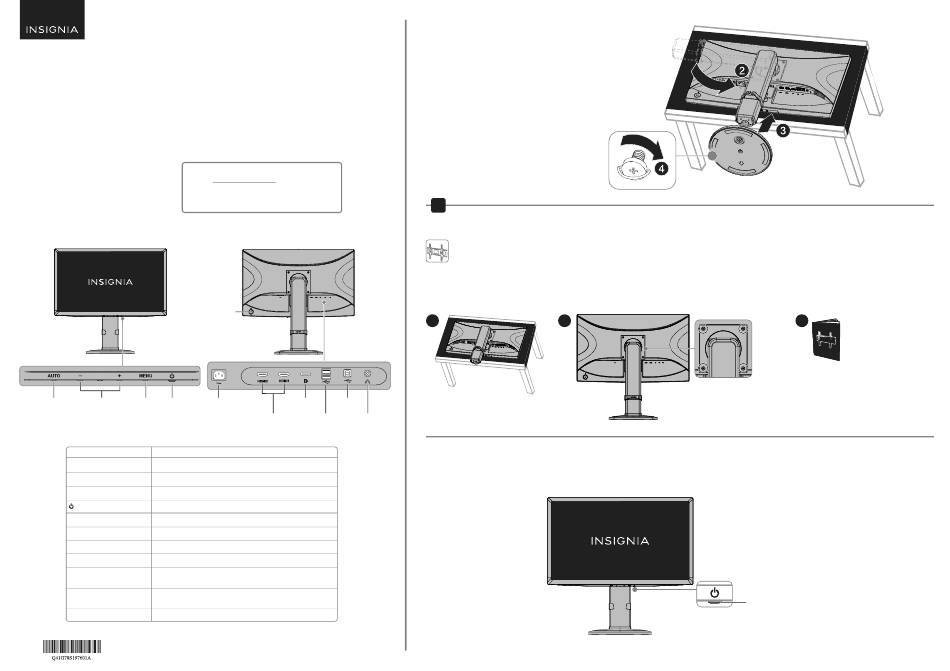

FEATURES
Front
AUTO button Adjustment buttons MENU Power
button button
DESCRIPTION FUNCTION
AUTO button Selects the video input source or closes the menu when it is open.
Adjustment buttons Navigate up or down in the menu or increase or decrease a setting.
MENU button Opens the menu and confirms selections.
Power button Turns your monitor on or off.
Cable lock slot Slide a lock cable through this slot to secure your monitor to another object.
Power cord connector Plug the AC power cord into this connector.
HDMI jacks Connect a computer with an HDMI jack to one of these ports.
DisplayPort Connect a computer with a DisplayPort to this port.
USB downstream ports Connect USB device such as mouse or keyboard on these two downstream
ports.
USB upstream port Connect one end of the USB upstream cable to the USB upstream port on the
monitor, and then connect the other end to a USB port on your computer.
Headphone jack Connect a headset to this jack.
Before using your new product, please read these instructions to prevent any damage.
Back
Cable
lock slot
Power cord DisplayPort USB
connector upstream
port
HDMI jacks USB Headphone
downstream jack
ports
USING THE STAND
You'll need: Soft surface and Phillips screwdriver
1 Place the monitor screen face down on a cushioned, clean surface
with the bottom edge hanging over the edge of the surface.
2 Rotate the monitor stand down.
3 Push the stand base onto the stand.
4 Tighten the screw to secure your monitor to the base.
OR
USING A WALL MOUNT
How do I prepare my monitor for wall mounting? (not for use with a monitor stand)
You'll need: Soft surface and Phillips screwdriver
1 Place the monitor screen face down on a 2 Remove the four screws that secure the stand to the back of your monitor.
cushioned, clean surface.
1 2
TURNING ON MY MONITOR
Press the power button on the front of your monitor.
3 Attach the wall-mount bracket to your monitor. See the
instructions that came with your wall mount for more
information about how to correctly mount your monitor.
Your monitor takes type M6 wall-mount screws.
3
Your monitor has four VESA
mounting holes on the back. If you
attach a wall-mount bracket to the
back of your monitor, make sure that
you attach it to all four holes. If you
do not use all four mounting holes,
your monitor may fall and cause
property damage or personal injury.
Power button
