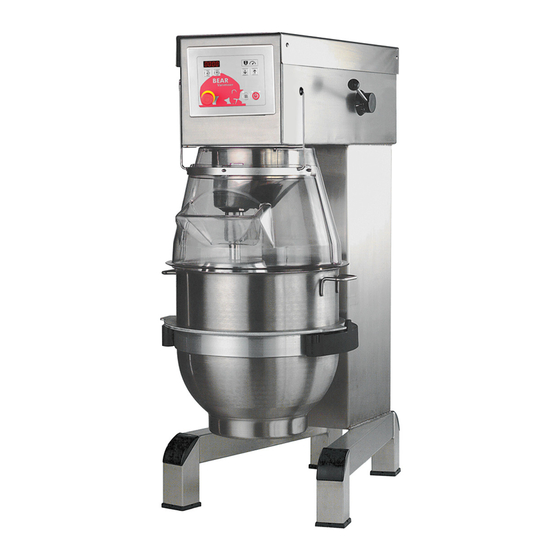

- Page 1 Operating Instructions A R 10 0 V L -1L Varimixer A/S P: +45 4344 2288 Ordrenummer: 00343 Kirkebjerg Søpark 6 E: info@varimixer.com Translation of the original user manual DK-2605 Brøndby www.varimixer.com April 2018 Denmark...
-
Page 2: Table Of Contents
ontents ..................................2 eneral ..................................2 afety : ..............................2 nstallatIon of new mIxer : ............................... 3 onstruCtIon of the mIxer : ........................... 3 he maxImum CapaCIty of the mIxer : ............................3 eCommended maxImum speeds : ..............................4 peratIon of the mIxer ................................ -
Page 3: C Onstruction Of The Mixer
onstruCtIon of the mIxer eCommended maxImum speeds Safety switch for lid Motor relay / Speed (extra equipment) thermal over- adjustment load relay Fuse Safety switch for safety guard Bowl lift motor Motor 3 kW Safety switch for bowl lift Micro switch for the upper position of the bowl arms Micro switch for... -
Page 4: Peration Of The Mixer
peratIon of the mIxer Fig. 1 Operation panel. Place the tool in the bowl. Open the safety guard Bowl up Bowl down Note: the bowl arms must be in the lowest position. Place the bowl in the bowl arms. Check that the bowl is pushed right back into the arms and that the “centre ear”... -
Page 5: Utomatic Lowering Of The Bowl
utomatIC lowerInG of the bowl If the timer is in use, the bowl can automatically be lowered when the time runs out and the mixer stops. • While the mixer is running, briefly press , The green LED by will flash until the mixer stops. •... -
Page 6: M Aintenance And Lubrication
orreCt use of tools The mixer must not be started until the screws Whips should not be struck against hard objects which hold the lid are inserted. as e.g. the edge of the bowl. This will make the life of the tool shorter due to increasing deformity. Start the mixer, and set the speed back to low speed. -
Page 7: Ist Of Errors And Possible Solutions
Ist of errors ossIble solutIon In case of other errors, contact the supplier. A rattling sound from the closed part of the mixer. Adjustment of special v-belt The mixer starts “striking” when kneading dough Adjustment of special v-belt which normally causes no problems. The mixer changes its speed by itself. -
Page 8: Djustment Of Bowl Fixing
djustment of bowl CenterInG fig.6 Adjustment of bowl fixing and bowl centering First find the present bowl centering: mount the beater and the bowl, then raise the bowl arms up to normal working position. With your hand turn the beater, and then measure the distance between beater and bowl edge. -
Page 9: Lectrical Diagrams
rror Codes If the mixer is overloaded, the motor will stop and will be shown for ‘overheat’ in the display. • Allow the mixer to cool down. • After a short time, the display will change to normal mode. • The mixer can be started again. - Page 10 leCtrICal IaGrams L+ 24VDC /7.2 /5.8 /5.8 /5.8,/7.4 Thermister -PCB1 /5.5 Down PSB Front panel VL-1S Fuse 24V/8A -TR1 Down 230VAC 230VAC 24VAC 24VAC Supply Current Recti er bridge for PCB 230VAC/24VAC Bowl Bowl bottom micro micro -PCB2 +24VDC +24VDC Down lifting control unit Overvoltage relay...
