Emerson Fisher 67D Series Instruction Manual

Instruction Manual
Form 5858
July 2010
67D Series Pressure Reducing Regulators
P1183
TyPe 67D oR 67DR RegulaToR
!
Failure to follow these instructions or to
properly install and maintain this
equipment could result in an explosion,
fire and/or chemical contamination
causing property damage and personal
injury or death.
Fisher regulators must be installed,
®
operated, and maintained in accordance
with federal, state, and local codes, rules
and regulations, and emerson Process
Management Regulator Technologies,
inc. instructions.
if the regulator vents gas or a leak
develops in the system, service to
the unit may be required. Failure to
correct trouble could result in a
hazardous condition.
installation, operation, and maintenance
procedures performed by unqualified

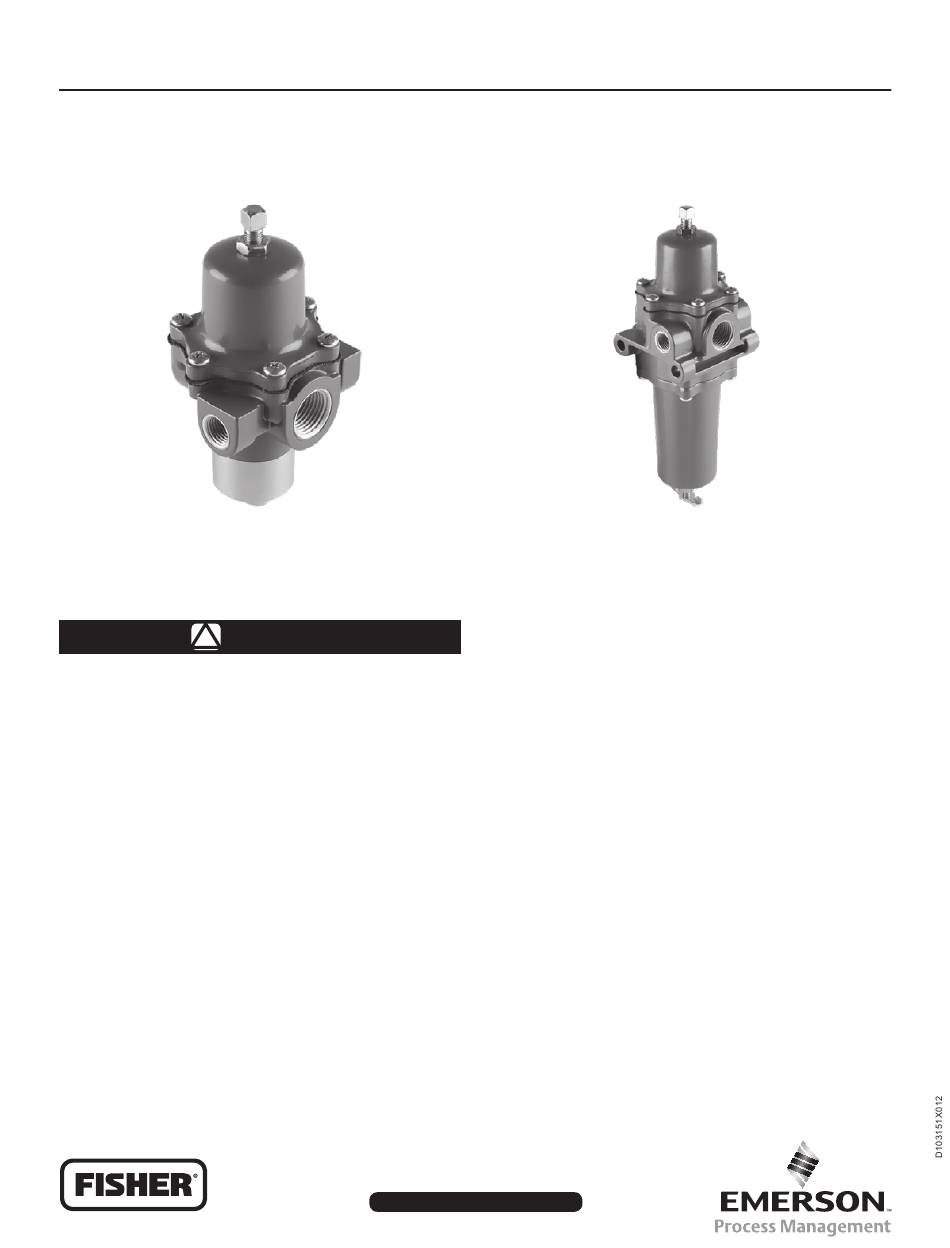

Figure 1. 67D Series Pressure Reducing Regulators
WaRning
www.fisherregulators.com
P1182
TyPe 67DF oR 67DFR FilTeReD RegulaToR
personnel may result in improper
adjustment and unsafe operation. either
condition may result in equipment
damage or personal injury. use qualified
personnel when installing, operating,
and maintaining the 67D Series Pressure
Reducing Regulators.
introduction
Scope of the Manual
This manual provides instructions for the installation,
maintenance, and parts ordering information for
67D Series regulators. Instructions and parts lists for
other equipment mentioned in this instruction manual,
as well as for other 67 Series regulators, are found in
separate manuals.
Specifications
Some general 67D Series ratings and other
specifications are given on page 2. A label on the
spring case gives the control spring range for a given
regulator as it comes from the factory.
67D Series
