Quadra-Fire QFI30FB Installation Instructions

Firescreen, Firescreen Leaf, Tuscan Bar and Tudor Panel Doors
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fi replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
fl ammable materials.
• Keep clothing, furniture, draperies and other fl ammable
materials away.
• Do NOT operate with protective barriers open or removed.
• The doors must remain closed if children will be present
during the operation of the fi replace.
• The doors may be made operable per these instructions.
This may be done only upon request of a person responsible
for the use and operation of the fi replace.
• The doors can be returned to the locked position following
these instructions.
• These instructions are to be left with a person responsible
for the use and operation of the fi replace.
INTRODUCTION
The surround is used to fi ll the space between the insert
and the solid fuel fi rebox opening. The front is placed onto
the surround after it is attached to the insert.
WARNING! Risk of Fire! Combustible materials MUST
NOT overlap or be placed under a surround.
Combustible Materials Specifi cation
Materials made of or surfaced with wood, compressed
paper, plant fi bers, plastics, or other material that can ig-
nite and burn, whether fl ame proofed or not, or plastered
or unplastered shall be considered combustible materials.
CAUTION! Do not install damaged components.
SURROUND INSTALLATION
1. The surround is shipped with the brackets attached for
shipping purposes. Remove the surround brackets from
the surround by removing two screws on each bracket.
2. Mount the left and right surround brackets onto the
appliance with four screws. See Figure 1.
Models: QFI30FB, QFI35FB
- Installation Instructions -
Quadra-Fire • Insert Door Installation Instructions • 2235-912 Rev. D • 5/11
3. Mound the surround to the surround brackets with four
screws. See Figure 1.
4. Attach the surround vanity panel with four 10-24 x 3/4
Phillips pan head screws. See Figure 2.
5. Once the surround is attached, slide the appliance
backward until the surround is tight to the existing non-
combustible fi nished wall.

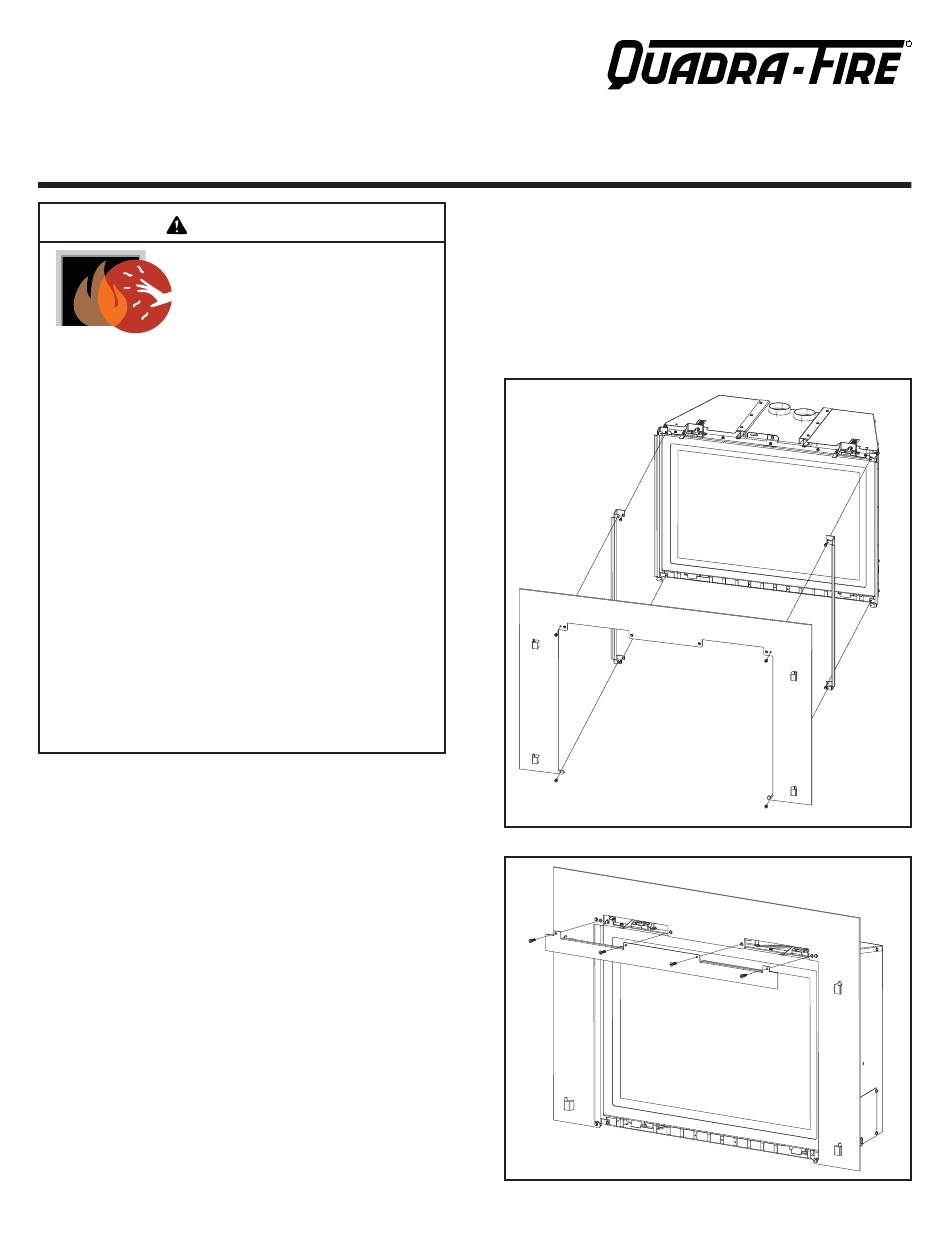

Figure 1
Figure 2
