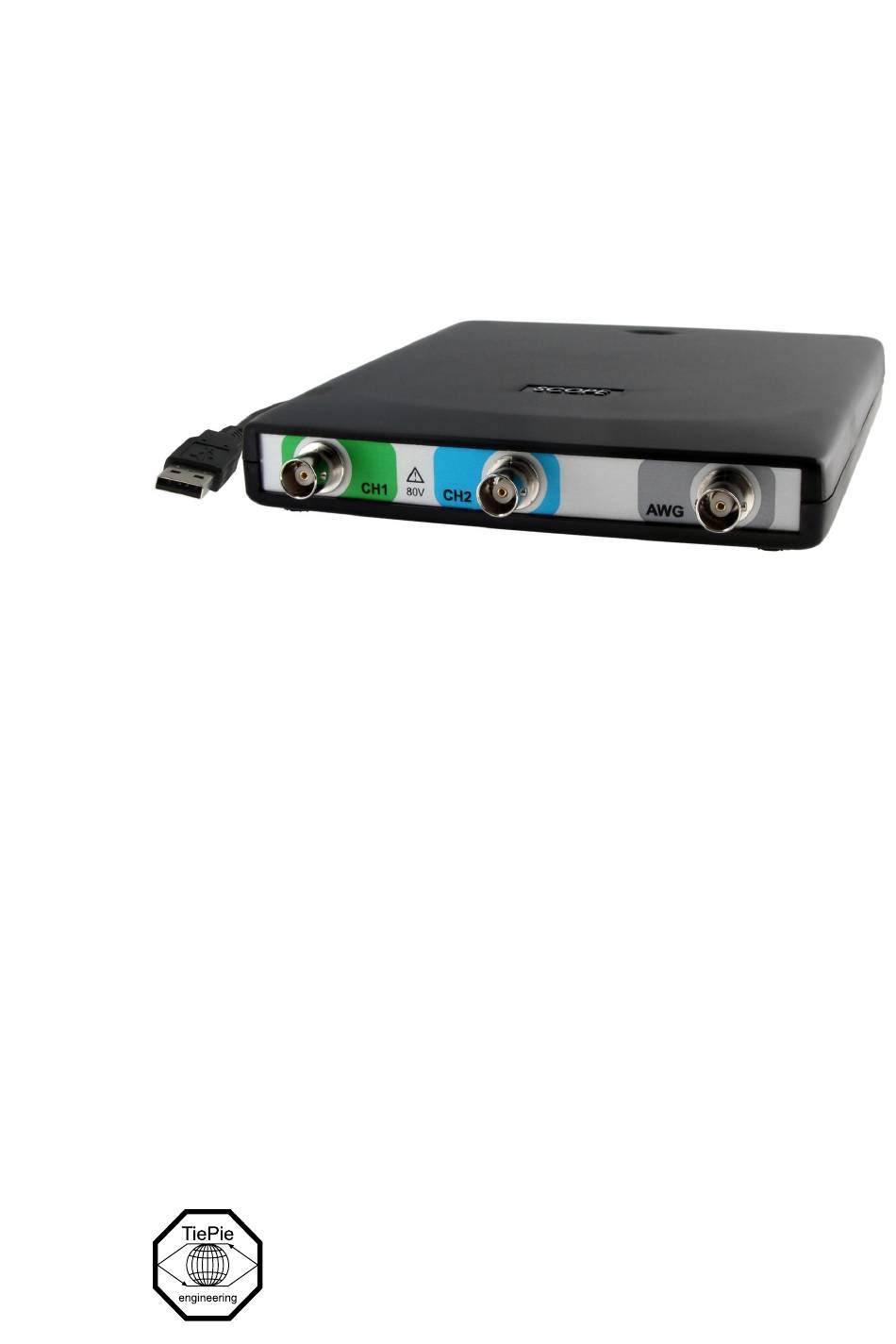

- Page 1 Handyscope HS5 User manual TiePie engineering...
- Page 2 Copyright ©2018 TiePie engineering. All rights reserved. Revision 2.22, August 2018 Despite the care taken for the compilation of this user man- ual, TiePie engineering can not be held responsible for any damage resulting from errors that may appear in this man- ual.
-
Page 3: Table Of Contents
Contents 1 Safety 2 Declaration of conformity 3 Introduction 3.1 Sampling ....... . . 3.2 Sample frequency . - Page 4 8.2 USB ........8.3 Extension Connector .
-
Page 5: Safety
Do not use the equipment if it does not operate properly. Have the equip- ment inspected by qualified service personal. If necessary, return the equip- ment to TiePie engineering for service and repair to ensure that safety fea- tures are maintained. - Page 6 Chapter 1...
-
Page 7: Declaration Of Conformity
Declaration of conformity TiePie engineering Koperslagersstraat 37 8601 WL Sneek The Netherlands EC Declaration of conformity We declare, on our own responsibility, that the product Handyscope HS5-540(XM/S/XMS) Handyscope HS5-530(XM/S/XMS) Handyscope HS5-220(XM/S/XMS) Handyscope HS5-110(XM/S/XMS) Handyscope HS5-055(XM/S/XMS) for which this declaration is valid, is in compliance with... - Page 8 Environmental considerations This section provides information about the environmental impact of the Handy- scope HS5. Handyscope HS5 end-of-life handling Production of the Handyscope HS5 required the extraction and use of natural resources. The equipment may contain substances that could be harmful to the environment or human health if improperly handled at the Handyscope HS5’s end of life.
-
Page 9: Introduction
Introduction Before using the Handyscope HS5 first read chapter about safety. Many technicians investigate electrical signals. Though the measurement may not be electrical, the physical variable is often converted to an electrical signal, with a special transducer. Common transducers are accelerometers, pressure probes, current clamps and temperature probes. -
Page 10: Sampling
Resolution Handyscope HS5 Channels 8 bit 12/14 bit 16 bit 40 MS/s 20 MS/s Model 540 6.25 MS/s CH1+CH2 20 MS/s 10 MS/s 40 MS/s 20 MS/s Model 530 6.25 MS/s CH1+CH2 20 MS/s 10 MS/s 20 MS/s 10 MS/s Model 220 3.125 MS/s CH1+CH2... -
Page 11: Sample Frequency
Figure 3.1: Sampling The sine wave in figure is sampled at the dot positions. By connecting the adjacent samples, the original signal can be reconstructed from the samples. You can see the result in figure 3.2. Figure 3.2: ”connecting” the samples Sample frequency The rate at which the samples are taken is called the sampling frequency, the number of samples per second. -
Page 12: Aliasing
Figure 3.3: The effect of the sampling frequency The sampling frequency must be higher than 2 times the highest frequency in the input signal. This is called the Nyquist frequency. Theoretically it is possible to reconstruct the input signal with more than 2 samples per period. In practice, 10 to 20 samples per period are recommended to be able to examine the signal thoroughly. -
Page 13: Digitizing
Figure 3.4: Aliasing In figure 3.4, the green input signal (top) is a triangular signal with a frequency of 1.25 kHz. The signal is sampled with a frequency of 1 kHz. The corresponding sampling interval is 1/1000Hz = 1ms. The positions at which the signal is sampled are depicted with the blue dots. -
Page 14: Signal Coupling
Figure 3.5: The effect of the resolution The Handyscope HS5 measures at e.g. 14 bit resolution (2 =16384 levels). The smallest detectable voltage step depends on the input range. This voltage can be calculated as: V oltageStep = F ullInputRange/LevelCount For example, the 200 mV range ranges from -200 mV to +200 mV, therefore the full range is 400 mV. - Page 15 When using an oscilloscope probe in 1:1 the setting, the bandwidth of the probe is only 6 MHz. The full bandwidth of the probe is only obtained in the 1:10 setting The x10 attenuation is achieved by means of an attenuation network. This attenu- ation network has to be adjusted to the oscilloscope input circuitry, to guarantee frequency independency.
- Page 16 Chapter 3...
-
Page 17: Driver Installation
The driver setup program and measurement software can be found in the down- load section on TiePie engineering’s website and on the CD-ROM that came with the instrument. It is recommended to install the latest version of the software and USB driver from the website. - Page 18 Figure 4.1: Driver install: step 1 When drivers were already installed, the install utility will remove them before installing the new driver. To remove the old driver successfully, it is essential that the Handyscope HS5 is disconnected from the computer prior to starting the driver install utility.
- Page 19 Figure 4.3: Driver install: Finished Driver installation...
- Page 20 Chapter 4...
-
Page 21: Hardware Installation
Hardware installation Drivers have to be installed before the Handyscope HS5 is connected to the computer for the first time. See chapter for more information. Power the instrument The Handyscope HS5 is powered by the USB, no external power supply is required. Only connect the Handyscope HS5 to a bus powered USB port, otherwise it may not get enough power to operate properly. -
Page 22: Plug Into A Different Usb Port
Handyscope HS5 as different hardware and will install the drivers again for that port. This is controlled by Microsoft Windows and is not caused by TiePie engineering. Operating conditions The Handyscope HS5 is ready for use as soon as the software is started. However, to achieve rated accuracy, allow the instrument to settle for 20 minutes. -
Page 23: Combining Instruments
Combining instruments When more channels are required than one instrument can offer, multiple instru- ments can be combined into a larger combined instrument. To combine two or more instruments, the instruments need to be connected to each other using special cables. The CMI (Combine Multiple Instruments) interface that is available by default on the Handyscope HS5 provides an easy way to couple multiple oscilloscopes to one combined oscilloscope. - Page 24 Figure 6.2: 3 Handyscope HS5s combined A six channel instrument is easily made by connecting three Handyscope HS5s to each other. When combining one or more Handyscope HS5s with Handyscope HS6 DIFFs, the daisy chained CMI bus must begin or end with a Handyscope HS6 DIFF. Addition- ally, the maximum sampling rate is limited to 100 MS/s at 14 bit resolution.
-
Page 25: Front Panel
Front panel Figure 7.1: Front panel CH1 and CH2 input connectors The CH1 and CH2 BNC connectors are the main inputs of the acquisition system. The outside of the BNC connectors is connected to the ground of the Handy- scope HS5. Connecting the outside of the BNC connector to a potential other than ground will result in a short circuit that may damage the device under test, the Handyscope HS5 and the computer. - Page 26 Chapter 7...
-
Page 27: Rear Panel
Rear panel Figure 8.1: Rear panel Power The Handyscope HS5 is powered through the USB. If the USB cannot supply enough power, it is possible to power the instrument externally. The Handyscope HS5 has two external power inputs located at the rear of the instrument: the dedi- cated power connector and a pin of the 9 pin D-sub extension connector. -
Page 28: Power Adapter
8.1.1 Power adapter The Handyscope HS5 comes with an external power adapter that can be con- nected to any mains power net that supplies 100 – 240 V , 50 – 60 Hz. The external power adapter can be connected to the dedicated power connector. Figure 8.3: Power adapter 8.1.2 USB power cable... -
Page 29: Extension Connector
Extension Connector Figure 8.5: Extension connector A 9 pin female D-sub connector is available at the back of the Handyscope HS5 containing the following signals: Description Description EXT 1 (LVTTL) EXT 2 (LVTTL) Power IN EXT 3 (LVTTL) Power OUT (see description) C SDA reserved C SCL... -
Page 30: Aux I/O
AUX I/O The Handyscope HS5 has two Auxiliary I/O connectors at the rear of the instru- ment, connected to the CMI bus. These can be used to combine multiple instru- ments to a single combined instrument to perform synchronized measurements. Figure 8.6: Auxiliary I/O connector Description Description... -
Page 31: Specifications
Specifications To achieve rated accuracy, allow the instrument to settle for 20 minutes. When subjected to extreme temperatures, allow extra time for internal temperatures to stabilize. Because of temperature compensated calibration, the Handyscope HS5 will settle within specified accuracy regardless of the surrounding temperature. Acquisition system Number of input channels 2 analog... -
Page 32: Acquisition System - Continued
Acquisition system - continued Sampling source Internal TCXO ±0.0001% Accuracy ◦ ◦ ±1 ppm over 0 Stability C to +55 ±1 ppm per year time base aging Time base aging External LVDS, on auxilary connectors Input range 10 MHz Trigger system System Digital, 2 levels Source... -
Page 33: Arbitrary Waveform Generator
Arbitrary Waveform Generator Output channel 1 analog, BNC DAC resolution 14 bit @ 240 MS/s -12 to +12 V (open circuit), frequency ≤ 10 MHz Output range -11 to +11 V (open circuit), frequency ≤ 20 MHz -9 to +9 V (open circuit), frequency ≤ 30 MHz -7.5 to +7.5 V (open circuit), frequency ≤... - Page 34 Arbitrary Waveform Generator - continued Signal characteristics Sine HS5-540 HS5-530 HS5-220 HS5-110 HS5-055 Frequency range: 1 µHz to 40 MHz 30 MHz 20 MHz 10 MHz 5 MHz Amplitude flattness Relative to 1 kHz ±0.1 dB <100 kHz ±0.15 dB <5 MHz ±0.3 dB (Amplitude ≤...
-
Page 35: Power
Power Power From USB or external input Consumption , 500 mA max Power adapter External Input 110 to 240 V , 50 to 60 Hz 0.85 A Max., 50 VA to 80 VA Output 5.5 V , 2 A Dimension Height 30 mm / 1.2”... -
Page 36: Environmental Conditions
9.11 Environmental conditions Operating ◦ ◦ Ambient temperature C to 55 Relative humidity 10 to 90% non condensing Storage ◦ ◦ Ambient temperature C to 70 Relative humidity 5 to 95% non condensing 9.12 Certifications and Compliances CE mark compliance RoHS EN 55011:2009/A1:2010 EN 55022:2006/A1:2007... - Page 37 If you have any suggestions and/or remarks regarding this manual, please contact: TiePie engineering Koperslagersstraat 37 8601 WL SNEEK The Netherlands Tel.: +31 515 415 416 Fax: +31 515 418 819 E-mail: support@tiepie.nl Site: www.tiepie.com...
