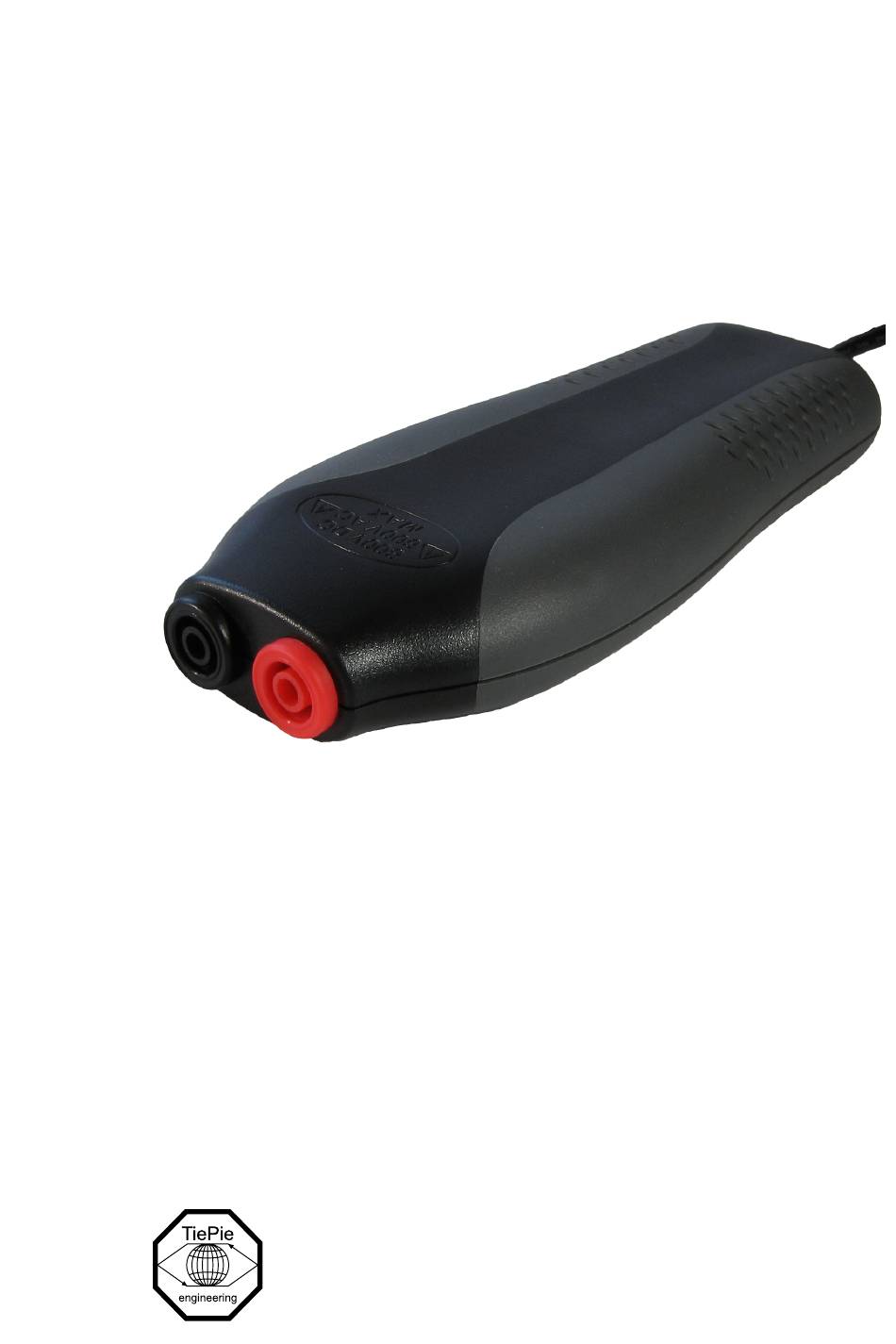

- Page 1 Handyprobe HP3 User manual TiePie engineering...
- Page 2 Copyright ©2018 TiePie engineering. All rights reserved. Revision 2.22, August 2018 Despite the care taken for the compilation of this user man- ual, TiePie engineering can not be held responsible for any damage resulting from errors that may appear in this man- ual.
-
Page 3: Table Of Contents
Contents 1 Safety 2 Declaration of conformity 3 Introduction 3.1 Differential input ......3.1.1 Differential test lead . - Page 4 6.11 Package contents ......
-
Page 5: Safety
Do not use the equipment if it does not operate properly. Have the equip- ment inspected by qualified service personal. If necessary, return the equip- ment to TiePie engineering for service and repair to ensure that safety fea- tures are maintained. - Page 6 Chapter 1...
-
Page 7: Declaration Of Conformity
Koperslagersstraat 37 8601 WL Sneek The Netherlands EC Declaration of conformity We declare, on our own responsibility, that the product Handyprobe HP3-5 Handyprobe HP3-20 Handyprobe HP3-100 for which this declaration is valid, is in compliance with EN 55011:2009/A1:2010 IEC 61000-6-1/EN 61000-6-1:2007... - Page 8 In order to avoid release of such substances into the environment and to reduce the use of natural resources, recycle the Handyprobe HP3 in an appropriate sys- tem that will ensure that most of the materials are reused or recycled appropri- ately.
-
Page 9: Introduction
The Handyprobe HP3 is a single channel, 10 bits measuring instrument with dif- ferential input with high input range. The Handyprobe HP3 is available in sev- eral models with different maximum sampling frequencies and different maximum... - Page 10 Figure 3.1: Single ended input Therefore the voltage that is measured with an oscilloscope with standard, single ended inputs is always measured between that specific point and ground. When the voltage is not referenced to ground, connecting a standard single ended oscilloscope input to the two points would create a short circuit between one of the points and ground, possibly damaging the circuit and the oscilloscope.
-
Page 11: Differential Test Lead
3.1.1 Differential test lead The Handyprobe HP3 comes with a special differential test lead. This test lead is specially designed to ensure a good CMRR. The special heat resistant differential test lead provided with the Handyprobe HP3 is designed to be immune for noise from the surrounding environment. -
Page 12: Sample Frequency
Figure 3.3: Sampling The sine wave in figure is sampled at the dot positions. By connecting the adjacent samples, the original signal can be reconstructed from the samples. You can see the result in figure 3.4. Figure 3.4: ”connecting” the samples Sample frequency The rate at which the samples are taken is called the sampling frequency, the number of samples per second. -
Page 13: Aliasing
Figure 3.5: The effect of the sampling frequency The sampling frequency must be higher than 2 times the highest frequency in the input signal. This is called the Nyquist frequency. Theoretically it is possible to reconstruct the input signal with more than 2 samples per period. In practice, 10 to 20 samples per period are recommended to be able to examine the signal thoroughly. -
Page 14: Digitizing
Figure 3.6: Aliasing In figure 3.6, the green input signal (top) is a triangular signal with a frequency of 1.25 kHz. The signal is sampled with a frequency of 1 kHz. The corresponding sampling interval is 1/1000Hz = 1ms. The positions at which the signal is sampled are depicted with the blue dots. -
Page 15: Signal Coupling
1024 = 0.3906 mV. Signal coupling The Handyprobe HP3 has two different settings for the signal coupling: AC and DC. In the setting DC, the signal is directly coupled to the input circuit. All signal components available in the input signal will arrive at the input circuit and will be measured. - Page 16 Chapter 3...
-
Page 17: Driver Installation
Introduction To operate a Handyprobe HP3, a driver is required to interface between the mea- surement software and the instrument. This driver takes care of the low level communication between the computer and the instrument, through USB. When... - Page 18 When drivers were already installed, the install utility will remove them before installing the new driver. To remove the old driver successfully, it is essential that the Handyprobe HP3 is disconnected from the computer prior to starting the driver install utility.
- Page 19 Figure 4.3: Driver install: Finished Driver installation...
- Page 20 Chapter 4...
-
Page 21: Hardware Installation
Power the instrument The Handyprobe HP3 is powered by the USB, no external power supply is re- quired. Only connect the Handyprobe HP3 to a bus powered USB port, otherwise it may not get enough power to operate properly. - Page 22 Chapter 5...
-
Page 23: Specifications
Specifications Acquisition system Number of input channels 1 analog Connector Isolated 4mm banana sockets Type Differential Resolution 10 bit Amplitude Accuracy 0.3% of full scale Ranges 200 mV to 800 V full scale Coupling AC/DC Impedance 2.1 MΩ / 15 pF Protection 600 V CAT II;... -
Page 24: Power
Power Power from USB port Consumption , 400 mA max Physical Instrument height 25 mm / 1.0” Instrument length 177 mm / 6.9” Instrument width 68 mm / 2.7” Weight 290 gram / 10.2 ounce USB cord length 1.8 m / 71” Test lead length 1.9 m / 75”... -
Page 25: Measure Lead
5 x 3 rings, various colors Suitable instrument Handyprobe HP3 6.11 Package contents The Handyprobe HP3 is available as standard set and can be delivered with option PS Professional Set. See below for more details. Professional Set Container BB271 Carry case... - Page 26 Chapter 6...
- Page 27 If you have any suggestions and/or remarks regarding this manual, please contact: TiePie engineering Koperslagersstraat 37 8601 WL SNEEK The Netherlands Tel.: +31 515 415 416 Fax: +31 515 418 819 E-mail: support@tiepie.nl Site: www.tiepie.com...
